Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-07-D-60.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,013 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 5.00' (1.52m) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TFSD-18-28-H-06.00-S.050" TIGER EYE DOUBLE ROW DISCR |
4,680 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 36 | 2 | 0.050" (1.27mm) | - | 0.500' (152.40mm, 6.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|

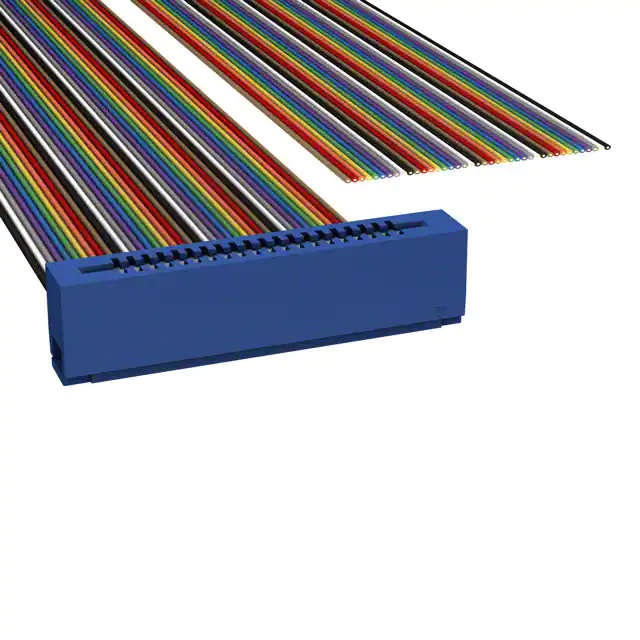

C1EXG-4036MIDC CABLE - CCE40G/AE40M/X |
3,362 |
|
Datasheet |
- | Bulk | Active | Card Edge to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|

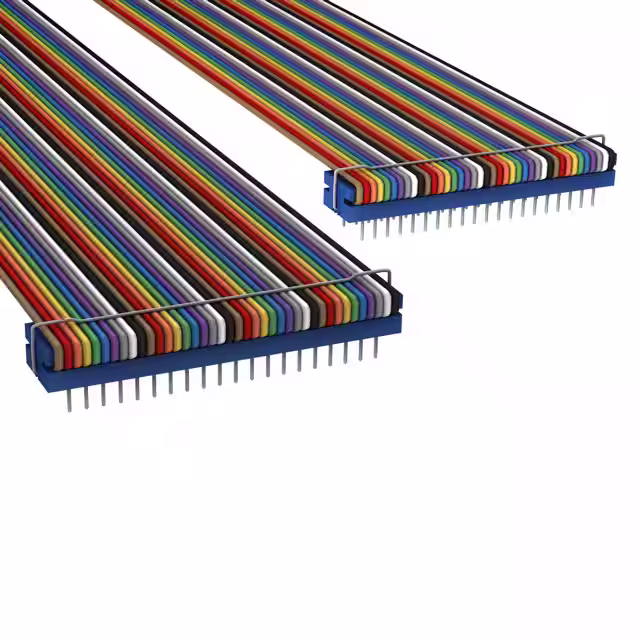

C0RRS-4036MDIP CABLE - CDR40S/AE40M/CDR40S |
1,773 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|

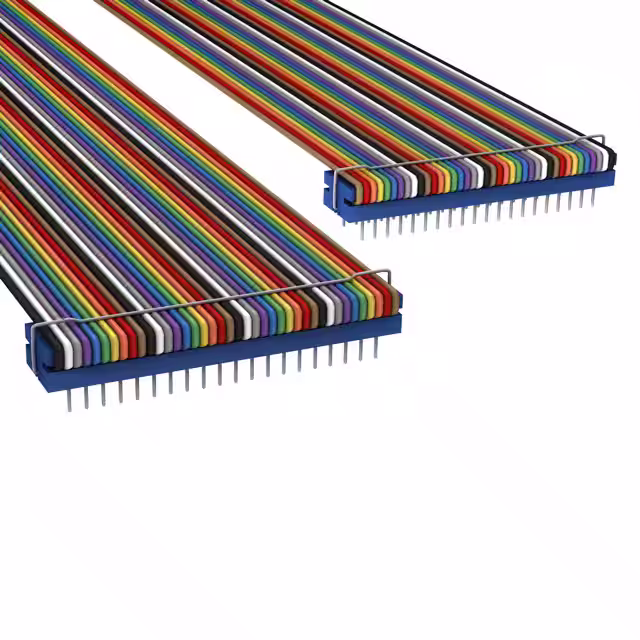

C6RRS-4036MDIP CABLE - CDR40S/AE40M/CDR40S |
1,778 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
C8RRS-4036MDIP CABLE - CDR40S/AE40M/CDR40S |
2,574 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
FFMD-24-T-06.00-01-N.050 CABLE PLUG |
2,533 |
|
- |
Tiger Eye™ FFMD | Bulk | Active | Socket to Plug | 48 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
FFMD-25-T-03.85-01-N.050 CABLE PLUG |
3,946 |
|
- |
Tiger Eye™ FFMD | Bulk | Active | Socket to Plug | 50 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.321' (97.79mm, 3.85") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
TCSD-22-D-06.00-01-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,131 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 44 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
HCMD-10-S-72.00-02IDC SOCKET AND TERMINAL CABLE AS |
2,817 |
|
Datasheet |
HCM | Bulk | Active | Plug to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
PMSD-10-16-K-12.00-D-LDS.165" POWER MATE DOUBLE ROW DISC |
3,691 |
|
Datasheet |
Power Mate® PMSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
SESDT-20-32-G-04.0-L30.80 MM DOUBLE ROW TIGER EYE DIS |
1,005 |
|
Datasheet |
Tiger Eye™ SESDT | Bulk | Active | Socket to Socket | 40 | 2 | 0.031" (0.80mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
PMSD-10-16-K-12.00-D-LDX.165" POWER MATE DOUBLE ROW DISC |
4,951 |
|
Datasheet |
Power Mate® PMSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
PMSD-10-16-K-12.00-D-LUS.165" POWER MATE DOUBLE ROW DISC |
4,742 |
|
Datasheet |
Power Mate® PMSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
SESDT-20-32-G-04.0-L10.80 MM DOUBLE ROW TIGER EYE DIS |
3,855 |
|
Datasheet |
Tiger Eye™ SESDT | Bulk | Active | Socket to Socket | 40 | 2 | 0.031" (0.80mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
FFMD-18-T-10.00-01-F-N-B08.050" TIGER EYE IDC RIBBON CABLE |
4,053 |
|
Datasheet |
Tiger Eye™ FFMD | Bulk | Active | Socket to Plug, Reversed | 36 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.833' (254.00mm, 10.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
SESDT-20-32-G-04.0-L20.80 MM DOUBLE ROW TIGER EYE DIS |
3,697 |
|
Datasheet |
Tiger Eye™ SESDT | Bulk | Active | Socket to Socket | 40 | 2 | 0.031" (0.80mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSD-18-24-L-09.50-D-K-LUSMINI-MATE CABLE ASSEMBLY, 0.100" |
1,328 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 36 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S2SDT-10-24-S-24.00-SR2.00 MM TIGER EYE DOUBLE ROW DIS |
2,551 |
|
Datasheet |
Tiger Eye™ S2SDT | Bulk | Active | Socket to Individual Wire Leads | 20 | 2 | 0.079" (2.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
482W101-40-CA-003IDC RIBBON CABLE ASSEMBLY 3' 40C |
3,772 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 40 | 1 | 0.025" (0.64mm) | 0.025" (0.64mm) | 3.00' (914.40mm) | Friction Lock | Clear, Ribbon | Unshielded | - | IDC | - | - |
