Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-25-D-02.20-01-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,931 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.183' (55.88mm, 2.20") | Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-18-D-16.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,746 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 36 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.33' (406.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
MMSDT-14-20-F-14.00-D-P-LDXMINI-MATE CABLE ASSEMBLY, FEP |
1,937 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Socket | 28 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
HCMD-15-T-24.00-02IDC SOCKET AND TERMINAL CABLE AS |
4,448 |
|
Datasheet |
HCM | Bulk | Active | Socket to Plug | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
HCMD-15-T-24.00-01IDC SOCKET AND TERMINAL CABLE AS |
3,428 |
|
Datasheet |
HCM | Bulk | Active | Socket to Plug | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
S2SDT-15-28-L-03.60-DR-NDX2.00 MM TIGER EYE DOUBLE ROW DIS |
2,798 |
|
Datasheet |
Tiger Eye™ S2SDT | Bulk | Active | Socket to Socket | 30 | 2 | 0.079" (2.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
FMTP-06-D-08.77-01-R.050" TIGER EYE IDC TWISTED PAIR |
2,707 |
|
Datasheet |
Tiger Eye™ FMTP | Bulk | Active | Plug to Plug, Reversed | 12 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | - | - | Multiple, Twisted Pair (Round) | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
S1SDT-08-28-GF-30.00-L3MICRO MATE DOUBLE ROW DISCRETE T |
4,140 |
|
Datasheet |
Micro Mate™ S1SDT | Bulk | Active | Socket to Socket | 16 | 2 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TCSD-20-D-12.15-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,582 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.01' (308.61mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
SFSD-25-28-G-06.30-DR-NDXDOUBLE ROW DISCRETE WIRE ASSEMBL |
4,490 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 50 | 2 | 0.050" (1.27mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSD-25-28-G-06.30-DR-NUXDOUBLE ROW DISCRETE WIRE ASSEMBL |
2,704 |
|
Datasheet |
Tiger Eye™ SFSD | Bag | Active | Socket to Socket | 50 | 2 | 0.050" (1.27mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|

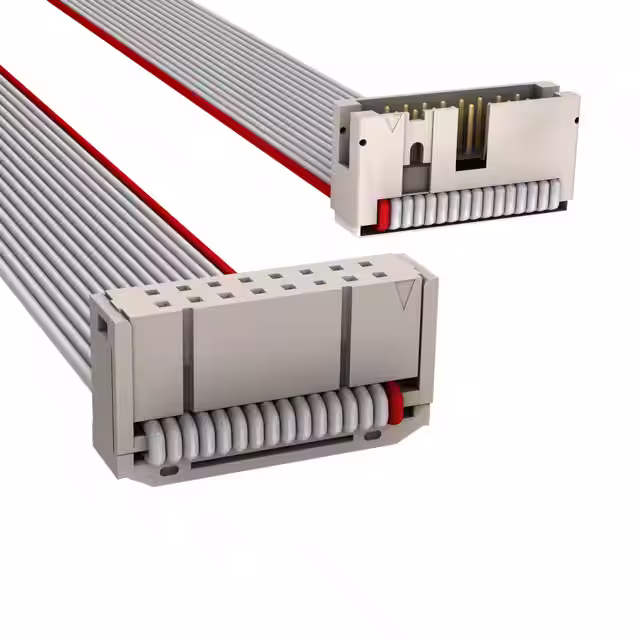

M3BRK-1636JIDC CABLE - MSR16K/MC16G/MPR16K |
3,050 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief (Socket); Polarizing Key, Strain Relief (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3DRK-1636JIDC CABLE - MKR16K/MC16G/MPR16K |
2,137 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

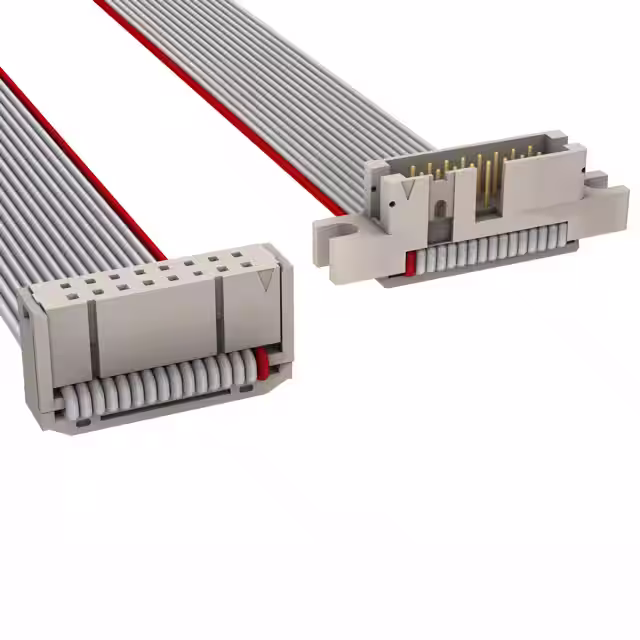

M3BYK-1636JIDC CABLE - MSR16K/MC16G/MPD16K |
4,537 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief (Socket); Flange, Polarizing Key, Strain Relief (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3DYK-1636JIDC CABLE - MKR16K/MC16G/MPD16K |
3,276 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key, Strain Relief (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-15-S-48.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,770 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 4.00' (1.22m) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
SFSD-14-28-G-10.00-D-NDX.050 SOCKET DISCRETE CABLE ASSEM |
2,019 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 28 | 2 | 0.050" (1.27mm) | - | 0.833' (254.00mm, 10.00") | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSD-14-30-G-10.00-D-NDS.050 SOCKET DISCRETE CABLE ASSEM |
3,788 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 28 | 2 | 0.050" (1.27mm) | - | 0.833' (254.00mm, 10.00") | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSD-25-28-G-12.00-D-NDS.050 SOCKET DISCRETE CABLE ASSEM |
3,884 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 50 | 2 | 0.050" (1.27mm) | - | 1.00' (304.80mm) | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSD-25-28-G-12.00-D-NDX.050 SOCKET DISCRETE CABLE ASSEM |
3,055 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 50 | 2 | 0.050" (1.27mm) | - | 1.00' (304.80mm) | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
