Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-13-D-20.00-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,052 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.67' (508.00mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
MPSS-04-16-L-78.74-SR5.00 MM POWERSTRIP/30 A POWER CA |
2,581 |
|
Datasheet |
PowerStrip™ 30 MPSS | Bulk | Active | Socket to Individual Wire Leads | 4 | 1 | 0.197" (5.00mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSD-15-30C-G-32.00-DR-NDSDOUBLE ROW DISCRETE WIRE ASSEMBL |
2,752 |
|
Datasheet |
Tiger Eye™ SFSD | Bag | Active | Socket to Socket | 30 | 2 | 0.050" (1.27mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCSD-10-D-40.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,015 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 3.33' (1.02m) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-40.00-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,819 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 3.33' (1.02m) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
SFSD-20-30-G-20.00-DR-NDX.050 SOCKET DISCRETE CABLE ASSEM |
3,053 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 40 | 2 | 0.050" (1.27mm) | - | 1.67' (508.00mm) | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-25-D-18.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,809 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S2SDT-10-24-L-20.00-SS2.00 MM TIGER EYE DOUBLE ROW DIS |
3,887 |
|
Datasheet |
Tiger Eye™ S2SDT | Bag | Active | Socket to Individual Wire Leads | 20 | 2 | 0.079" (2.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-25-D-18.00-01-RW-R2.00 MM IDC RIBBON CABLE ASSEMBL |
2,010 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
M3AKK-1636JIDC CABLE - MSC16K/MC16G/MPK16K |
1,386 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

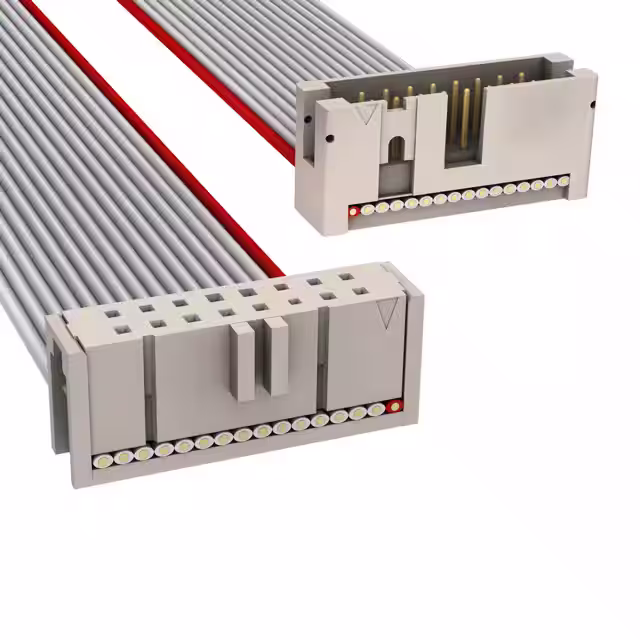

M3CKK-1636JIDC CABLE - MKC16K/MC16G/MPK16K |
3,900 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

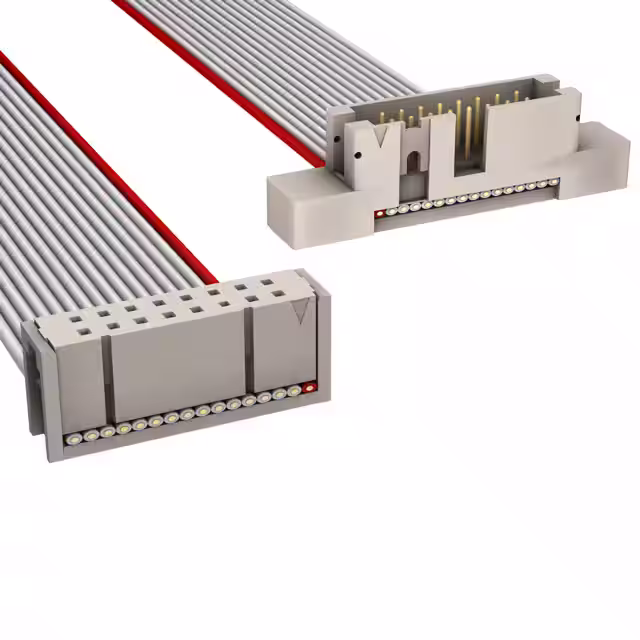

M3AWK-1636JIDC CABLE - MSC16K/MC16G/MPL16K |
2,343 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3CWK-1636JIDC CABLE - MKC16K/MC16G/MPL16K |
3,017 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A1RXA-2036MIDC CABLE- APR20A/ AE20M / X |
3,056 |
|
Datasheet |
- | Bulk | Obsolete | Plug to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-20-D-05.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
1,228 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-20-D-05.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,972 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-20-D-05.00-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,177 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-20-D-05.00-01-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,971 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
HCMD-06-D-48.00-01-S12IDC SOCKET AND TERMINAL CABLE AS |
4,323 |
|
Datasheet |
HCM | Bulk | Active | Plug to Plug | 12 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
HCMD-20-D-05.00-02IDC SOCKET AND TERMINAL CABLE AS |
3,704 |
|
Datasheet |
HCM | Bulk | Active | Plug to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
