Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMSD-10-24C-F-12.00-D-K-KDS.100" MINI MATE UNIVERSAL DOUBLE |
4,887 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | - | - | Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | - |
|
|
SMSD-10-24C-F-12.00-D-KDS.100" MINI MATE UNIVERSAL DOUBLE |
3,484 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | - | - | Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | - |
|
|
SMSD-10-24C-F-12.00-D-K-KUS.100" MINI MATE UNIVERSAL DOUBLE |
1,758 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | - | - | Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | - |
|
|
SMSD-10-24C-F-12.00-D-K-KUX.100" MINI MATE UNIVERSAL DOUBLE |
1,340 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | - | - | Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | - |
|
A3CKB-1636GIDC CABLE - AKC16B/AE16G/APK16B |
4,424 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
FFMD-10-D-06.00-01-L.050 CABLE PLUG |
1,101 |
|
Datasheet |
Tiger Eye™ FFMD | Bulk | Active | Plug to Plug | 20 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCSD-25-D-13.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,234 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.08' (330.00mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-25-D-13.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,865 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.08' (330.00mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
33152430500379HAR-FLEX FEMALE 80PIN CABLE ASSE |
4,627 |
|
Datasheet |
har-flex® | Bulk | Active | Socket to Socket, Reversed | 80 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 1.64' (500.00mm) | - | Gray, Ribbon | Unshielded | - | IDC | - | - |
|
|
33152430500149HAR-FLEX FEMALE 80PIN CABLE ASSE |
2,540 |
|
Datasheet |
har-flex® | Bulk | Active | Socket to Socket, Reversed | 12 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 1.64' (500.00mm) | - | Gray, Ribbon | Unshielded | - | IDC | - | - |
|
M3TTK-2618JIDC CABLE - MSD26K/MC26G/MSD26K |
1,817 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

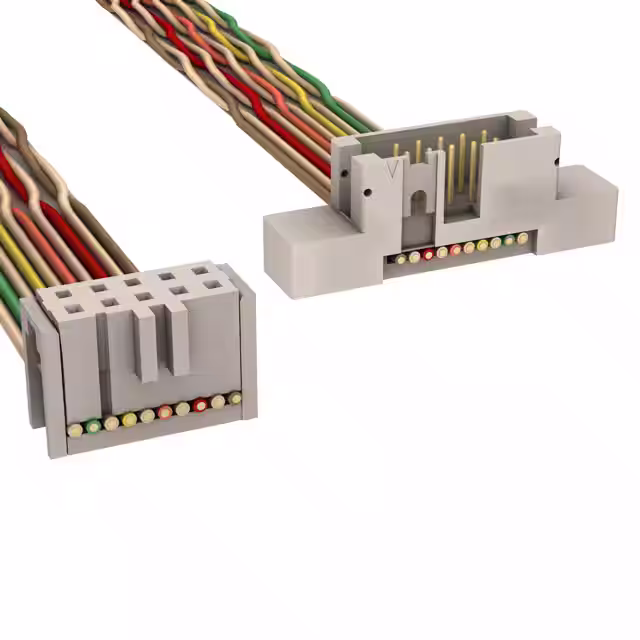

M3CWK-1060KIDC CABLE - MKC10K/MC10F/MPL10K |
4,467 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 5.00' (1.52m) | Polarizing Key (Socket); Flange, Polarizing Key (Plug) | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3CKK-1060KIDC CABLE - MKC10K/MC10F/MPK10K |
3,884 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 5.00' (1.52m) | Polarizing Key | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

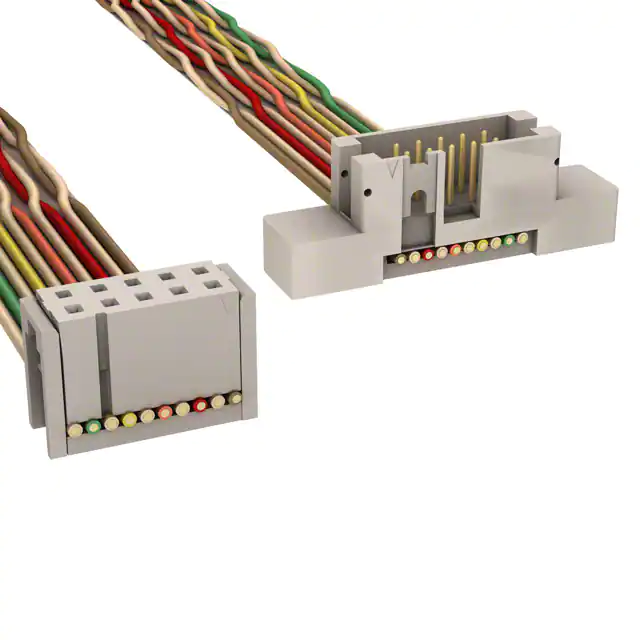

M3AWK-1060KIDC CABLE - MSC10K/MC10F/MPL10K |
1,021 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 5.00' (1.52m) | Flange, Polarizing Key | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

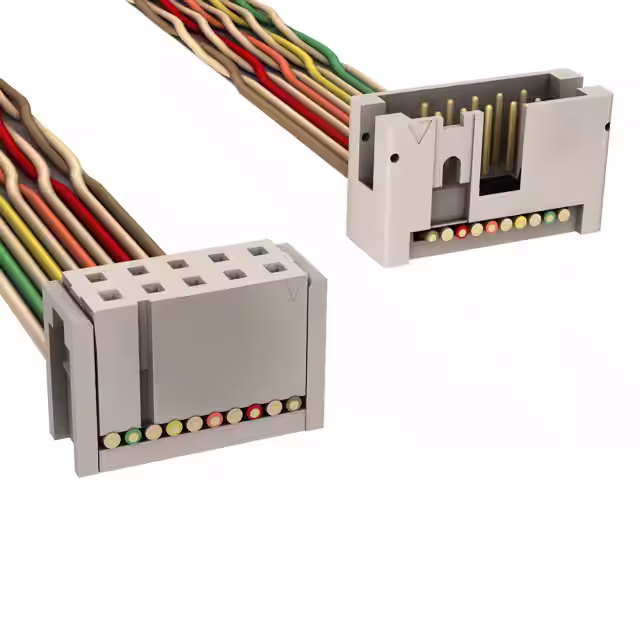

M3AKK-1060KIDC CABLE - MSC10K/MC10F/MPK10K |
4,453 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 5.00' (1.52m) | - | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-25-S-25.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,202 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 2.08' (635.00mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-15-D-24.00-01-F-N-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,651 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 2.00' (609.60mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
SFSD-10-28-G-06.50-DS-NUS.050 SOCKET DISCRETE CABLE ASSEM |
3,648 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.050" (1.27mm) | - | 0.542' (165.10mm, 6.50") | Flange, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSD-15-28-H-18.00-DR-NUS.050 SOCKET DISCRETE CABLE ASSEM |
3,289 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.050" (1.27mm) | - | 1.50' (457.20mm) | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
SFSD-15-30-H-18.00-DR-NDX.050 SOCKET DISCRETE CABLE ASSEM |
4,503 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.050" (1.27mm) | - | 1.50' (457.20mm) | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
