Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TFSD-07-28-G-50.00-S.050" TIGER EYE DOUBLE ROW DISCR |
2,804 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 14 | 2 | 0.050" (1.27mm) | - | 4.17' (1.27m) | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-07-30-H-08.00-D-NUX.050" TIGER EYE DOUBLE ROW DISCR |
3,523 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Plug | 14 | 2 | 0.050" (1.27mm) | - | 0.667' (203.20mm, 8.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|

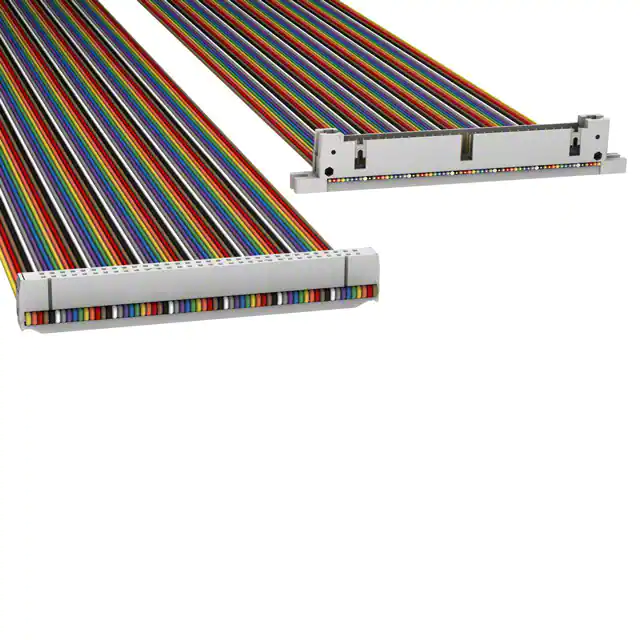

H3BWH-6436MIDC CBL - HHSR64H/AE64M/HHPL64H |
4,201 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
M6MMH-4036RIDC CABLE - MDM40H/MC40M/MDM40H |
1,437 |
|
- |
- | Bulk | Obsolete | PCB to PCB | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
|
M8MMH-4036RIDC CABLE - MDM40H/MC40M/MDM40H |
1,585 |
|
- |
- | Bulk | Obsolete | PCB to PCB, Reversed | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-15-D-13.50-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,614 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.12' (342.90mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
IDSS-04-S-84.00INSULATION DISPLACEMENT SOCKET C |
3,315 |
|
- |
IDSS | Bulk | Active | Socket to Cable | 4 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSD-06-D-65.00-RSLIM BODY DOUBLE-ROW IDC SOCKET |
3,734 |
|
Datasheet |
IDSD | Bulk | Active | Socket to Socket, Reversed | 12 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCSD-17-D-08.90-01IDC SOCKET CABLE ASSEMBLIES, 2.0 |
3,724 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.742' (226.16mm, 8.90") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
FFMD-17-T-07.97-01-N-R.050" TIGER EYE IDC RIBBON CABLE |
2,417 |
|
Datasheet |
Tiger Eye™ FFMD | Bulk | Active | Socket to Plug, Reversed | 34 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | - | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
HCMD-12-T-04.00-01-S-N-RIDC SOCKET AND TERMINAL CABLE AS |
3,916 |
|
Datasheet |
HCM | Bulk | Active | Socket to Plug, Reversed | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
C3EEG-2006GIDC CABLE - CCE20G/AE20G/CCE20G |
3,330 |
|
Datasheet |
- | Bulk | Active | Card Edge to Card Edge | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
TCSD-20-D-02.36-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,903 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.197' (59.94mm, 2.36") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TFSD-12-28-G-03.25-T-NDS.050" TIGER EYE DOUBLE ROW DISCR |
4,526 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Socket to Plug | 24 | 2 | 0.050" (1.27mm) | - | 0.271' (82.55mm, 3.25") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-10-28-F-36.00-S.050" TIGER EYE DOUBLE ROW DISCR |
1,919 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 20 | 2 | 0.050" (1.27mm) | - | 3.00' (914.40mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TCSD-15-D-13.54-01-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
3,020 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.13' (343.92mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
FFMD-17-T-08.00-01-N-RW.050 CABLE PLUG |
4,343 |
|
- |
Tiger Eye™ FFMD | Bulk | Active | Socket to Plug | 34 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.667' (203.20mm, 8.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
FFMD-17-T-08.00-01-N-RW-R.050 CABLE PLUG |
3,653 |
|
- |
Tiger Eye™ FFMD | Bulk | Active | Socket to Plug, Reversed | 34 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.667' (203.20mm, 8.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
TCSD-13-S-36.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,240 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-15-D-13.58-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,239 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.13' (344.93mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
