Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
33152430100177HAR-FLEX FEMALE 20PIN CABLE ASSE |
4,333 |
|
- |
har-flex® | Bulk | Active | Socket to Socket, Reversed | 20 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.328' (100.00mm, 3.94") | - | Gray, Ribbon | Unshielded | - | IDC | - | - |
|
A3CKB-2036GIDC CABLE - AKC20B/AE20G/APK20B |
1,020 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-D-52.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,103 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 4.33' (1.32m) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-08-D-52.00-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,454 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 4.33' (1.32m) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-20-D-17.50-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,960 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.46' (444.50mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-25-D-12.00-01-SR2MM DOUBLE ROW MALE IDC ASSEMBLY |
3,441 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S1SS-14-28C-GF-10.00-L3MICRO MATE SINGLE ROW DISCRETE W |
3,325 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 14 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TFSD-10-28-G-07.00-D-NDX.050" TIGER EYE DOUBLE ROW DISCR |
1,304 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Plug | 20 | 2 | 0.050" (1.27mm) | - | 0.583' (177.80mm, 7.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSS-25-28-G-12.00-S.050" TIGER EYE SINGLE ROW DISCR |
3,543 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 25 | 1 | 0.050" (1.27mm) | - | 1.00' (304.80mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-10-28-G-07.00-D-NDS.050" TIGER EYE DOUBLE ROW DISCR |
4,806 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Plug | 20 | 2 | 0.050" (1.27mm) | - | 0.583' (177.80mm, 7.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-10-28-G-07.00-D-NUX.050" TIGER EYE DOUBLE ROW DISCR |
4,400 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Plug | 20 | 2 | 0.050" (1.27mm) | - | 0.583' (177.80mm, 7.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|

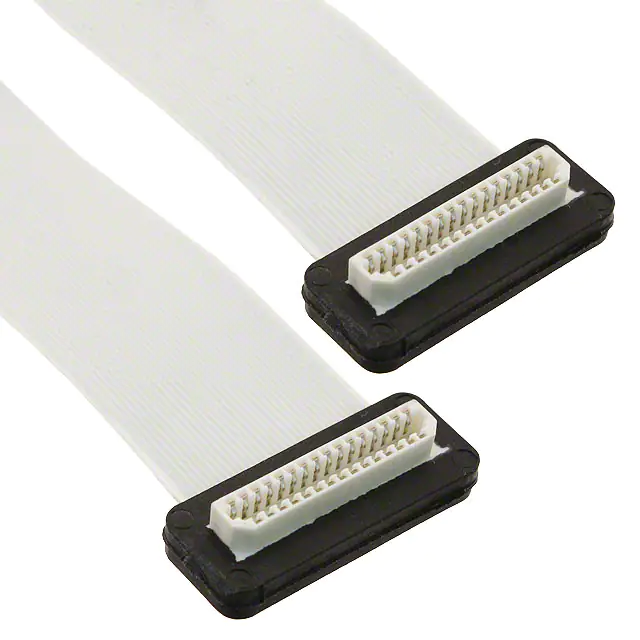

PS563-AB-0051-SCABLE ASSY 31POS RCPT-RCPT 2" |
2,583 |
|
- |
PS-563 | Bulk | Obsolete | Socket to Socket | 31 | 2 | 0.039" (1.00mm) | - | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | Display Cable | IDC | - | - |
|
|
PS563-AB-0102-SCABLE ASSY 31POS RCPT-RCPT 4" |
2,713 |
|
- |
PS-563 | Bulk | Obsolete | Socket to Socket | 31 | 2 | 0.039" (1.00mm) | - | 0.333' (101.60mm, 4.00") | - | Gray, Ribbon | Unshielded | Display Cable | IDC | - | - |
|
|
PS563-AB-0152-SCABLE ASSY 31POS RCPT-RCPT 6" |
4,820 |
|
- |
PS-563 | Bulk | Obsolete | Socket to Socket | 31 | 2 | 0.039" (1.00mm) | - | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Display Cable | IDC | - | - |
|
|
1431-BYY0645LNCABLE ASSY 31POS RCPT-RCPT 8" |
2,960 |
|
- |
PS-563 | Bulk | Obsolete | Socket to Socket | 31 | 2 | 0.039" (1.00mm) | - | 0.667' (203.20mm, 8.00") | - | Gray, Ribbon | Unshielded | Display Cable | IDC | - | - |
|
|
1431-BYY0800LNCABLE ASSY 31POS RCPT-RCPT 10" |
3,342 |
|
- |
PS-563 | Bulk | Obsolete | Socket to Socket | 31 | 2 | 0.039" (1.00mm) | - | 0.833' (254.00mm, 10.00") | - | Gray, Ribbon | Unshielded | Display Cable | IDC | - | - |
|
|
PS563-AB-0305-SCABLE ASSY 31POS RCPT-RCPT 12" |
2,829 |
|
- |
PS-563 | Bulk | Obsolete | Socket to Socket | 31 | 2 | 0.039" (1.00mm) | - | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | Display Cable | IDC | - | - |
|
PS564-AB-0051-SCABLE ASSY 41POS RCPT-RCPT 2" |
3,121 |
|
- |
PS-564 | Bulk | Obsolete | Socket to Socket | 41 | 2 | 0.039" (1.00mm) | - | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | Display Cable | IDC | - | - |
|
|
PS564-AB-0102-SCABLE ASSY 41POS RCPT-RCPT 4" |
2,118 |
|
- |
PS-564 | Bulk | Obsolete | Socket to Socket | 41 | 2 | 0.039" (1.00mm) | - | 0.333' (101.60mm, 4.00") | - | Gray, Ribbon | Unshielded | Display Cable | IDC | - | - |
|
|
PS564-AB-0152-SCABLE ASSY 41POS RCPT-RCPT 6" |
4,226 |
|
- |
PS-564 | Bulk | Obsolete | Socket to Socket | 41 | 2 | 0.039" (1.00mm) | - | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Display Cable | IDC | - | - |
