Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-15-D-02.37-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,571 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.197' (60.20mm, 2.37") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-15-D-02.38-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,069 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.198' (60.45mm, 2.38") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-22-D-04.72-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,635 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 44 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.393' (120.00mm, 4.72") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-22-D-04.72-01-F-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,969 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 44 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.393' (120.00mm, 4.72") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
HCMD-10-T-03.00-01-S-GIDC SOCKET AND TERMINAL CABLE AS |
4,938 |
|
Datasheet |
HCM | Bulk | Active | Socket to Plug | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
HCMD-08-D-07.88-02-S-RIDC SOCKET AND TERMINAL CABLE AS |
3,785 |
|
Datasheet |
HCM | Bulk | Active | Plug to Plug, Reversed | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
T2SDT-10-28-L-04.00-D-NUS2.00 MM TIGER EYE DOUBLE ROW DIS |
3,113 |
|
Datasheet |
Tiger Eye™ T2SDT | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-05-30-H-03.25-D-NDS.050" TIGER EYE DOUBLE ROW DISCR |
3,209 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Plug | 10 | 2 | 0.050" (1.27mm) | - | 0.271' (82.55mm, 3.25") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TFSD-07-28-H-24.00-SL.050" TIGER EYE DOUBLE ROW DISCR |
1,705 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 14 | 2 | 0.050" (1.27mm) | - | 2.00' (609.60mm) | Friction Lock | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TFSD-05-28-H-03.25-D-NUS.050" TIGER EYE DOUBLE ROW DISCR |
1,899 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Plug | 10 | 2 | 0.050" (1.27mm) | - | 0.271' (82.55mm, 3.25") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TFSD-07-28-F-24.00-T-NDS.050" TIGER EYE DOUBLE ROW DISCR |
3,383 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Socket to Plug | 14 | 2 | 0.050" (1.27mm) | - | 2.00' (609.60mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TFSD-05-28-H-03.30-DL-NUX.050" TIGER EYE DOUBLE ROW DISCR |
2,216 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Plug | 10 | 2 | 0.050" (1.27mm) | - | 0.275' (83.82mm, 3.30") | Friction Lock | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TFSD-05-30-H-03.25-D-NUS.050" TIGER EYE DOUBLE ROW DISCR |
3,932 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Plug | 10 | 2 | 0.050" (1.27mm) | - | 0.271' (82.55mm, 3.25") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TFSD-05-28-H-03.25-D-NUX.050" TIGER EYE DOUBLE ROW DISCR |
4,012 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Plug | 10 | 2 | 0.050" (1.27mm) | - | 0.271' (82.55mm, 3.25") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|

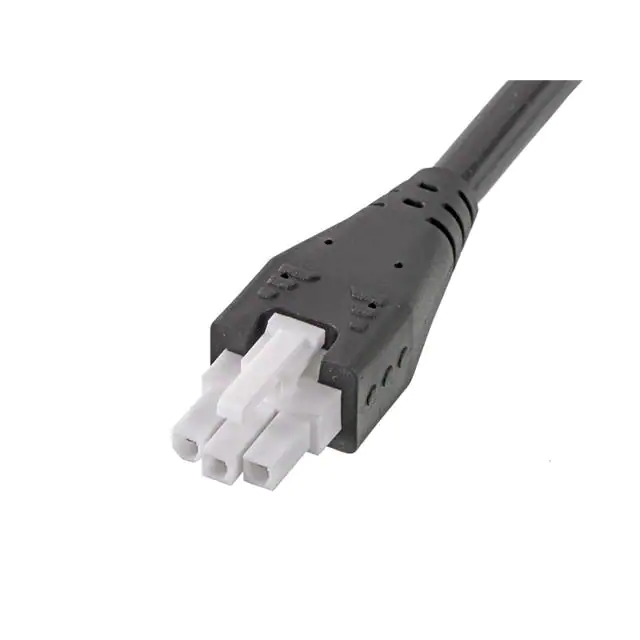

21715903303 CKT OVERMOLD 3M F-P |
3,267 |
|
Datasheet |
Mini-Fit Jr 217159 | Bulk | Active | Socket to Cable | 3 | 1 | 0.165" (4.19mm) | - | 9.8' (3.00m) | Latch Lock | Black, Individual (Round) | Unshielded | - | Crimp | Tin | 35.0µin (0.89µm) |
|
M3DDA-6018RIDC CABLE - MKR60A/MC60M/MKR60A |
3,296 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 60 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3BBK-1606RIDC CABLE - MSR16K/MC16M/MSR16K |
1,682 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3DDK-1606RIDC CABLE - MKR16K/MC16M/MKR16K |
1,523 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3UUK-1036RIDC CABLE - MKS10K/MC10M/MKS10K |
1,570 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A3KKA-1006MIDC CABLE- APK10A/ AE10M / APK10 |
2,279 |
|
Datasheet |
- | Bulk | Obsolete | Plug to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
