Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-10-D-06.25-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,536 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.521' (158.75mm, 6.25") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-06.25-01-N-RW-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,210 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.521' (158.75mm, 6.25") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-S-30.00-01-N-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,442 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 2.50' (762.00mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-09.75-012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,580 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.813' (247.65mm, 9.75") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-09.75-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,577 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.813' (247.65mm, 9.75") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-12-D-03.54-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,143 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.295' (89.92mm, 3.54") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-12-D-03.55-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,985 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.295' (90.00mm, 3.54") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-20-D-03.00-01-F-P37-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,496 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-04-D-40.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,525 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSD-12-D-17.20-T-RINSULATION DISPLACEMENT TERMINAL |
3,137 |
|
- |
IDSD | Bulk | Active | Socket to Socket, Reversed | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.43' (436.88mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
IDSD-17-D-02.00INSULATION DISPLACEMENT TERMINAL |
4,112 |
|
- |
IDSD | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.167' (50.80mm, 2.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-17-T-04.20-012.00 MM IDC RIBBON CABLE ASSEMBL |
2,151 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TFSDT-05-28-F-36.00-S.050" TIGER EYE DOUBLE ROW DISCR |
1,418 |
|
Datasheet |
Tiger Eye™ TFSDT | Bulk | Active | Plug to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 3.00' (914.40mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
HCMS-14-D-03.00-01-SIDC SOCKET AND TERMINAL CABLE AS |
3,637 |
|
Datasheet |
HCM | Bulk | Active | Socket to Socket | 28 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
T2SD-08-24-L-08.00-D-NDS2.00 MM TIGER EYE DOUBLE ROW DIS |
4,930 |
|
Datasheet |
Tiger Eye™ T2SD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCSD-05-D-20.28-01-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
4,743 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TFSDT-05-28-G-07.87-D-NUX.050" TIGER EYE DOUBLE ROW DISCR |
3,924 |
|
Datasheet |
Tiger Eye™ TFSDT | Bulk | Active | Plug to Plug | 10 | 2 | 0.050" (1.27mm) | - | 0.656' (200.00mm, 7.87") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCSD-04-D-21.00-01IDC SOCKET CABLE ASSEMBLIES, 2.0 |
4,390 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.75' (533.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

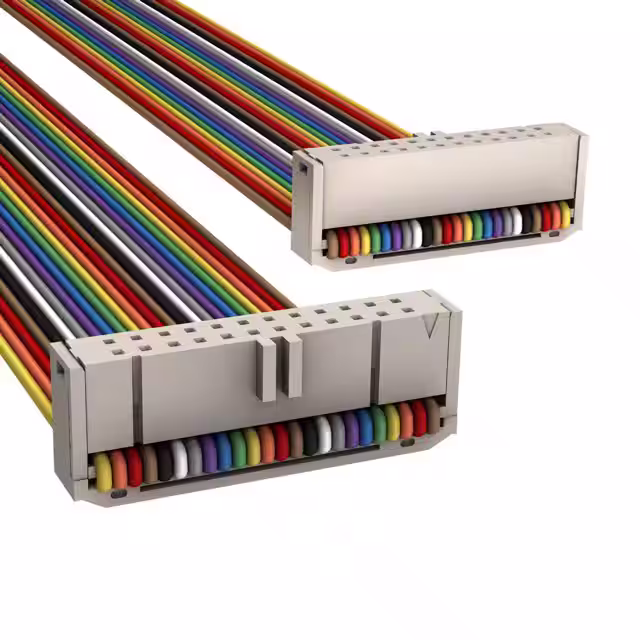

M3DDA-2436RIDC CABLE - MKR24A/MC24M/MKR24A |
1,179 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

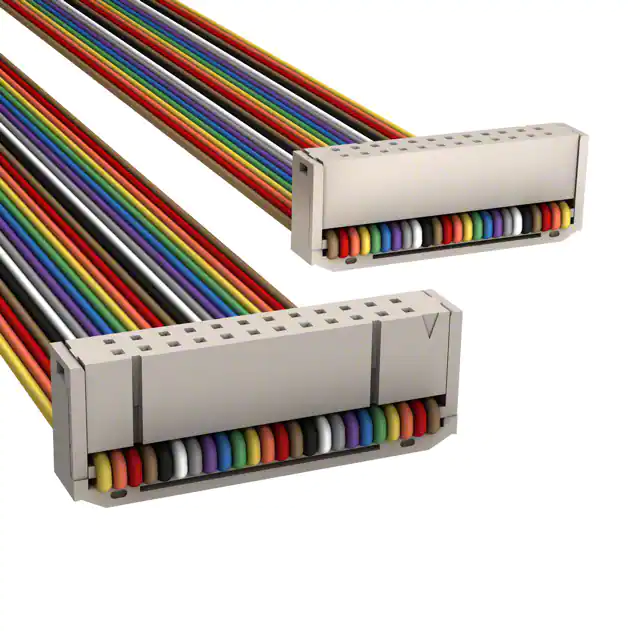

M3BBA-2436RIDC CABLE - MSR24A/MC24M/MSR24A |
3,727 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
