Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCMD-20-D-04.00-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
3,309 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSS-24-D-09.25SLIM BODY SINGLE-ROW IDC SOCKET |
1,466 |
|
Datasheet |
IDSS | Bulk | Active | Socket to Socket | 24 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
HCMD-12-D-04.00-01IDC SOCKET AND TERMINAL CABLE AS |
4,405 |
|
Datasheet |
HCM | Bulk | Active | Plug to Plug | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
T2SD-07-28-L-11.00-D-NDX2.00 MM TIGER EYE DOUBLE ROW DIS |
4,625 |
|
Datasheet |
Tiger Eye™ T2SD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
33152430500375HAR-FLEX FEMALE 26PIN CABLE ASSE |
4,911 |
|
Datasheet |
har-flex® | Bulk | Active | Socket to Socket, Reversed | 26 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 1.64' (500.00mm) | - | Gray, Ribbon | Unshielded | - | IDC | - | - |
|
|
A1CXA-6436GIDC CABLE-AKN64A/ AE64G / X |
1,682 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A1DXA-6436GIDC CABLE-AKP64A/ AE64G / X |
4,679 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A6MMT-4036GADM40T/AE40G/ADM40T |
1,348 |
|
Datasheet |
- | Bulk | Obsolete | DIP to DIP | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
|
A8MMT-4036GADM40T/AE40G/ADM40T |
3,702 |
|
Datasheet |
- | Bulk | Obsolete | DIP to DIP, Reversed | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|

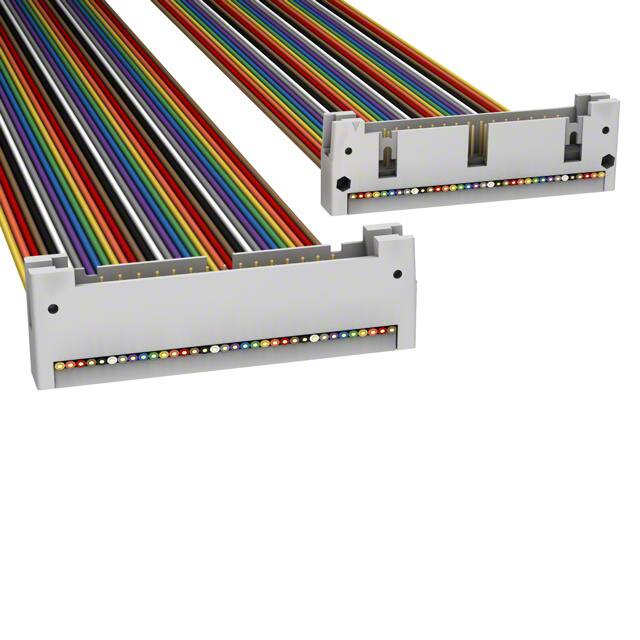

H3KKH-3436MIDC CBL - HHPK34H/AE34M/HHPK34H |
1,466 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

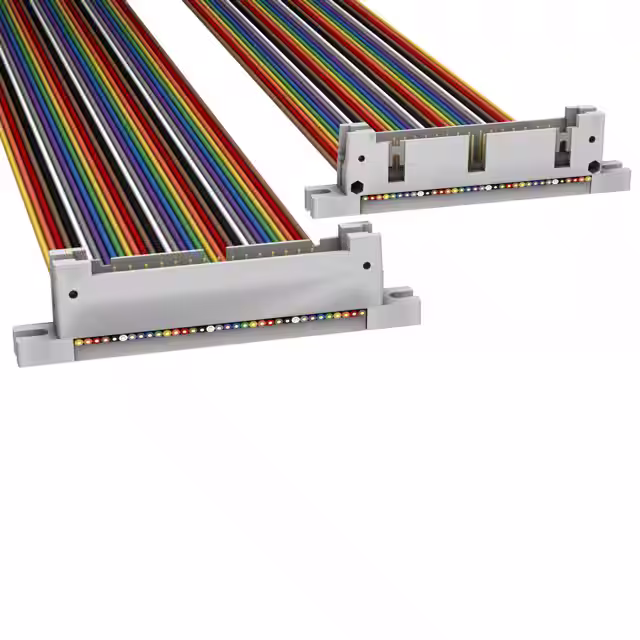

H3WWH-3436MIDC CBL - HHPL34H/AE34M/HHPL34H |
3,227 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-08-D-08.70-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,738 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.725' (220.98mm, 8.70") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-05.75-012MM DOUBLE ROW FEMALE IDC ASSEMB |
3,011 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.479' (146.05mm, 5.75") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-26.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,838 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 2.17' (660.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-07-D-16.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
3,157 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.33' (406.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-07-D-16.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,274 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.33' (406.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-07-D-16.00-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,898 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.33' (406.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-09.25-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,671 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.771' (234.95mm, 9.25") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-09-D-03.00-01-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,658 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 18 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-09-D-31.40-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,280 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 18 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
