Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-05-D-18.50-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,995 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.54' (469.90mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-08.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
3,031 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-08.00-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,170 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-08.00-01-N-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,758 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-08.00-01-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,281 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-13-S-19.70-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,130 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.64' (500.38mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-D-10.00-01-N-P012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,809 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-20-D-02.00-01-F-N-P012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,654 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
SFSD-20-28-F-06.00-D-NDX.050 SOCKET DISCRETE CABLE ASSEM |
1,845 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 40 | 2 | 0.050" (1.27mm) | - | 0.500' (152.40mm, 6.00") | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
TCMD-17-D-09.50-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,261 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TFSD-05-28-F-26.00-D-NUS.050" TIGER EYE DOUBLE ROW DISCR |
4,773 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Plug | 10 | 2 | 0.050" (1.27mm) | - | 2.17' (660.40mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
T2SD-10-24-S-12.00-S2.00 MM TIGER EYE DOUBLE ROW DIS |
4,082 |
|
Datasheet |
Tiger Eye™ T2SD | Bulk | Active | Socket to Individual Wire Leads | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-D-07.50-01-RIDC SOCKET CABLE ASSEMBLIES, 2.0 |
1,092 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.625' (190.50mm, 7.50") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
33152430100102HAR-FLEX FEMALE 12PIN CABLE ASSE |
4,214 |
|
Datasheet |
har-flex® | Bulk | Active | Socket to Socket, Reversed | 26 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.328' (100.00mm, 3.94") | - | Gray, Ribbon | Unshielded | - | IDC | - | - |
|

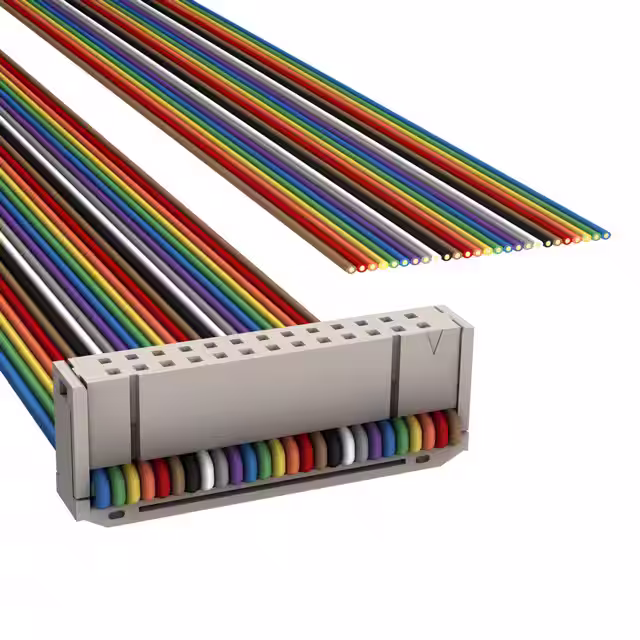

M1BXA-2636RIDC CABLE - MSR26A/MC26M/X |
4,795 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
H3CWH-6418MIDC CBL - HHKC64H/AE64M/HHPL64H |
2,334 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
H3WWH-3036MIDC CBL - HHPL30H/AE30M/HHPL30H |
4,285 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-07-D-26.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,425 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 2.17' (660.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-07-D-26.00-01-F-N-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,269 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 2.17' (660.40mm) | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-12-D-02.50-012MM DOUBLE ROW FEMALE IDC ASSEMB |
1,069 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.208' (63.50mm, 2.50") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
