Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TFSD-04-30-G-18.00-D-NUX.050" TIGER EYE DOUBLE ROW DISCR |
1,839 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Plug | 8 | 2 | 0.050" (1.27mm) | - | 1.50' (457.20mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
C3CCG-1636GIDC CABLE - CKC16G/AE16G/CKC16G |
4,342 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
M3UUK-1018JIDC CABLE - MKS10K/MC10G/MKS10K |
3,191 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3UGK-1018JIDC CABLE - MKS10K/MC10G/MCS10K |
1,932 |
|
Datasheet |
- | Bulk | Active | Socket to Card Edge | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief (Socket); Flange (Card Edge) | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
H1AXS-5036MIDC CABLE - HSC50S/AE50M/X |
3,085 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Cable | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|

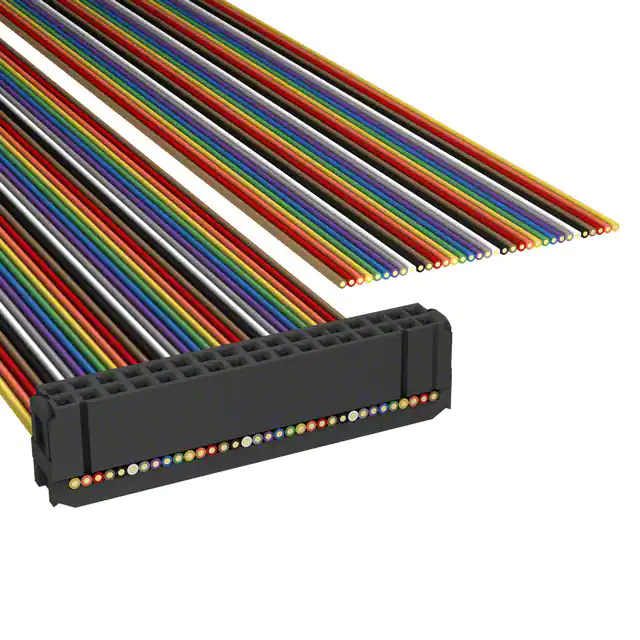

A1AXB-3436MIDC CABLE- ASC34B/AE34M/X |
4,630 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3CCB-2636MIDC CABLE- AKC26B/AE26M/AKC26B |
4,897 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-06-D-13.25-012MM DOUBLE ROW FEMALE IDC ASSEMB |
1,593 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.10' (336.55mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-22-S-08.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,274 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 44 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-22-S-08.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,594 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 44 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
SFSD-08-28C-G-48.00-S.050 SOCKET DISCRETE CABLE ASSEM |
4,149 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 16 | 2 | 0.050" (1.27mm) | - | 4.00' (1.22m) | Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-13-D-12.00-01-SR2MM DOUBLE ROW MALE IDC ASSEMBLY |
4,962 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
SMSD-13-24-F-12.00-S.100" MINI MATE UNIVERSAL DOUBLE |
3,363 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Individual Wire Leads | 26 | 2 | 0.100" (2.54mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | - |
|
|
MMSDT-15-28-L-39.50-S-KMINI-MATE CABLE ASSEMBLY, FEP |
4,929 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Individual Wire Leads | 30 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSDT-10-28-G-19.29-DR-NDXDOUBLE ROW DISCRETE FEP WIRE |
1,555 |
|
Datasheet |
Tiger Eye™ SFSDT | Bulk | Active | Socket to Socket | 20 | 2 | 0.050" (1.27mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
IDMS-20-T-12.00-GSLIM BODY SINGLE-ROW IDC MALE AS |
3,991 |
|
Datasheet |
IDMS | Bulk | Active | Socket to Plug | 20 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDMS-20-T-12.00-G-RWSLIM BODY SINGLE-ROW IDC MALE AS |
2,290 |
|
Datasheet |
IDMS | Bulk | Active | Socket to Plug | 20 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
SMSS-20-24C-F-12.00-S.100" MINI MATE UNIVERSAL SINGLE |
2,478 |
|
Datasheet |
Mini Mate® SMSS | Bulk | Active | Socket to Individual Wire Leads | 20 | 1 | 0.100" (2.54mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | - |
|
|
T2SDT-07-24-L-06.00-D-NUS2.00 MM TIGER EYE DOUBLE ROW DIS |
4,522 |
|
Datasheet |
Tiger Eye™ T2SDT | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SMSS-15-26-F-08.00-D-K-KUS.100" MINI MATE UNIVERSAL SINGLE |
2,174 |
|
Datasheet |
Mini Mate® SMSS | Bulk | Active | Socket to Socket | 15 | 1 | 0.100" (2.54mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | - |
