Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3AAB-3036GIDC CABLE- ASC30B/AE30G/ASC30B |
4,436 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
TCSD-10-D-04.12-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,779 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.343' (104.65mm, 4.12") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-10.00-01-N-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,586 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-10.00-01-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,592 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-07.50-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,205 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.625' (190.50mm, 7.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-07.50-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,249 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.625' (190.50mm, 7.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-07.50-01-N-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,632 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.625' (190.50mm, 7.50") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-25-S-16.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,411 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.33' (406.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-07-D-14.25-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,159 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.19' (361.95mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-09-D-06.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,562 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 18 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-09-D-06.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,335 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 18 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-11-D-03.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,988 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 22 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-14-S-18.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,936 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 28 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-18-T-03.00-01-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,716 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 36 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSS-18-D-15.00-GINSULATION DISPLACEMENT SOCKET C |
3,771 |
|
- |
IDSS | Bulk | Active | Socket to Socket | 18 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-18-24-L-12.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
1,711 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 36 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCSD-20-D-02.28-01-F-N-RIDC SOCKET CABLE ASSEMBLIES, 2.0 |
4,240 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.190' (57.91mm, 2.28") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
0369232803IGRID 28 CIRCUIT 300MM |
3,067 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

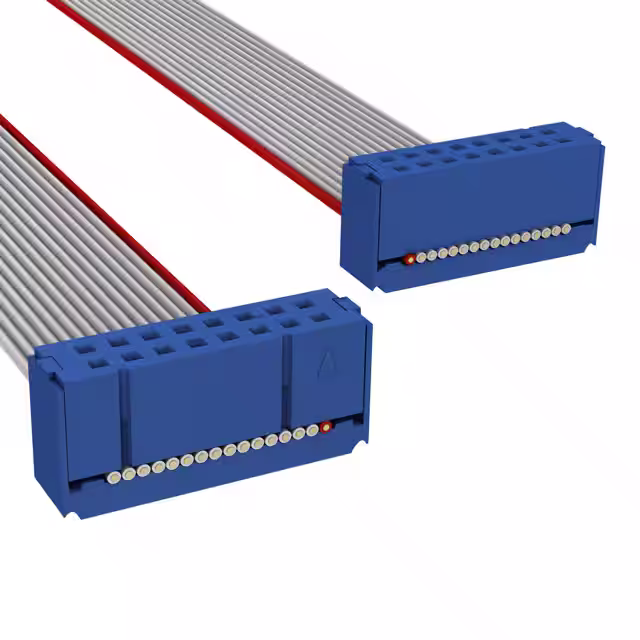

C3AAG-1636GIDC CABLE - CSC16G/AE16G/CSC16G |
1,617 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
TCSD-05-D-28.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,886 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 2.33' (711.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
