Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCSD-12-S-08.00-01-NIDC SOCKET AND TERMINAL CABLE AS |
2,588 |
|
Datasheet |
HCS | Bulk | Active | Socket to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
T2SD-07-24C-L-20.00-S2.00 MM TIGER EYE DOUBLE ROW DIS |
4,371 |
|
Datasheet |
Tiger Eye™ T2SD | Bulk | Active | Socket to Individual Wire Leads | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-07-28-H-10.00-S.050" TIGER EYE DOUBLE ROW DISCR |
1,092 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 14 | 2 | 0.050" (1.27mm) | - | 0.833' (254.00mm, 10.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TFSD-04-28-G-12.00-D-NUX.050" TIGER EYE DOUBLE ROW DISCR |
3,349 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Plug | 8 | 2 | 0.050" (1.27mm) | - | 1.00' (304.80mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
2196581144CGRID III R-R 14CKT 600MM DISC S |
2,621 |
|
Datasheet |
C-Grid III 219658 | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
M3AEK-1036RIDC CABLE - MSC10K/MC10M/MCE10K |
4,467 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Card Edge | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

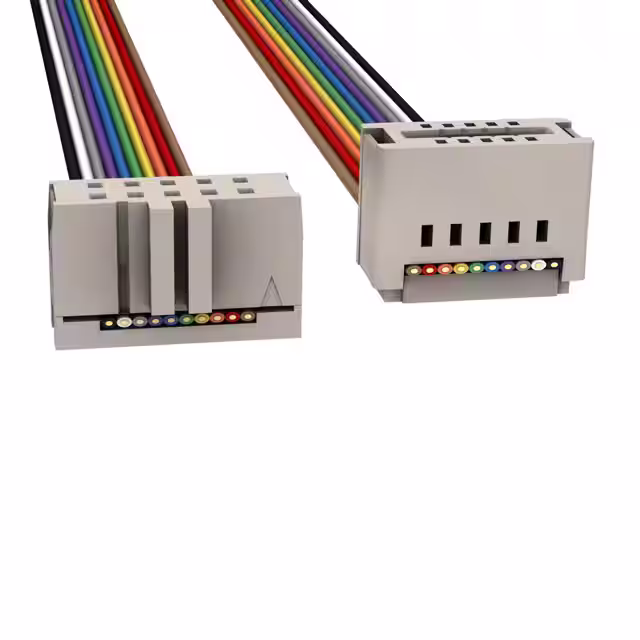

M3CEK-1036RIDC CABLE - MKC10K/MC10M/MCE10K |
3,288 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Card Edge | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
C3BPS-2018GIDC CABLE - CSR20S/AE20G/CPC20S |
2,041 |
|
Datasheet |
- | Bulk | Active | Socket to PCB | 20 | 2, 4 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Gray, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
C3DPS-2018GIDC CABLE - CKR20S/AE20G/CPC20S |
3,341 |
|
Datasheet |
- | Bulk | Active | Socket to PCB | 20 | 2, 4 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
TCSD-04-D-15.16-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,583 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.26' (385.06mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-11.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,894 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.917' (279.40mm, 11.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-11.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,719 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.917' (279.40mm, 11.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-11.00-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,913 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.917' (279.40mm, 11.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-11.00-01-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,409 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.917' (279.40mm, 11.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-07-D-07.20-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,307 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.600' (182.88mm, 7.20") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-D-03.40-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,308 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.283' (86.36mm, 3.40") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-16-D-06.00-01-N-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,622 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 32 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-24-S-04.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,184 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 48 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
MMSD-14-22-L-30.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
1,054 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 28 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S1SST-20-28-GF-07.87-L3MICRO MATE SINGLE ROW DISCRETE T |
2,719 |
|
Datasheet |
Micro Mate™ S1SST | Bulk | Active | Socket to Socket | 20 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
