Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-17-D-02.00-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,256 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-D-09.00-01-N-P072MM DOUBLE ROW FEMALE IDC ASSEMB |
2,009 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.750' (228.60mm, 9.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-12.00-01-F-N-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,276 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-D-12.00-01-F-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,355 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-17-D-02.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,945 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-08-T-24.00-01-F-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,660 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug, Reversed | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-20-T-03.00-01-F-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
4,467 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
FFMD-03-T-12.00-01-SR.050" TIGER EYE IDC RIBBON CABLE |
1,357 |
|
Datasheet |
Tiger Eye™ FFMD | Bulk | Active | Socket to Plug | 6 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 1.00' (304.80mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
MMSD-05-20-L-07.00-D-K-MUSMINI-MATE CABLE ASSEMBLY, 0.100" |
4,383 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSST-07-28-L-05.50-D-K-MDSMINI-MATE CABLE ASSEMBLY, FEP |
4,845 |
|
Datasheet |
Mini Mate® MMSST | Bulk | Active | Socket to Socket | 7 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCSD-15-D-05.00-01-F-RN2IDC SOCKET CABLE ASSEMBLIES, 2.0 |
2,078 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TFSD-05-28-G-03.50-DL-NUX.050" TIGER EYE DOUBLE ROW DISCR |
2,855 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Plug | 10 | 2 | 0.050" (1.27mm) | - | 0.292' (88.90mm, 3.50") | Friction Lock | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-05-28-G-05.12-T-NUS.050" TIGER EYE DOUBLE ROW DISCR |
3,041 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Socket to Plug | 10 | 2 | 0.050" (1.27mm) | - | 0.427' (130.05mm, 5.12") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|

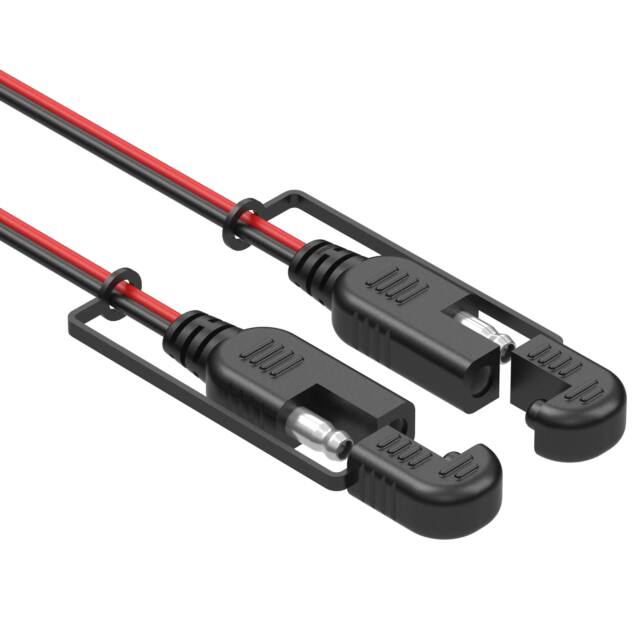

10-02413CBL ASSY SAE TO SAE 12' |
1,640 |
|
Datasheet |
- | Bulk | Active | SAE Connector to SAE Connector | 2 | 1 | 0.295" (7.50mm) | - | 12.0' (3.66m) | Dust Cap | Black, Red | Unshielded | - | - | Nickel | - |
|
M1BXK-1040KIDC CABLE - MSR10K/MC10F/X |
2,077 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.34' (1.02m) | Strain Relief | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M1DXK-1040KIDC CABLE - MKR10K/MC10F/X |
4,465 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.34' (1.02m) | Polarizing Key, Strain Relief | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A3CCA-3018MIDC CABLE- AKN30A/ AE34M / AKN30 |
3,097 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3AAH-4018GIDC CABLE - ASC40H/AE40G/ASC40H |
1,091 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A3BBH-3006MIDC CABLE - ASR30H/AE30M/ASR30H |
3,162 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A3CCH-4018GIDC CABLE - AKC40H/AE40G/AKC40H |
3,539 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
