Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

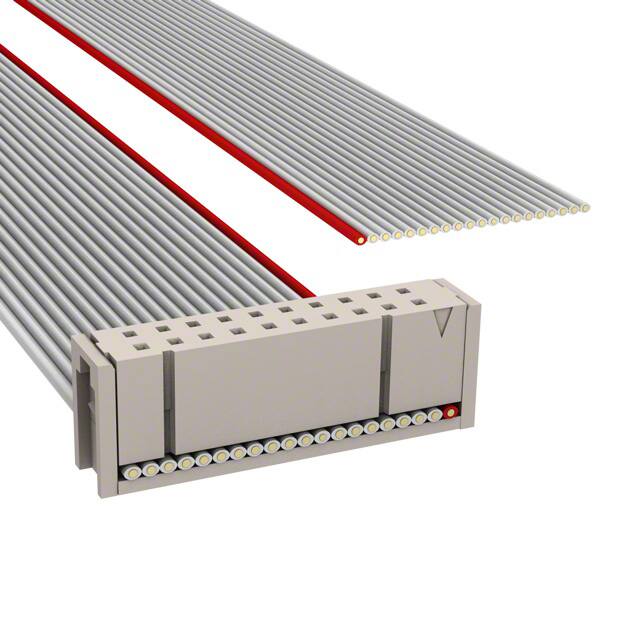

M1AXK-2036JIDC CABLE - MSC20K/MC20G/X |
4,397 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M1CXK-2036JIDC CABLE - MKC20K/MC20G/X |
3,878 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3AAH-3018GIDC CABLE - ASC30H/AE30G/ASC30H |
1,202 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
TCSD-05-D-08.70-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,376 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.725' (220.98mm, 8.70") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-08.70-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,276 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.725' (220.98mm, 8.70") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-06-D-07.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,253 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.583' (177.80mm, 7.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-06-D-07.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,435 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.583' (177.80mm, 7.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-06-D-07.00-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,416 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.583' (177.80mm, 7.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-07-D-04.93-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,775 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.411' (125.22mm, 4.93") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-15-D-04.30-01-F-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,627 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.358' (109.22mm, 4.30") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-11-D-08.20-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,811 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 22 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.683' (208.28mm, 8.20") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-08-T-16.00-01-N-RW2MM DOUBLE ROW MALE IDC ASSEMBLY |
1,174 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-08-T-16.00-01-RW2MM DOUBLE ROW MALE IDC ASSEMBLY |
1,438 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
HCSD-09-D-06.00-01-NIDC SOCKET AND TERMINAL CABLE AS |
2,667 |
|
Datasheet |
HCS | Bulk | Active | Socket to Socket | 18 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
TCMD-15-T-03.00-01-RF-N-SR2.00 MM IDC RIBBON CABLE ASSEMBL |
4,022 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
A6MMT-4018GADM40T/AE40G/ADM40T |
3,108 |
|
Datasheet |
- | Bulk | Obsolete | DIP to DIP | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
|
A8MMT-4018GADM40T/AE40G/ADM40T |
2,477 |
|
Datasheet |
- | Bulk | Obsolete | DIP to DIP, Reversed | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
C3AES-2018GIDC CABLE - CSC20S/AE20G/CCE20S |
2,062 |
|
Datasheet |
- | Bulk | Active | Socket to Card Edge | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C3CES-2018GIDC CABLE - CKC20S/AE20G/CCE20S |
1,879 |
|
Datasheet |
- | Bulk | Active | Socket to Card Edge | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
TCSD-10-D-15.50-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,208 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.29' (393.70mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
