Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-13-D-06.20-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,855 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.517' (157.48mm, 6.20") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-12-D-07.10-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,376 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.592' (180.34mm, 7.10") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-D-03.00-01-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,315 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-16-S-10.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
3,449 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 32 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-10-S-36.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,298 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-15-D-06.00-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
3,142 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
HCMD-10-T-10.00-01-T-RIDC SOCKET AND TERMINAL CABLE AS |
2,820 |
|
Datasheet |
HCM | Bulk | Active | Socket to Plug, Reversed | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
MMSST-20-24-L-11.00-D-K-LUSMINI-MATE CABLE ASSEMBLY, FEP |
3,673 |
|
Datasheet |
Mini Mate® MMSST | Bulk | Active | Socket to Socket | 20 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCSD-10-D-14.45-01-F-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
4,905 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.20' (367.03mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-10-T-12.80-01-N2.00 MM IDC RIBBON CABLE ASSEMBL |
4,508 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCSD-20-S-03.00-01-SRIDC SOCKET CABLE ASSEMBLIES, 2.0 |
2,826 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
2153272102MINIFIT JR DR P-P 10 CIRCUIT 300 |
3,607 |
|
Datasheet |
Mini-Fit Jr 215327 | Bag | Active | Plug to Plug | 10 | 2 | 0.165" (4.19mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
A3DDG-2018GIDC CABLE-AKR20G/ AE20G / AKR20G |
4,555 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

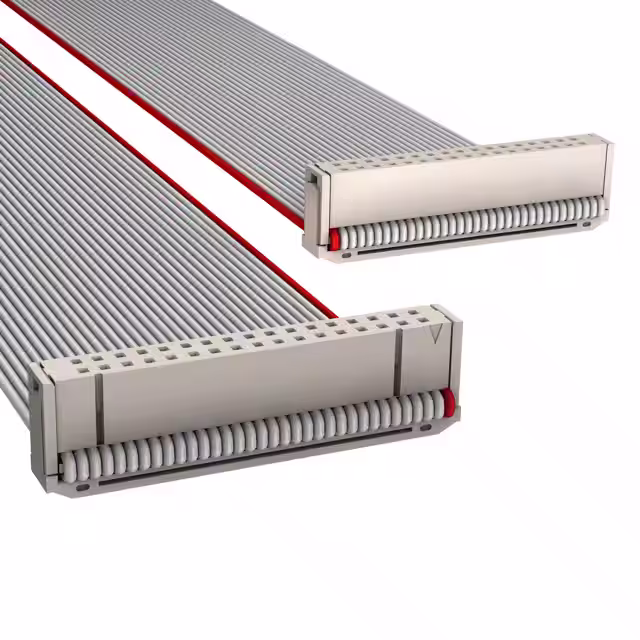

M3BBA-3436JIDC CABLE - MSR34A/MC34G/MSR34A |
2,957 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

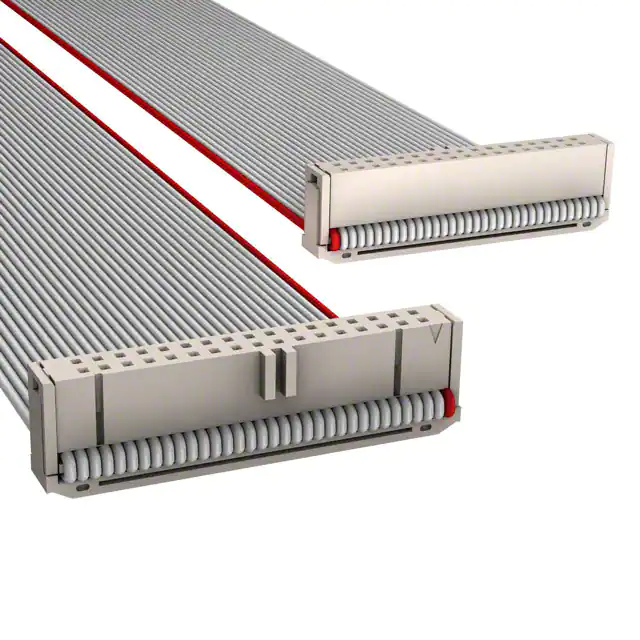

M3DDA-3436JIDC CABLE - MKR34A/MC34G/MKR34A |
4,118 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3TKK-1018RIDC CABLE - MSD10K/MC10M/MPK10K |
2,721 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A3DDG-2406GIDC CABLE-AKR24G/ AE24G / AKR24G |
4,253 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A3DDH-1636MIDC CABLE - AKR16H/AE16M/AKR16H |
4,100 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

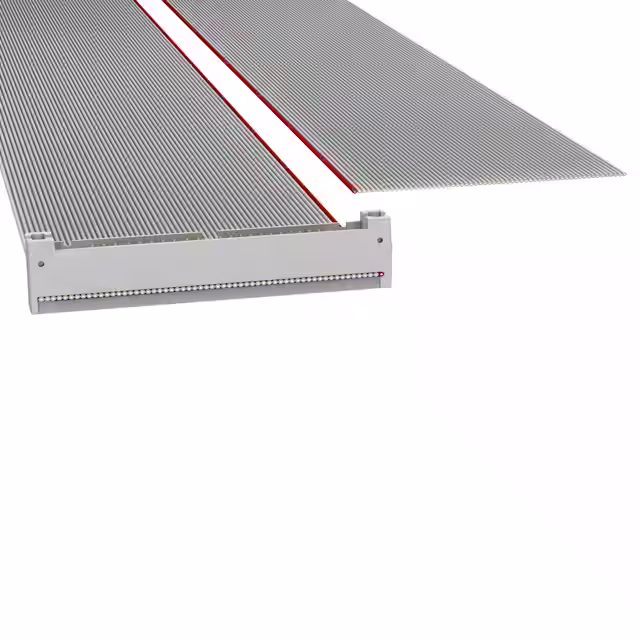

H1KXH-6036GIDC CBL - HHPK60H/AE60G/X |
2,741 |
|
Datasheet |
- | Bulk | Active | Plug to Cable | 60 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
A3DDB-1636MIDC CABLE- AKR16B/AE16M/AKR16B |
4,406 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
