Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1SST-10-28-GF-22.00-L1MICRO MATE SINGLE ROW DISCRETE T |
3,140 |
|
Datasheet |
Micro Mate™ S1SST | Bulk | Active | Socket to Socket | 10 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
1M-1010-034-3365-012.0-00-AB-00-0 RCMOLDED CABLE ASSEMBLY STKPKG 1M- |
2,796 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TCSD-05-D-06.70-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,564 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.558' (170.18mm, 6.70") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-13.55-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,429 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.13' (344.17mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-17-S-15.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,455 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.25' (381.00mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-04-D-10.00-01-P012MM DOUBLE ROW FEMALE IDC ASSEMB |
1,990 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-04-D-10.00-01-P032MM DOUBLE ROW FEMALE IDC ASSEMB |
1,585 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-08-S-36.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,956 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-08-T-14.00-01-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
3,023 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-08-T-14.00-01-N-P012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,251 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-10-20C-F-18.00-S-K-MMINI-MATE CABLE ASSEMBLY, 0.100" |
2,184 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 20 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
SMSS-09-24C-F-16.00-D-KDX.100" MINI MATE UNIVERSAL SINGLE |
4,168 |
|
Datasheet |
Mini Mate® SMSS | Bulk | Active | Socket to Socket | 9 | 1 | 0.100" (2.54mm) | - | - | Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | - |
|
|
SFSD-07-28C-H-12.00-D-NDXDOUBLE ROW DISCRETE WIRE ASSEMBL |
1,289 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.050" (1.27mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TCMD-13-D-07.87-012.00 MM IDC RIBBON CABLE ASSEMBL |
4,941 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|

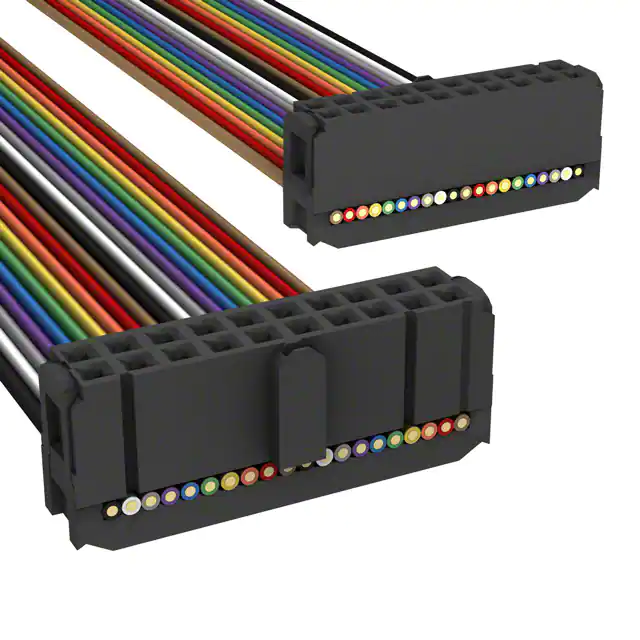

A3CCH-2036MIDC CABLE - AKC20H/AE20M/AKC20H |
3,839 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A3AAB-3018GIDC CABLE- ASC30B/AE30G/ASC30B |
3,371 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-06.75-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,340 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.563' (171.45mm, 6.75") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-07-D-18.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,588 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-07-D-18.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,920 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-15-D-03.20-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,835 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.267' (81.28mm, 3.20") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
