Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-15-D-02.75-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,101 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.229' (69.85mm, 2.75") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-16-S-09.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
3,667 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 32 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.750' (228.60mm, 9.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-15-D-05.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,036 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-15-D-05.00-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
4,176 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-07-T-16.00-012.00 MM IDC RIBBON CABLE ASSEMBL |
3,775 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S1SD-20-30-GF-01.80-LMICRO MATE DOUBLE ROW DISCRETE W |
1,346 |
|
Datasheet |
Micro Mate™ S1SD | Bulk | Active | Socket to Individual Wire Leads | 40 | 2 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSD-09-22-F-12.00-S-K-MMINI-MATE CABLE ASSEMBLY, 0.100" |
2,406 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 18 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
PMSD-04-16C-K-72.00-S.165" POWER MATE DOUBLE ROW DISC |
2,994 |
|
Datasheet |
Power Mate® PMSD | Bulk | Active | Socket to Individual Wire Leads | 8 | 2 | 0.165" (4.19mm) | - | - | Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Tin | - |
|
|
S1SS-15-28-GF-16.00-L1MICRO MATE SINGLE ROW DISCRETE W |
2,751 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 15 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TCSD-15-D-02.75-01-FIDC SOCKET CABLE ASSEMBLIES, 2.0 |
3,773 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.229' (69.85mm, 2.75") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-20-S-02.00-01-N-SRIDC SOCKET CABLE ASSEMBLIES, 2.0 |
1,614 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
45110-010030-7700/10-C-24CABLE ASSY 10 POS 24" PINOUT-C |
3,428 |
|
Datasheet |
451 | Bulk | Discontinued at Digi-Key | Socket to Socket | 10 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 2.00' (609.60mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A3BBG-4018GIDC CABLE-ASR40G/ AE40G / ASR40G |
3,749 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
A3AAG-3036GIDC CABLE-ASC30G/ AE34G / ASC30G |
4,907 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

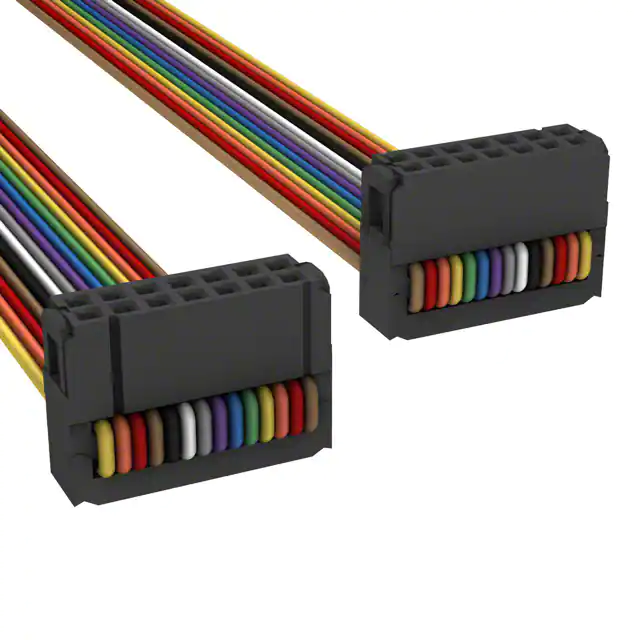

A3BBB-1436MIDC CABLE- ASR14B/AE14M/ASR14B |
4,285 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-05-D-06.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
1,707 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-06.00-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,679 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-06.00-01-N-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,275 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-06.00-01-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,338 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-06.00-01-RN12MM DOUBLE ROW FEMALE IDC ASSEMB |
1,868 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
