Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-05-D-03.00-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,472 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-03.00-01-N-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,376 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-03.00-01-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,465 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-03.00-01-R-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,197 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-03.00-01-RN22MM DOUBLE ROW FEMALE IDC ASSEMB |
2,592 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-03.00-01-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,371 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-20-S-03.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,077 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-04-S-36.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,272 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-12-T-03.20-01-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
3,128 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S1SS-15-30C-GF-10.00-L1MICRO MATE SINGLE ROW DISCRETE W |
2,827 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 15 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TCMD-06-D-19.00-01-R2.00 MM IDC RIBBON CABLE ASSEMBL |
3,753 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S1SDT-05-28-GF-14.00-L1MICRO MATE DOUBLE ROW DISCRETE T |
1,282 |
|
Datasheet |
Micro Mate™ S1SDT | Bulk | Active | Socket to Socket | 10 | 2 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TFSD-10-28-G-03.25-S.050" TIGER EYE DOUBLE ROW DISCR |
2,151 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 20 | 2 | 0.050" (1.27mm) | - | 0.271' (82.55mm, 3.25") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
A3CKA-1606GIDC CABLE - AKN16A/AE16G/APK16A |
1,909 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A3AAA-2418GIDC CABLE-ASN24A/ AE24G / ASN24A |
2,095 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A3BBA-2418GIDC CABLE-ASS24A/ AE24G / ASS24A |
3,746 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A3DDA-3018GIDC CABLE-AKP30A/ AE34G / AKP30A |
3,447 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
C1PXS-2036MIDC CABLE - CPC20S/AE20M/X |
4,999 |
|
Datasheet |
- | Bulk | Active | PCB to Cable | 20 | 4 | 0.050" (1.27mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|

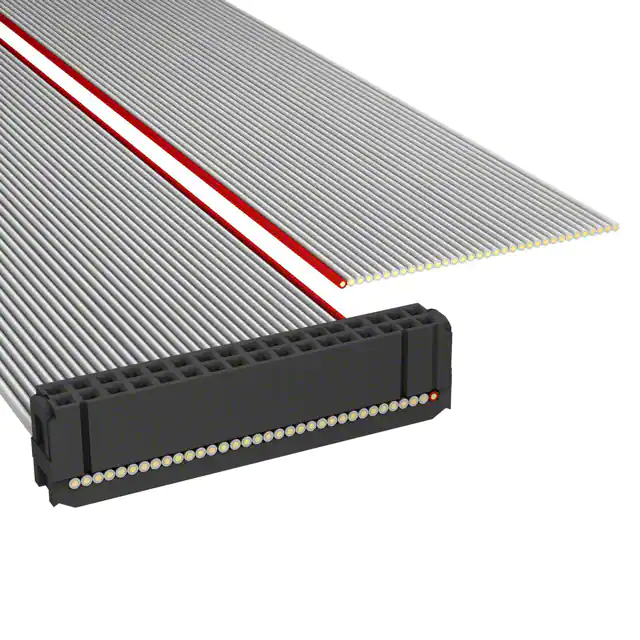

A1AXB-3436GIDC CABLE- ASC34B/AE34G/X |
1,652 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-D-12.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,263 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
