Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

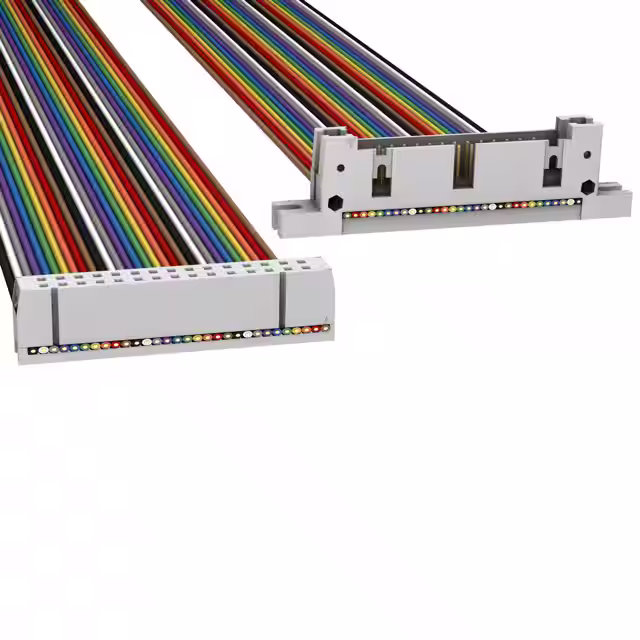

H3AWH-3036MIDC CBL - HHSC30H/AE30M/HHPL30H |
3,780 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
C3BBS-1606GIDC CABLE - CSR16S/AE16G/CSR16S |
3,798 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C3EES-1006GIDC CABLE - CCE10S/AE10G/CCE10S |
2,651 |
|
Datasheet |
- | Bulk | Active | Card Edge to Card Edge | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
TCSD-15-S-07.87-012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,860 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.656' (200.00mm, 7.87") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-04-D-05.00-01-P082MM DOUBLE ROW FEMALE IDC ASSEMB |
3,348 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-11.00-01-F-N-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,159 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.917' (279.40mm, 11.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-15-D-02.50-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,753 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-15-D-02.50-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
1,288 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
HCSD-07-D-06.50-01-N-RIDC SOCKET AND TERMINAL CABLE AS |
1,182 |
|
Datasheet |
HCS | Bulk | Active | Socket to Socket, Reversed | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
IDSD-10-D-08.30SLIM BODY DOUBLE-ROW IDC SOCKET |
1,046 |
|
Datasheet |
IDSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSD-10-D-08.30-RSLIM BODY DOUBLE-ROW IDC SOCKET |
4,687 |
|
Datasheet |
IDSD | Bulk | Active | Socket to Socket, Reversed | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCSD-04-S-27.00-01-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
3,294 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 2.25' (685.80mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
MMSD-08-26-S-05.60-D-K-LDXMINI-MATE CABLE ASSEMBLY, 0.100" |
1,411 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
MMSD-10-22-L-06.00-D-K-LDXMINI-MATE CABLE ASSEMBLY, 0.100" |
4,174 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SMSD-05-24-L-06.00-D-K-KDX.100" MINI MATE UNIVERSAL DOUBLE |
3,637 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCSD-17-S-12.21-01-F-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
4,662 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
C3AAG-1006MIDC CABLE - CSC10G/AE10M/CSC10G |
3,402 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
C3CCG-1006MIDC CABLE - CKC10G/AE10M/CKC10G |
2,023 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
A1AXG-5036GIDC CABLE-ASC50G/ AE50G / X |
2,908 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
A1DXG-3436GIDC CABLE-AKR34G/ AE34G / X |
3,473 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
