Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCMD-22-S-10.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,134 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 44 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
L3CCH-4036NIDC CBL - LKC40H/CN222GR/LKC40H |
4,495 |
|
- |
- | Bulk | Active | Socket to Socket | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
L3CKH-2636NIDC CBL - LKC26H/CN221GR/LPK26H |
3,073 |
|
- |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
HCMD-08-T-10.00-01-TIDC SOCKET AND TERMINAL CABLE AS |
4,881 |
|
Datasheet |
HCM | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
FFMD-05-D-05.12-01.050" TIGER EYE IDC RIBBON CABLE |
2,185 |
|
Datasheet |
Tiger Eye™ FFMD | Bulk | Active | Plug to Plug | 10 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.427' (130.00mm, 5.12") | - | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
HCSD-07-D-05.50-01-N-RIDC SOCKET AND TERMINAL CABLE AS |
3,283 |
|
Datasheet |
HCS | Bulk | Active | Socket to Socket, Reversed | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
T2SD-05-26-L-05.00-D-NUS2.00 MM TIGER EYE DOUBLE ROW DIS |
4,860 |
|
Datasheet |
Tiger Eye™ T2SD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSS-10-28-H-10.00-S.050" TIGER EYE SINGLE ROW DISCR |
1,453 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 10 | 1 | 0.050" (1.27mm) | - | 0.833' (254.00mm, 10.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TCSD-04-D-04.00-01-N-P01IDC SOCKET CABLE ASSEMBLIES, 2.0 |
3,685 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3BBH-2606MIDC CABLE - ASR26H/AE26M/ASR26H |
1,286 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A3DDH-2606MIDC CABLE - AKR26H/AE26M/AKR26H |
1,068 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

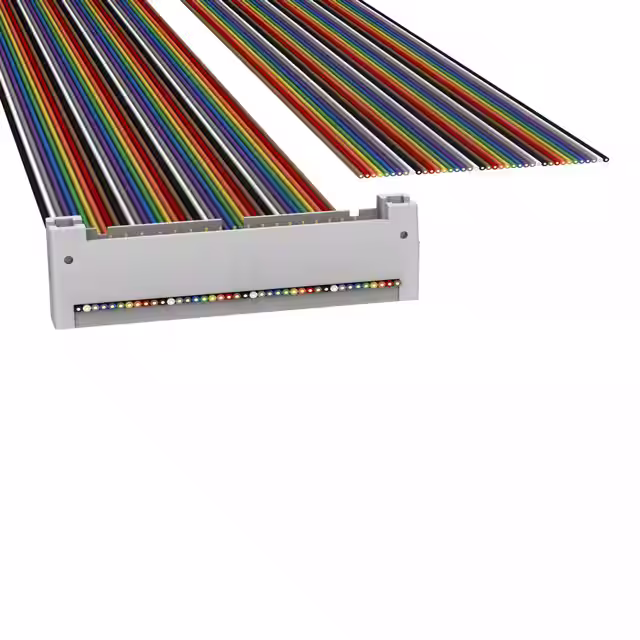

H1KXH-4036MIDC CBL - HHPK40H/AE40M/X |
1,284 |
|
Datasheet |
- | Bulk | Active | Plug to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
A3DDB-2606MIDC CABLE- AKR26B/AE26M/AKR26B |
2,217 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-04-S-26.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,233 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 2.17' (660.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-D-09.80-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,516 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.817' (248.92mm, 9.80") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-D-07.90-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,881 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.658' (200.66mm, 7.90") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
IDMD-16-S-04.00-T-G-ST4SLIM BODY DOUBLE-ROW IDC MALE AS |
1,859 |
|
Datasheet |
IDMD | Bulk | Active | Plug to Cable | 32 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
PMSD-05-206-K-12.00-D-LDX.165" POWER MATE DOUBLE ROW DISC |
2,650 |
|
Datasheet |
Power Mate® PMSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
MMSD-06-20-L-72.00-S-K-MMINI-MATE CABLE ASSEMBLY, 0.100" |
2,676 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 12 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSS-06-20-L-10.00-D-K-MDSMINI-MATE CABLE ASSEMBLY, 0.100" |
4,432 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Socket | 6 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
