Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCMD-06-T-10.00-01-P032.00 MM IDC RIBBON CABLE ASSEMBL |
2,517 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TFSD-05-30-H-07.00-S.050" TIGER EYE DOUBLE ROW DISCR |
1,444 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 0.583' (177.80mm, 7.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
A3DDG-1406GIDC CABLE-AKR14G/ AE14G / AKR14G |
2,672 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A2MXS-4018GADM40S/AE40G/X |
4,029 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|

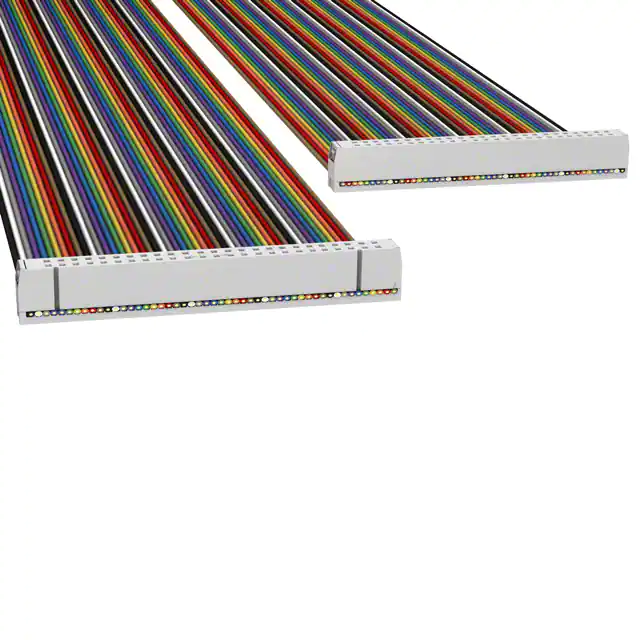

H3AAH-5036MIDC CBL - HHSC50H/AE50M/HHSC50H |
3,129 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A1BXB-2036MIDC CABLE- ASR20B/AE20M/X |
2,559 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-13-S-07.87-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,409 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.656' (200.00mm, 7.87") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-25-S-05.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,368 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-25-S-05.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,615 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-12-S-08.00-01-P062MM DOUBLE ROW FEMALE IDC ASSEMB |
3,969 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-D-03.00-01-F-N-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,003 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-13-D-03.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,106 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-10-28-S-18.00-S-PMINI-MATE CABLE ASSEMBLY, 0.100" |
4,521 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 20 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
HCSD-06-S-02.5-01-N-ST8-B11IDC SOCKET AND TERMINAL CABLE AS |
1,288 |
|
Datasheet |
HCS | Bulk | Active | Socket to Cable | 12 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
S1SD-03-28-GF-40.00-L1MICRO MATE DOUBLE ROW DISCRETE W |
3,879 |
|
Datasheet |
Micro Mate™ S1SD | Bulk | Active | Socket to Socket | 6 | 2 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
HCMD-13-S-02.30-01-GIDC SOCKET AND TERMINAL CABLE AS |
2,529 |
|
Datasheet |
HCM | Bulk | Active | Plug to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
HCMD-03-T-18.00-02IDC SOCKET AND TERMINAL CABLE AS |
4,008 |
|
Datasheet |
HCM | Bulk | Active | Socket to Plug | 6 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
HCSD-05-D-19.00-01-T-NIDC SOCKET AND TERMINAL CABLE AS |
3,454 |
|
Datasheet |
HCS | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Tin | 150.0µin (3.81µm) |
|
|
S2SD-04-24-L-04.00-D-NDX2.00 MM TIGER EYE DOUBLE ROW DIS |
4,247 |
|
Datasheet |
Tiger Eye™ S2SD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCSD-25-S-05.00-01-F-N-RWIDC SOCKET CABLE ASSEMBLIES, 2.0 |
1,874 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
