Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFSDT-05-28-H-03.25-DL-NDXDOUBLE ROW DISCRETE FEP WIRE |
2,026 |
|
Datasheet |
Tiger Eye™ SFSDT | Bulk | Active | Socket to Socket | 10 | 2 | 0.050" (1.27mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TCSD-06-D-08.00-01-F-P01IDC SOCKET CABLE ASSEMBLIES, 2.0 |
1,618 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
SMSD-05-24-F-03.00-D-KDS.100" MINI MATE UNIVERSAL DOUBLE |
1,013 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | - |
|
|
SMSD-12-24-F-30.00-S.100" MINI MATE UNIVERSAL DOUBLE |
3,213 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Individual Wire Leads | 24 | 2 | 0.100" (2.54mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | - |
|
|
A3AAA-2606GIDC CABLE-ASN26A/ AE26G / ASN26A |
4,026 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A3BBA-2606GIDC CABLE-ASS26A/ AE26G / ASS26A |
1,490 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A2MXS-2618MADM26S/AE26M/X |
2,373 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|

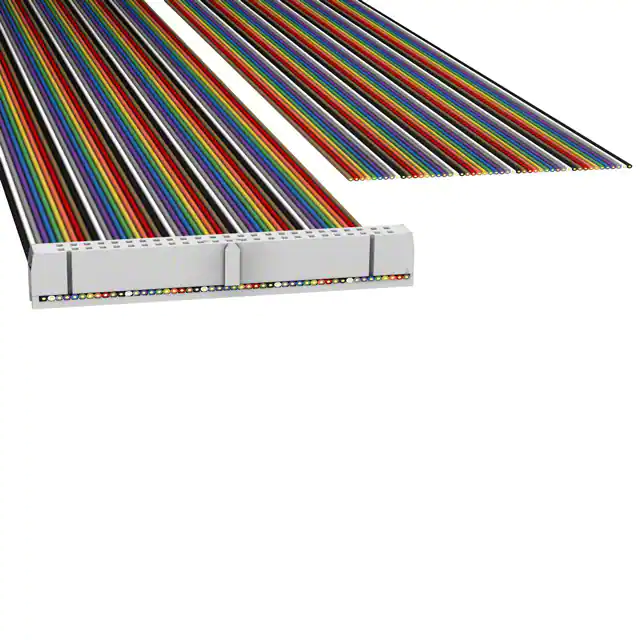

H1CXH-5036MIDC CABLE - HKC50H/AE50M/X |
2,394 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
C3CCS-1018MIDC CABLE - CKC10S/AE10M/CKC10S |
3,853 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
A3CCB-2606MIDC CABLE- AKC26B/AE26M/AKC26B |
3,085 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-S-19.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,866 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.58' (482.58mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-03.20-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,077 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.267' (81.28mm, 3.20") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-S-21.65-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,785 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.80' (549.91mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-12-S-07.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,695 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.583' (177.80mm, 7.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-08-T-03.14-01-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,121 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-08-T-03.15-01-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
3,518 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
A3AAH-2406MIDC CABLE - ASC24H/AE24M/ASC24H |
2,680 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

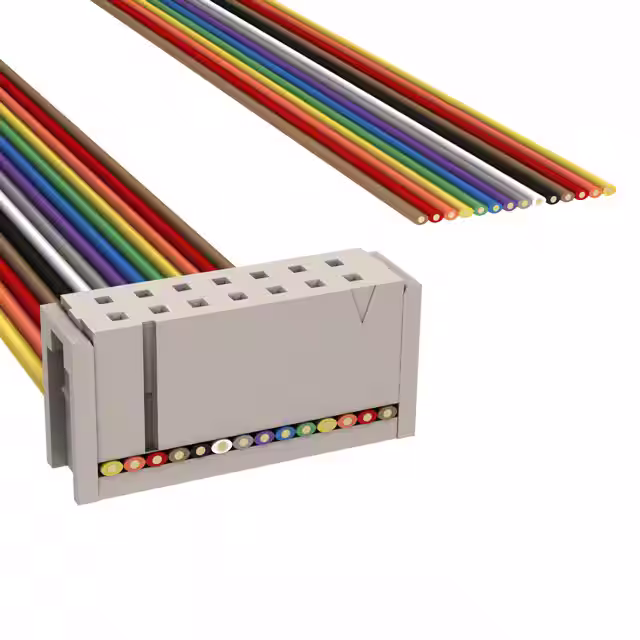

M1AXA-1436RIDC CABLE - MSC14A/MC14M/X |
2,231 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3CCH-4436MIDC CABLE - AKC44H/AE44M/AKC44H |
3,598 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 44 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
C1PXS-2036GIDC CABLE - CPC20S/AE20G/X |
2,300 |
|
Datasheet |
- | Bulk | Active | PCB to Cable | 20 | 4 | 0.050" (1.27mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
