Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IDSD-10-D-03.00-GINSULATION DISPLACEMENT TERMINAL |
1,651 |
|
Datasheet |
IDSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
M1CXA-2036RIDC CABLE - MKC20A/MC20M/X |
3,604 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A6MMT-2618GADM26T/AE26G/ADM26T |
4,065 |
|
Datasheet |
- | Bulk | Obsolete | DIP to DIP | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
|
A8MMT-2618GADM26T/AE26G/ADM26T |
4,515 |
|
Datasheet |
- | Bulk | Obsolete | DIP to DIP, Reversed | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|

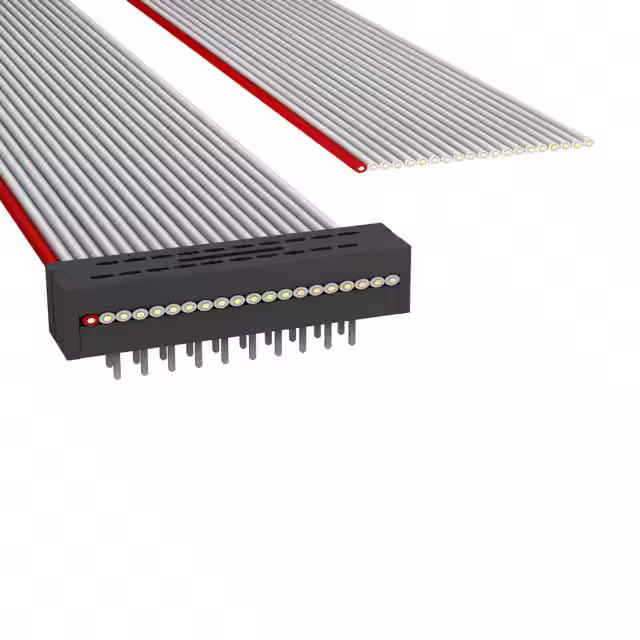

A2MXS-2036GADM20S/AE20G/X |
1,381 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|

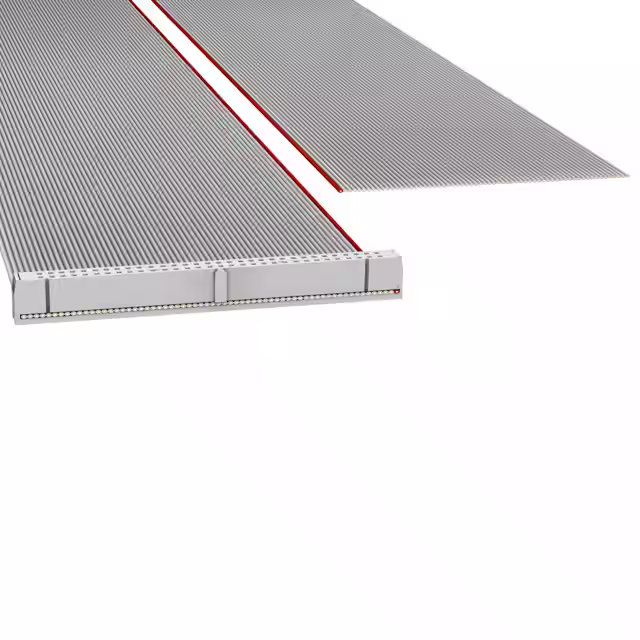

H1CXH-6436GIDC CBL - HHKC64H/AE64G/X |
4,360 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
M6MMH-1018RIDC CABLE - MDM10H/MC10M/MDM10H |
4,658 |
|
- |
- | Bulk | Obsolete | PCB to PCB | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
|
M8MMH-1018RIDC CABLE - MDM10H/MC10M/MDM10H |
1,211 |
|
- |
- | Bulk | Obsolete | PCB to PCB, Reversed | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
A1BXB-1436MIDC CABLE- ASR14B/AE14M/X |
3,080 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
158214-0220-3625/14-D-3CABLE 14POS SOCKET TO SOCKET 3" |
2,769 |
|
Datasheet |
158 | Bulk | Obsolete | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
FFSD-10-S-03.00-01-N-RW.050 X .050 C.L. FEMALE IDC ASSE |
3,605 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.250' (76.20mm, 3.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
TCSD-07-D-05.90-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,717 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.492' (149.86mm, 5.90") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-07-D-05.91-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,772 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.492' (150.00mm, 5.91") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-17-S-07.87-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,709 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.656' (200.00mm, 7.87") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-20-S-05.75-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,229 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.479' (146.05mm, 5.75") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-08-D-02.52-01-F-N-P012MM DOUBLE ROW FEMALE IDC ASSEMB |
3,020 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.210' (64.01mm, 2.52") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-08-S-20.00-01-F-P042MM DOUBLE ROW FEMALE IDC ASSEMB |
3,413 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.67' (508.00mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-05-T-06.82-01-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
3,003 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
T1SD-06-28-GF-02.0-T3CBL ASSY 1MM 12POS M TO F |
3,779 |
|
- |
Micro Mate™ T1SD | Bulk | Active | Socket to Plug | 12 | 2 | 0.039" (1.00mm) | - | 0.167' (50.80mm, 2.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TFSS-07-28-G-03.25-D-NUS.050" TIGER EYE SINGLE ROW DISCR |
4,887 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Plug | 7 | 1 | 0.050" (1.27mm) | - | 0.271' (82.55mm, 3.25") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
