Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCMD-07-T-03.73-01-N-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
4,632 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug, Reversed | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-08-D-06.00-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
4,398 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S1SD-08-28-GF-05.00-L3MICRO MATE DOUBLE ROW DISCRETE W |
3,095 |
|
Datasheet |
Micro Mate™ S1SD | Bulk | Active | Socket to Socket | 16 | 2 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSD-10-24C-S-04.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
1,284 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 20 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TCMD-08-D-06.00-01-RW2.00 MM IDC RIBBON CABLE ASSEMBL |
4,132 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-16-T-04.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,809 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 32 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|

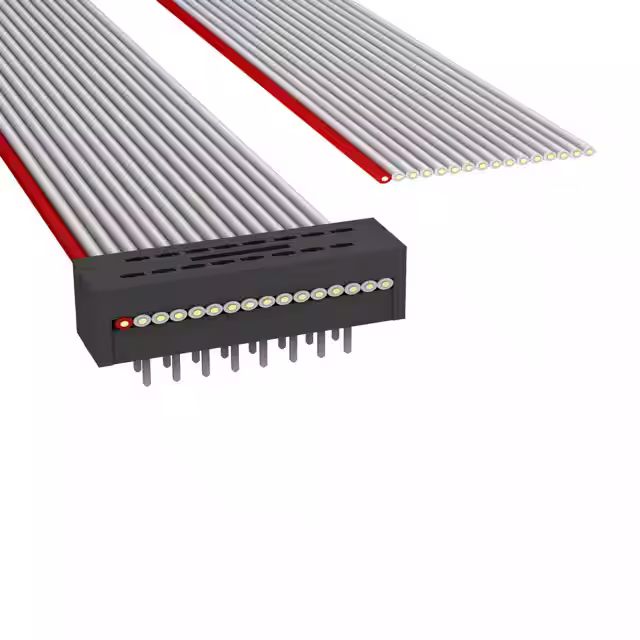

A2MXS-1636GADM16S/AE16G/X |
1,650 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
C1BXS-1636GIDC CABLE - CSR16S/AE16G/X |
3,825 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
H3WWH-4006MIDC CBL - HHPL40H/AE40M/HHPL40H |
1,176 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-07-S-15.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,404 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.25' (381.00mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-S-19.70-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,493 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.64' (500.38mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-S-15.00-01-F-N-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,255 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.25' (381.00mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
SFSD-07-28-G-14.00-DR-NUS.050 SOCKET DISCRETE CABLE ASSEM |
3,795 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.050" (1.27mm) | - | 1.17' (355.60mm) | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
HCSD-05-S-16.00-01-N-GIDC SOCKET AND TERMINAL CABLE AS |
4,210 |
|
Datasheet |
HCS | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
TFSS-07-28-G-04.00-T-NUS.050" TIGER EYE SINGLE ROW DISCR |
4,666 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Socket to Plug | 7 | 1 | 0.050" (1.27mm) | - | 0.333' (101.60mm, 4.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
45114-010030-3749/14-S-3SGL END CBL ASSY 14POS SKT 3" |
1,615 |
|
Datasheet |
451 | Bulk | Active | Socket to Cable | 14 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.250' (76.20mm, 3.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
C2PXS-2406MDIP CABLE - CDP24S/AE24M/X |
1,701 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
C4PXS-2406MDIP CABLE - CDP24S/AE24M/X |
1,509 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
TCSD-06-D-07.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,441 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.583' (177.80mm, 7.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-08-D-03.20-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,680 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.267' (81.28mm, 3.20") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
