Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C6PPS-1436GDIP CABLE - CDP14S/AE14G/CDP14S |
2,758 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
C8PPS-1436GDIP CABLE - CDP14S/AE14G/CDP14S |
2,537 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
TCSD-05-D-07.50-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,413 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.625' (190.50mm, 7.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-S-11.05-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,455 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.921' (280.67mm, 11.05") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-25-S-02.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,035 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-25-S-02.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,809 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-09-S-12.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
1,942 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 18 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-D-02.60-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,282 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.217' (66.04mm, 2.60") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-04-T-09.00-01-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
4,586 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-07-T-03.20-01-N-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
3,082 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug, Reversed | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-10-D-03.60-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,656 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
SFSST-12-28-G-04.25-SSINGLE ROW DISCRETE FEP WIRE |
1,032 |
|
Datasheet |
Tiger Eye™ SFSST | Bulk | Active | Socket to Individual Wire Leads | 12 | 1 | 0.050" (1.27mm) | - | 0.354' (107.95mm, 4.25") | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
HCSD-05-D-04.75-01-NIDC SOCKET AND TERMINAL CABLE AS |
2,192 |
|
Datasheet |
HCS | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
M3CCA-1040KIDC CABLE - MKC10A/MC10F/MKC10A |
2,866 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.34' (1.02m) | Polarizing Key | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3AAA-1040KIDC CABLE - MSC10A/MC10F/MSC10A |
2,753 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.34' (1.02m) | - | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3DDH-2006GIDC CABLE - AKR20H/AE20G/AKR20H |
4,168 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

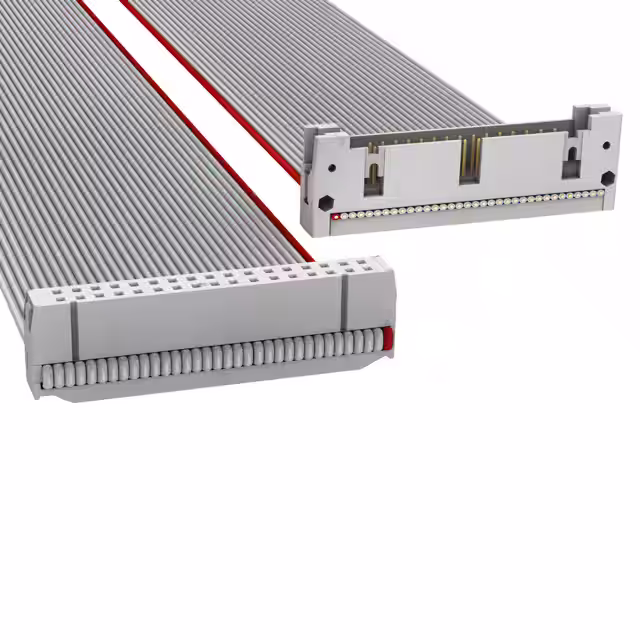

H3BKH-3436GIDC CBL - HHSR34H/AE34G/HHPK34H |
3,580 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

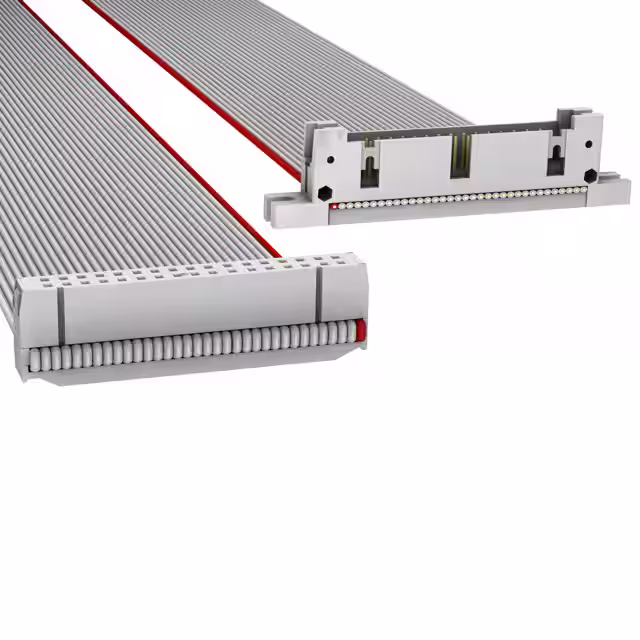

H3BWH-3436GIDC CBL - HHSR34H/AE34G/HHPL34H |
4,398 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3KKH-1636MIDC CBL - HHPK16H/AE16M/HHPK16H |
2,250 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3WWH-1636MIDC CBL - HHPL16H/AE16M/HHPL16H |
1,056 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
