Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

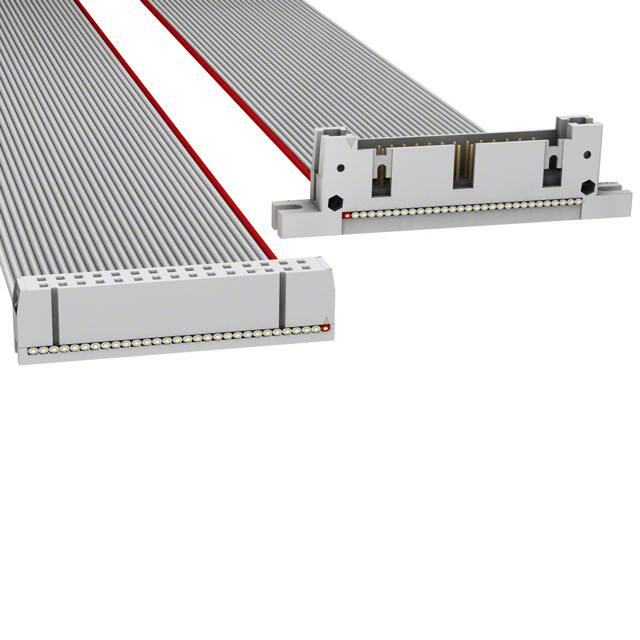

H3AWH-3036GIDC CBL - HHSC30H/AE30G/HHPL30H |
2,277 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H1KXH-3436GIDC CBL - HHPK34H/AE34G/X |
2,937 |
|
Datasheet |
- | Bulk | Active | Plug to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

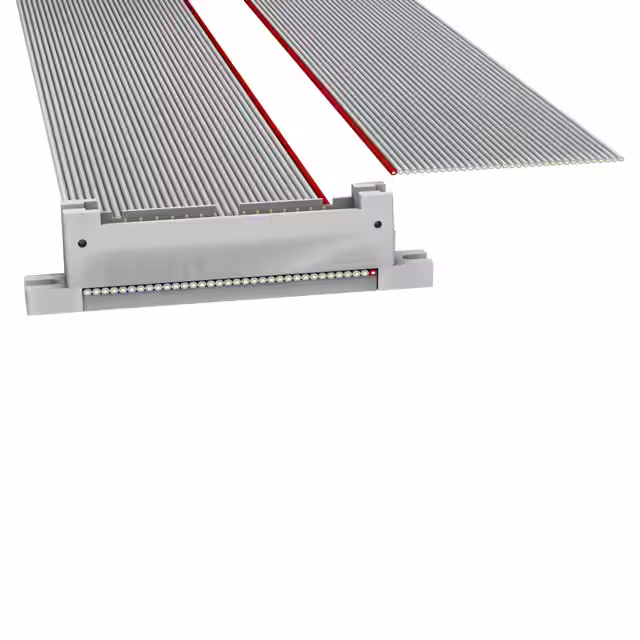

H1WXH-3436GIDC CBL - HHPL34H/AE34G/X |
2,856 |
|
Datasheet |
- | Bulk | Active | Plug to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
TCSD-03-S-18.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,471 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 6 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-06-D-04.00-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,785 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-08-S-10.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
1,512 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-S-10.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,205 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-S-08.50-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,491 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.708' (215.90mm, 8.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-S-12.00-01-L-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,838 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCSD-06-S-12.00-01-P012MM DOUBLE ROW FEMALE IDC ASSEMB |
3,721 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-06-S-12.00-01-P032MM DOUBLE ROW FEMALE IDC ASSEMB |
2,090 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-06-S-12.00-01-P062MM DOUBLE ROW FEMALE IDC ASSEMB |
2,287 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-06-T-02.20-01-RW2MM DOUBLE ROW MALE IDC ASSEMBLY |
4,165 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-10-T-04.00-01-F2MM DOUBLE ROW MALE IDC ASSEMBLY |
4,965 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S1SST-08-28-GF-20.00-LMICRO MATE SINGLE ROW DISCRETE T |
3,332 |
|
Datasheet |
Micro Mate™ S1SST | Bulk | Active | Socket to Individual Wire Leads | 8 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
2264291084MICRO-FIT3.0 R-S 8CKT 600MM DISC |
4,767 |
|
- |
Micro-Fit 3.0 226429 | Bulk | Active | Socket to Individual Wire Leads | 8 | 1 | 0.118" (3.00mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
|
A3AAG-2418GIDC CABLE-ASC24G/ AE24G / ASC24G |
4,836 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
A3CCA-2418GIDC CABLE-AKN24A/ AE24G / AKN24A |
4,879 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3CCB-1406GIDC CABLE- AKC14B/AE14G/AKC14B |
4,891 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-05.12-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,815 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.427' (130.00mm, 5.12") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
