Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IDMD-05-D-04.17SLIM BODY DOUBLE-ROW IDC MALE AS |
4,772 |
|
Datasheet |
IDMD | Bulk | Active | Plug to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|

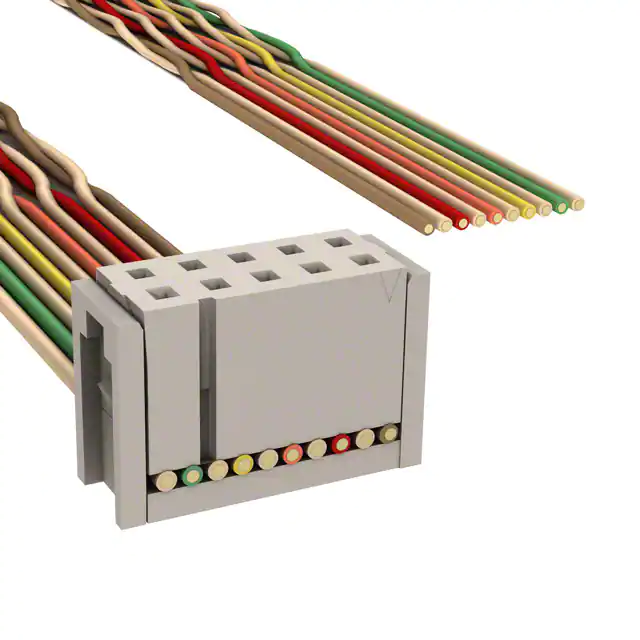

M1AXA-1040KIDC CABLE - MSC10A/MC10F/X |
4,932 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.34' (1.02m) | - | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M1CXA-1040KIDC CABLE - MKC10A/MC10F/X |
1,344 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.34' (1.02m) | Polarizing Key | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A1AXG-2036MIDC CABLE- ASC20G/ AE20M / X |
2,927 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
M3BBA-1036JIDC CABLE - MSR10A/MC10G/MSR10A |
1,601 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3DDA-1036JIDC CABLE - MKR10A/MC10G/MKR10A |
2,227 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

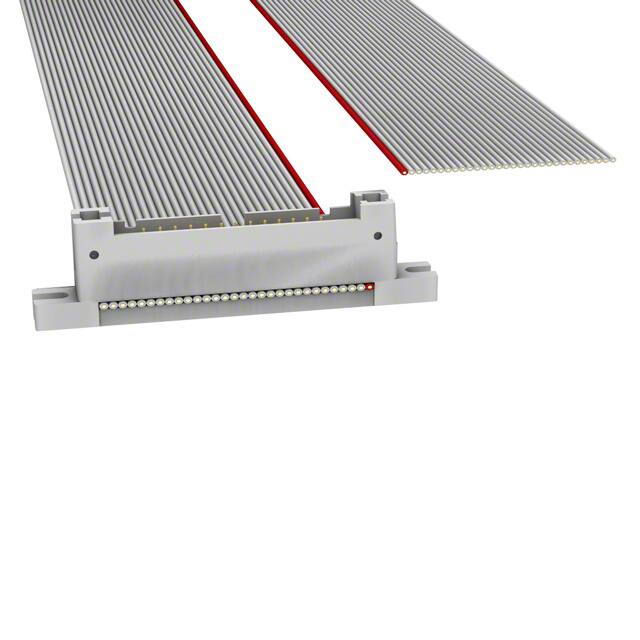

H1WXH-3036GIDC CBL - HHPL30H/AE30G/X |
1,332 |
|
Datasheet |
- | Bulk | Active | Plug to Cable | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

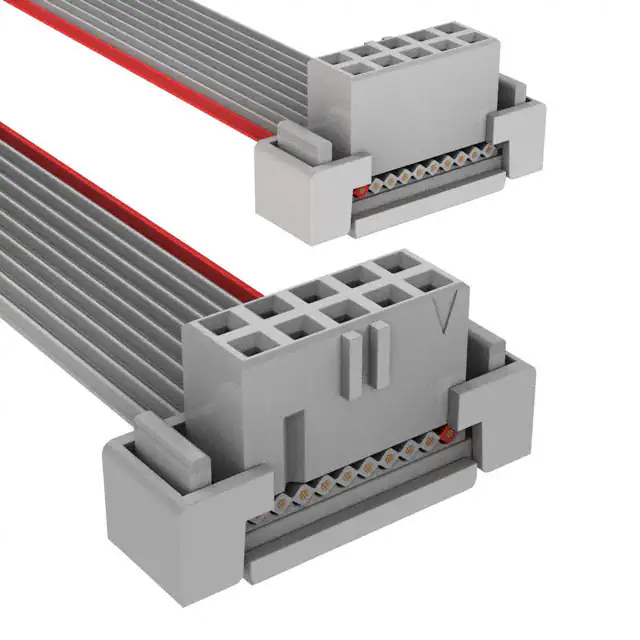

158210-0120-3625/10-D-3CABLE 10POS SOCKET TO SOCKET 3" |
2,979 |
|
Datasheet |
158 | Bulk | Obsolete | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
FFSD-05-S-06.00-01-F-N.050 X .050 C.L. FEMALE IDC ASSE |
1,900 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 3.00µin (0.076µm) |
|
|
TCSD-05-D-02.50-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,562 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.208' (63.50mm, 2.50") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-D-02.50-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,110 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.208' (63.50mm, 2.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-D-02.50-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,863 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.208' (63.50mm, 2.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-05-D-05.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,988 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-08-T-03.00-01-F-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
4,352 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-07-22-F-08.00-S-PMINI-MATE CABLE ASSEMBLY, 0.100" |
1,797 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 14 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
HCMS-08-T-10.00-02IDC SOCKET AND TERMINAL CABLE AS |
2,930 |
|
Datasheet |
HCM | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
MMSD-07-20-F-06.00-S-PMINI-MATE CABLE ASSEMBLY, 0.100" |
4,259 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 14 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
TCSD-07-S-10.00-01-F-N-SRIDC SOCKET CABLE ASSEMBLIES, 2.0 |
3,504 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TFSD-05-28-G-05.91-S.050" TIGER EYE DOUBLE ROW DISCR |
3,744 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SMSD-05-24C-L-06.00-S.100" MINI MATE UNIVERSAL DOUBLE |
3,211 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Individual Wire Leads | 10 | 2 | 0.100" (2.54mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
