Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

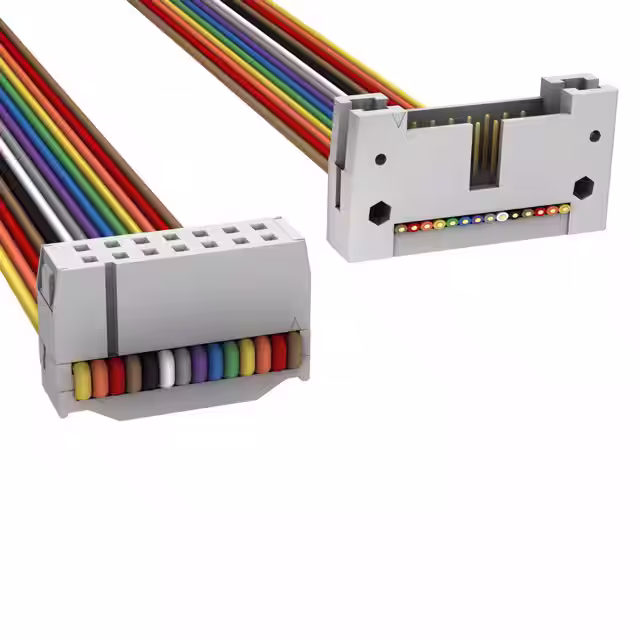

H3BKH-1436MIDC CBL - HHSR14H/AE14M/HHPK14H |
3,017 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief (Socket); Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
TCSD-06-S-10.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,174 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
SFSD-07-30-G-12.00-D-NUS.050 SOCKET DISCRETE CABLE ASSEM |
3,822 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.050" (1.27mm) | - | 1.00' (304.80mm) | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-05-D-04.80-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,586 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-10-D-02.00-01-RF2MM DOUBLE ROW MALE IDC ASSEMBLY |
4,465 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
T2SD-05-24C-L-06.00-S2.00 MM TIGER EYE DOUBLE ROW DIS |
1,568 |
|
Datasheet |
Tiger Eye™ T2SD | Bulk | Active | Socket to Individual Wire Leads | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S1SDT-06-28-GF-06.00-LMICRO MATE DOUBLE ROW DISCRETE T |
1,447 |
|
Datasheet |
Micro Mate™ S1SDT | Bulk | Active | Socket to Individual Wire Leads | 12 | 2 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|

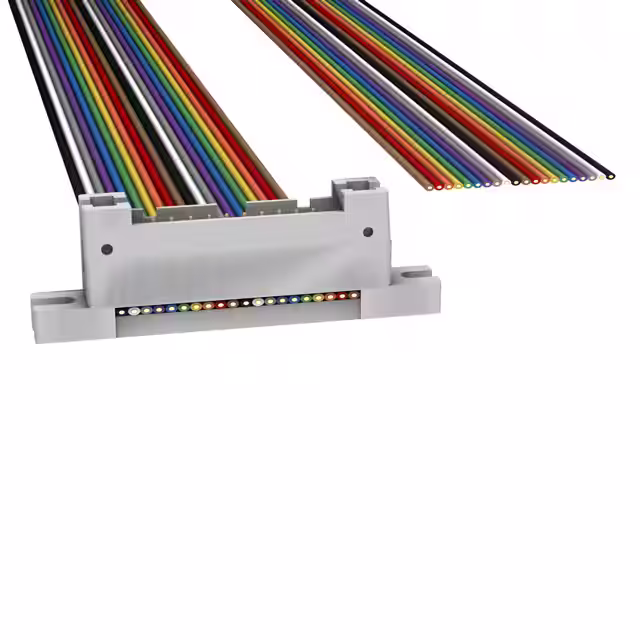

H1WXH-2036MIDC CBL - HHPL20H/AE20M/X |
4,522 |
|
Datasheet |
- | Bulk | Active | Plug to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DKH-1436MIDC CBL - HHKR14H/AE14M/HHPK14H |
1,528 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
C1AXS-1436GIDC CABLE - CSC14S/AE14G/X |
2,302 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
H3KKH-1018GIDC CBL - HHPK10H/AE10G/HHPK10H |
1,925 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-05-D-02.36-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,721 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.197' (59.94mm, 2.36") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-07-S-09.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,831 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.750' (228.60mm, 9.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-07-S-18.25-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,990 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
SFSS-06-28-G-10.00-SRSINGLE ROW DISCRETE WIRE ASSEMBL |
4,458 |
|
Datasheet |
Tiger Eye™ SFSS | Bulk | Active | Socket to Individual Wire Leads | 6 | 1 | 0.050" (1.27mm) | - | 0.833' (254.00mm, 10.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
32332297-001CONNECTOR ELECTRICAL HPM WIRE HA |
4,319 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2153251102MINIFIT JR DR R-R 10 CIRCUIT 300 |
3,225 |
|
Datasheet |
Mini-Fit Jr 215325 | Bag | Active | Socket to Socket | 10 | 2 | 0.165" (4.19mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 35.0µin (0.89µm) |
|
2162921043STANDARD .093 4 CIRCUIT P TO P 6 |
3,610 |
|
Datasheet |
Standard .093" 216292 | Bag | Active | Socket to Socket | 4 | 1 | 0.264" (6.70mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 20.0µin (0.51µm) |
|
|
M2MXT-6018JIDC CABLE - MDM60T/MC60G/X |
2,167 |
|
Datasheet |
- | Bulk | Obsolete | PCB to Cable | 60 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
A3CCB-2006MIDC CABLE- AKC20B/AE20M/AKC20B |
4,160 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
