Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TFSD-05-30-F-11.81-S.050" TIGER EYE DOUBLE ROW DISCR |
1,626 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
HCSD-06-S-06.00-01-NIDC SOCKET AND TERMINAL CABLE AS |
4,279 |
|
Datasheet |
HCS | Bulk | Active | Socket to Cable | 12 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
T2SD-07-24-L-03.25-S2.00 MM TIGER EYE DOUBLE ROW DIS |
3,516 |
|
Datasheet |
Tiger Eye™ T2SD | Bulk | Active | Socket to Individual Wire Leads | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSS-25-28-G-03.26-SSINGLE ROW DISCRETE WIRE ASSEMBL |
3,742 |
|
Datasheet |
Tiger Eye™ SFSS | Bulk | Active | Socket to Individual Wire Leads | 25 | 1 | 0.050" (1.27mm) | - | 0.272' (82.80mm, 3.26") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-05-28C-F-06.00-S.050" TIGER EYE DOUBLE ROW DISCR |
3,163 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 0.500' (152.40mm, 6.00") | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TFSS-02-28-H-10.00-D-NUS.050" TIGER EYE SINGLE ROW DISCR |
3,592 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Plug | 2 | 1 | 0.050" (1.27mm) | - | 0.833' (254.00mm, 10.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
10152729-001LFMINITEK 5.7PWR CABLE ASS |
3,468 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

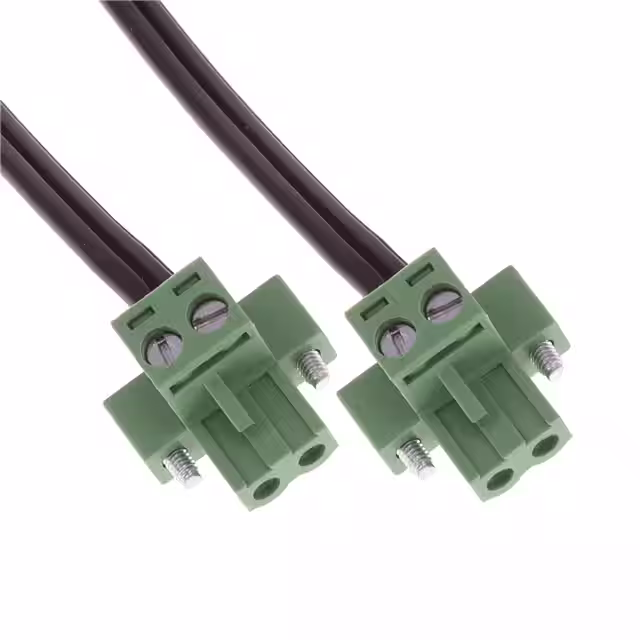

PHX19121840M3PHX19121842 POS CBL ASSY SKT-SKT 11.81" |
2,634 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 2 | 1 | 0.200" (5.08mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual (Round) | - | - | Crimp | Tin | - |
|
|
A3DDA-1618GIDC CABLE - AKP16A/AE16G/AKP16A |
1,566 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

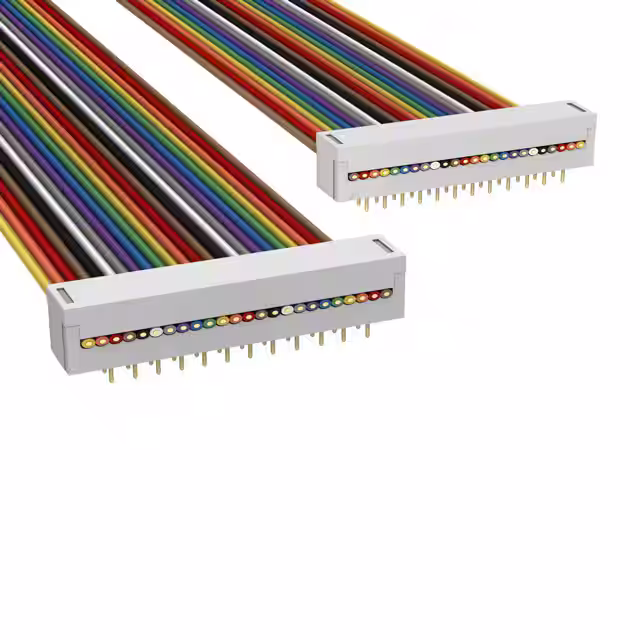

H6MMH-2436MDIP CABLE - HDM24H/AE24M/HDM24H |
4,428 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H8MMH-2436MDIP CABLE - HDM24H/AE24M/HDM24H |
4,443 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
TCMD-22-S-02.00-01CABLE ASSEM 2MM 44POS SGL END 2" |
3,929 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 44 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
H3KKH-2606MIDC CBL - HHPK26H/AE26M/HHPK26H |
1,317 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3WWH-2606MIDC CBL - HHPL24H/AE26M/HHPL26H |
1,799 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A1BXB-1436GIDC CABLE- ASR14B/AE14G/X |
4,043 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-S-11.80-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,820 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.983' (299.72mm, 11.80") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-04-D-04.50-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,973 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.375' (114.30mm, 4.50") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-04-D-04.50-01-F-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,402 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.375' (114.30mm, 4.50") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-17-S-04.00-01-F-N-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,095 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-09-S-06.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
1,267 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 18 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
