Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-04-S-18.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,093 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-06-D-03.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,851 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-20-S-02.20-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,977 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSS-04-D-20.00INSULATION DISPLACEMENT SOCKET C |
3,331 |
|
- |
IDSS | Bulk | Active | Socket to Socket | 4 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
L3DKH-1436NIDC CBL - LKR14H/CN218GR/LPK14H |
2,724 |
|
- |
- | Bulk | Active | Socket to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TFSS-04-30-G-04.00-D-NUS.050" TIGER EYE SINGLE ROW DISCR |
2,629 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Plug | 4 | 1 | 0.050" (1.27mm) | - | 0.333' (101.60mm, 4.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
T2SD-05-28-L-12.00-S2.00 MM TIGER EYE DOUBLE ROW DIS |
3,974 |
|
Datasheet |
Tiger Eye™ T2SD | Bulk | Active | Socket to Individual Wire Leads | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S2SD-05-24-L-07.87-S2.00 MM TIGER EYE DOUBLE ROW DIS |
2,982 |
|
Datasheet |
Tiger Eye™ S2SD | Bulk | Active | Socket to Individual Wire Leads | 10 | 2 | 0.079" (2.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|

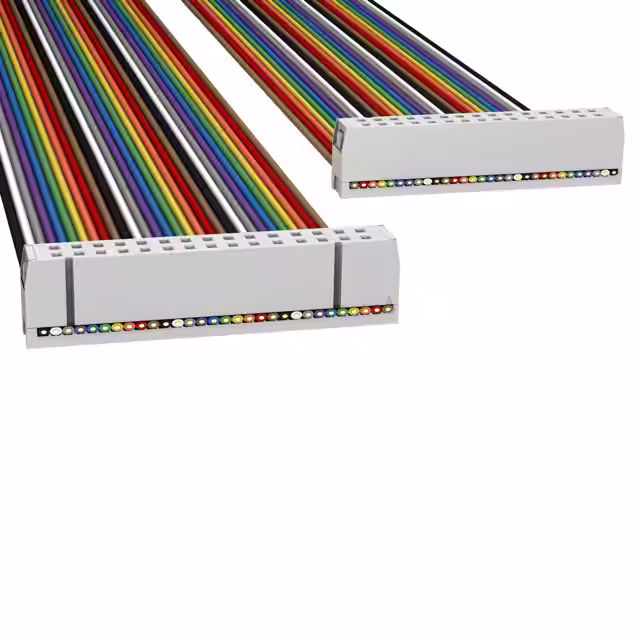

H3AAH-3036MIDC CBL - HHSC30H/AE30M/HHSC30H |
1,990 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-05-S-08.50-012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,002 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.708' (215.90mm, 8.50") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-S-08.50-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,043 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.708' (215.90mm, 8.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-S-03.25-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,211 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.271' (82.55mm, 3.25") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-S-14.20-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,923 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.18' (360.68mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-S-12.00-01-F-N-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,984 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
L3DKH-2606NIDC CBL - LKR26H/CN221GR/LPK26H |
3,149 |
|
- |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TFSS-07-30-H-05.00-S.050" TIGER EYE SINGLE ROW DISCR |
1,796 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 7 | 1 | 0.050" (1.27mm) | - | 0.417' (127.00mm, 5.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
HCMD-06-T-02.00-02-T-RWIDC SOCKET AND TERMINAL CABLE AS |
2,535 |
|
Datasheet |
HCM | Bulk | Active | Socket to Plug | 12 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.167' (50.80mm, 2.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
HCMS-09-T-06.00-02-P08IDC SOCKET AND TERMINAL CABLE AS |
2,285 |
|
Datasheet |
HCM | Bulk | Active | Socket to Plug | 18 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
HCMD-08-S-03.75-01IDC SOCKET AND TERMINAL CABLE AS |
2,822 |
|
Datasheet |
HCM | Bulk | Active | Plug to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
HCSS-05-S-18.00-01-N-GIDC SOCKET AND TERMINAL CABLE AS |
2,256 |
|
Datasheet |
HCS | Bulk | Active | Socket to Cable | 5 | 1 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
