Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFSD-10-30C-G-12.00-SDOUBLE ROW DISCRETE WIRE ASSEMBL |
3,368 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 20 | 2 | 0.050" (1.27mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCSD-04-S-09.45-01-RN1IDC SOCKET CABLE ASSEMBLIES, 2.0 |
2,174 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.787' (240.00mm, 9.45") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
SFSD-07-28C-G-03.25-SLDOUBLE ROW DISCRETE WIRE ASSEMBL |
3,765 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 14 | 2 | 0.050" (1.27mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S2SD-04-24-L-06.00-SR2.00 MM TIGER EYE DOUBLE ROW DIS |
3,307 |
|
Datasheet |
Tiger Eye™ S2SD | Bulk | Active | Socket to Individual Wire Leads | 8 | 2 | 0.079" (2.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
H3WWH-1018GIDC CBL - HHPL10H/AE10G/HHPL10H |
4,238 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-05-S-09.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,269 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.750' (228.60mm, 9.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-S-09.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,631 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.750' (228.60mm, 9.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-04-D-04.00-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
4,350 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-04-D-04.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,859 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSS-03-D-20.00INSULATION DISPLACEMENT SOCKET C |
1,243 |
|
- |
IDSS | Bulk | Active | Socket to Socket | 3 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
L3DKH-1618NIDC CBL - LKR16H/CN219GR/LPK16H |
1,639 |
|
- |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
IDMD-07-D-06.00-T-G-RSLIM BODY DOUBLE-ROW IDC MALE AS |
3,469 |
|
Datasheet |
IDMD | Bulk | Active | Plug to Plug, Reversed | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
IDMD-07-D-06.00-T-G-RWSLIM BODY DOUBLE-ROW IDC MALE AS |
3,425 |
|
Datasheet |
IDMD | Bulk | Active | Plug to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
MMSDT-06-20-F-60.00-S-KMINI-MATE CABLE ASSEMBLY, FEP |
1,721 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Individual Wire Leads | 12 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
TFSST-05-28-G-15.00-S.050" TIGER EYE SINGLE ROW DISCR |
1,329 |
|
Datasheet |
Tiger Eye™ TFSST | Bulk | Active | Plug to Individual Wire Leads | 5 | 1 | 0.050" (1.27mm) | - | 1.25' (381.00mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S1SS-10-28-GF-11.00-L1MICRO MATE SINGLE ROW DISCRETE W |
4,482 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 10 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|

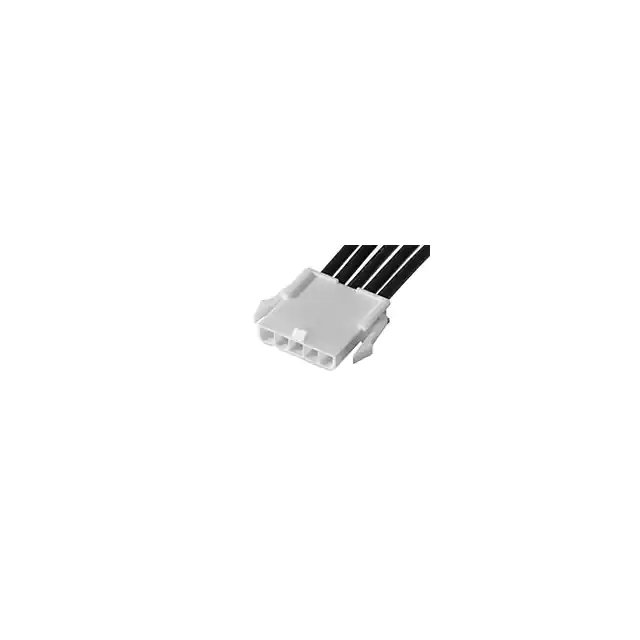

2153222053MINIFIT JR SR M-M 5 CIRCUIT 600M |
1,423 |
|
Datasheet |
Mini-Fit Jr 215322 | Bag | Active | Plug to Plug | 5 | 1 | 0.165" (4.19mm) | - | 1.97' (600.00mm) | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
A1CXH-1436GIDC CABLE - AKC14H/AE14G/X |
4,670 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DDS-3436MIDC CBL - HHKR34S/AE34M/HHKR34S |
2,080 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
A1CXB-1436GIDC CABLE- AKC14B/AE14G/X |
3,390 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
