Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-08-S-03.50-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,780 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.292' (88.90mm, 3.50") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-S-05.00-01-F-N-B102MM DOUBLE ROW FEMALE IDC ASSEMB |
1,929 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-S-08.00-01-P102MM DOUBLE ROW FEMALE IDC ASSEMB |
4,306 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-09-S-03.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,744 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 18 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
SFSD-05-30C-G-03.26-D-NDX.050 SOCKET DISCRETE CABLE ASSEM |
3,802 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.050" (1.27mm) | - | 0.272' (82.80mm, 3.26") | Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
IDSD-02-D-14.00-GINSULATION DISPLACEMENT TERMINAL |
1,780 |
|
- |
IDSD | Bulk | Active | Socket to Socket | 4 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.17' (355.60mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
L3CKH-1618NIDC CBL - LKC16H/CN219GR/LPK16H |
4,493 |
|
- |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
S1SDT-03-28-GF-10.00-L1MICRO MATE DOUBLE ROW DISCRETE T |
4,124 |
|
Datasheet |
Micro Mate™ S1SDT | Bulk | Active | Socket to Socket | 6 | 2 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TFSDT-04-28-G-05.00-S.050" TIGER EYE DOUBLE ROW DISCR |
2,143 |
|
Datasheet |
Tiger Eye™ TFSDT | Bulk | Active | Plug to Individual Wire Leads | 8 | 2 | 0.050" (1.27mm) | - | 0.417' (127.00mm, 5.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
T2SD-05-24-L-10.00-S2.00 MM TIGER EYE DOUBLE ROW DIS |
1,344 |
|
Datasheet |
Tiger Eye™ T2SD | Bulk | Active | Socket to Individual Wire Leads | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCSD-04-S-11.00-01-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
3,289 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.917' (279.40mm, 11.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
PMSD-03-16-K-07.00-D-LUS.165" POWER MATE DOUBLE ROW DISC |
3,416 |
|
Datasheet |
Power Mate® PMSD | Bulk | Active | Socket to Socket | 6 | 2 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|

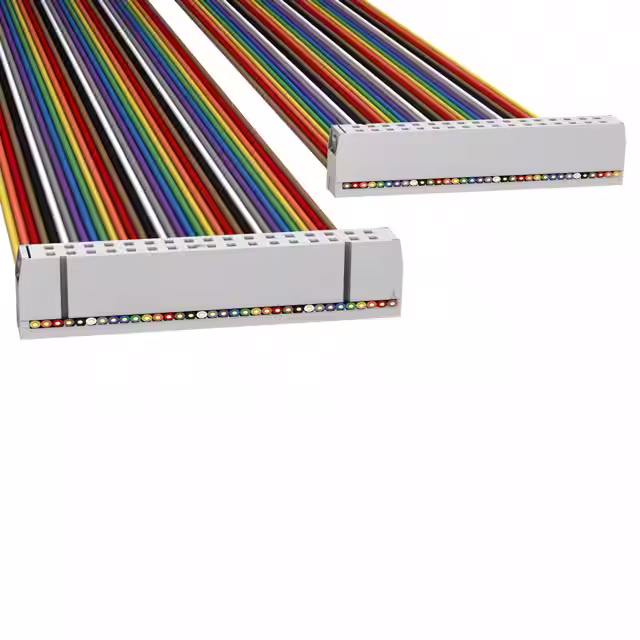

H3AAH-3436MIDC CBL - HHSC34H/AE34M/HHSC34H |
2,214 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-05-S-14.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,822 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.17' (355.62mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-06-S-15.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,470 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.25' (381.00mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-13-S-06.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,885 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-13-S-06.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,013 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-03-T-04.70-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,413 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 6 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-20-S-02.50-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,025 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
SFSD-03-28-G-31.50-DR-NDXDOUBLE ROW DISCRETE WIRE ASSEMBL |
1,889 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 6 | 2 | 0.050" (1.27mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
