Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

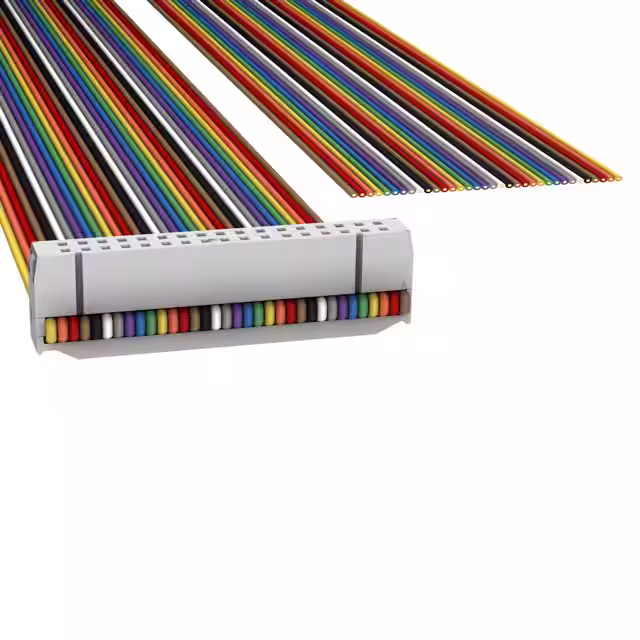

H1BXH-3436MIDC CBL - HHSR34H/AE34M/X |
3,901 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3CCS-5036GIDC CBL - HHKC50S/AE50G/HHKC50S |
3,554 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
A1CXB-1036MIDC CABLE- AKC10B/AE10M/X |
1,066 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
TCMD-15-S-04.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,669 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
T1SD-03-28-GF-02.0-T3CBL ASSY 1MM 6POS M TO F |
4,147 |
|
- |
Micro Mate™ T1SD | Bulk | Active | Socket to Plug | 6 | 2 | 0.039" (1.00mm) | - | 0.167' (50.80mm, 2.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMTD-02-20-L-20.00-D-TUS.100" MINI MATE DOUBLE ROW DISCR |
2,730 |
|
Datasheet |
Mini Mate® MMTD | Bulk | Active | Socket to Plug | 4 | 2 | 0.100" (2.54mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S1SST-14-28-GF-01.80-L1MICRO MATE SINGLE ROW DISCRETE T |
4,207 |
|
Datasheet |
Micro Mate™ S1SST | Bulk | Active | Socket to Socket | 14 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
IDMS-10-T-06.00-GSLIM BODY SINGLE-ROW IDC MALE AS |
3,845 |
|
Datasheet |
IDMS | Bulk | Active | Socket to Plug | 10 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
SMSS-05-24-L-06.00-D-KDS.100" MINI MATE UNIVERSAL SINGLE |
1,606 |
|
Datasheet |
Mini Mate® SMSS | Bulk | Active | Socket to Socket | 5 | 1 | 0.100" (2.54mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
T2SD-06-24-L-03.00-S2.00 MM TIGER EYE DOUBLE ROW DIS |
3,497 |
|
Datasheet |
Tiger Eye™ T2SD | Bulk | Active | Socket to Individual Wire Leads | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSS-05-28C-G-12.00-S.050" TIGER EYE SINGLE ROW DISCR |
3,668 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 5 | 1 | 0.050" (1.27mm) | - | 1.00' (304.80mm) | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
0151371503MINI-LOCK 15 CIRCUIT 300MM |
2,847 |
|
Datasheet |
Mini-Lock 15137 | Bulk | Active | Socket to Socket | 15 | 1 | 0.098" (2.50mm) | - | 0.984' (300.00mm, 11.81") | Friction Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | 35.4µin (0.90µm) |
|
2147522102MICROFIT 3.0 SR P-P 10CKT 300 MM |
2,233 |
|
Datasheet |
Micro-Fit 3.0 214752 | Bulk | Active | Plug to Plug | 10 | 1 | 0.118" (3.00mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
2147502102MICROFIT 3.0 SR R-R 10CKT 300 MM |
1,623 |
|
Datasheet |
Micro-Fit 3.0 214750 | Bulk | Active | Socket to Socket | 10 | 1 | 0.118" (3.00mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
M3CCA-2006RIDC CABLE - MKC20A/MC20M/MKC20A |
4,416 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
H1DXH-3436MIDC CBL - HHKR34H/AE34M/X |
4,212 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

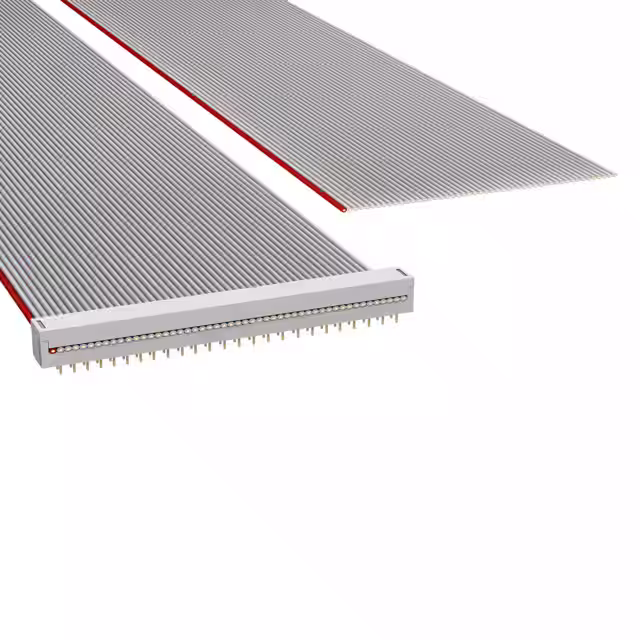

H2MXS-5036GDIP CBL - HHDM40S/AE50G/X |
2,811 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H1KXH-2436GIDC CBL - HHPK24H/AE24G/X |
4,420 |
|
Datasheet |
- | Bulk | Active | Plug to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
M2MXH-2018RIDC CABLE - MDM20H/MC20M/X |
4,669 |
|
Datasheet |
- | Bulk | Obsolete | PCB to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCMD-05-T-02.00-01-F-RW2MM DOUBLE ROW MALE IDC ASSEMBLY |
1,087 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
