Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMSS-08-24-F-03.25-D-K-LUSMINI-MATE CABLE ASSEMBLY, 0.100" |
4,133 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Socket | 8 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
MMTS-04-20-F-06.00-S.100" MINI MATE SINGLE ROW DISCR |
3,350 |
|
Datasheet |
Mini Mate® MMTS | Bulk | Active | Plug to Individual Wire Leads | 4 | 1 | 0.100" (2.54mm) | - | - | - | Black, Individual | Shielded | - | Crimp | Gold | Flash |
|
|
MMSD-06-22-F-36.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
3,352 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 12 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
MMSS-10-24-L-04.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
1,712 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Individual Wire Leads | 10 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSS-03-28C-F-06.00-S.050" TIGER EYE SINGLE ROW DISCR |
1,505 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 3 | 1 | 0.050" (1.27mm) | - | 0.500' (152.40mm, 6.00") | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
10119244-N0021YYLFMINITEK CTW CABLE ASSY |
1,387 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
092321163016CCT QF50 RIBBON CABLE ASSY |
1,422 |
|
Datasheet |
QF 50 92321 | Bag | Obsolete | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.984' (300.00mm, 11.81") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
A24KRW24KRW26E203CJUMPER ASSEMBLY SKT-SKT 24POS 8" |
1,949 |
|
Datasheet |
KRW | Bulk | Obsolete | Socket to Socket | 24 | 2 | 0.079" (2.00mm) | - | 0.667' (203.20mm, 8.00") | - | Blue, Individual | Unshielded | Adapter, Extension | IDC | - | - |
|
|
A24KRW24KRW26E203DJUMPER ASSEMBLY SKT-SKT 24POS 8" |
4,481 |
|
Datasheet |
KRW | Bulk | Obsolete | Socket to Socket | 24 | 2 | 0.079" (2.00mm) | - | 0.667' (203.20mm, 8.00") | - | Blue, Individual | Unshielded | Adapter, Extension | IDC | - | - |
|

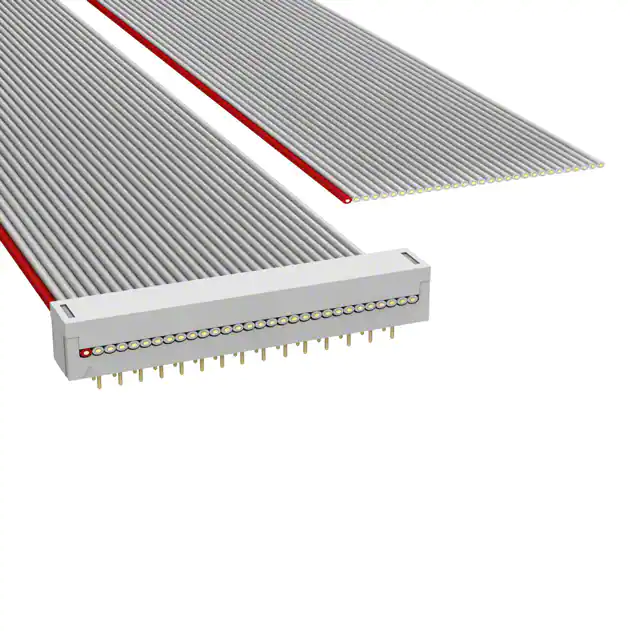

H2MXS-3036GDIP CBL - HHDM30S/AE30G/X |
3,557 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H2MXH-3036GDIP CABLE - HDM30H/AE30G/X |
3,343 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-S-04.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,045 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-S-04.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,196 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-08-S-03.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,845 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S1SS-06-28-GF-07.00-L1MICRO MATE SINGLE ROW DISCRETE W |
2,637 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 6 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
2M BD AC-020-3625-006.0-00-CB-00-2MOLDED ASSEMBLY 2M SERIES 2M BD |
3,649 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2153202061MINIFIT JR SR R-R 6 CIRCUIT 150M |
1,338 |
|
Datasheet |
Mini-Fit Jr 215320 | Bag | Active | Socket to Socket | 6 | 1 | 0.165" (4.19mm) | - | 0.492' (150.00mm, 5.91") | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
2153262081MINIFIT JR DR R-S 8 CIRCUIT 150M |
2,741 |
|
Datasheet |
Mini-Fit Jr 215327 | Bag | Active | Socket to Cable | 8 | 2 | 0.165" (4.19mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
A3AAG-1418GIDC CABLE-ASC14G/ AE14G / ASC14G |
4,691 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
A3CCG-1006MIDC CABLE- AKC10G/ AE10M / AKC10 |
2,232 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
