Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2MXT-2606GADM26T/AE26G/X |
2,482 |
|
Datasheet |
- | Bulk | Obsolete | DIP to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
H1CXH-2036MIDC CBL - HHKC20H/AE20M/X |
1,822 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|

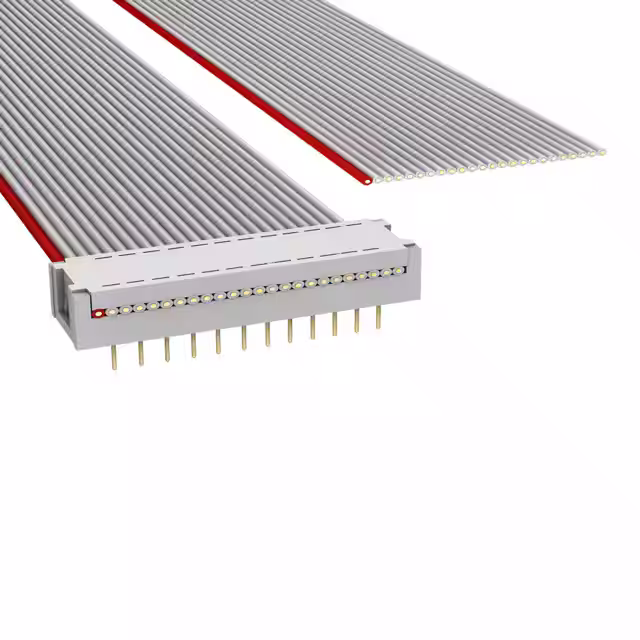

H2PXS-2436GDIP CABLE - HDP24S/AE24G/X |
4,664 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
|
|
H4PXS-2436GDIP CABLE - HDP24S/AE24G/X |
4,854 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
|
|
IDSS-10-S-05.00-GSLIM BODY SINGLE-ROW IDC SOCKET |
1,277 |
|
Datasheet |
IDSS | Bulk | Active | Socket to Cable | 10 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S1SS-06-28-GF-03.94-LMICRO MATE SINGLE ROW DISCRETE W |
2,826 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 6 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
A24KRW24KRW26E152CJUMPER ASSEMBLY SKT-SKT 24POS 6" |
1,297 |
|
Datasheet |
KRW | Bulk | Obsolete | Socket to Socket | 24 | 2 | 0.079" (2.00mm) | - | 0.500' (152.40mm, 6.00") | - | Blue, Individual | Unshielded | Adapter, Extension | IDC | - | - |
|
|
2M BD AC-020-3625-008.5-00-CB-00-2MOLDED ASSEMBLY 2M SERIES 2M BD |
1,007 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
H6MMH-5006GDIP CABLE - HDM50H/AE50G/HDM50H |
4,146 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H8MMH-5006GDIP CABLE - HDM50H/AE50G/HDM50H |
4,710 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-06-S-02.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,113 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
MMSD-02-20-L-139.0-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
3,433 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 4 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
IDSS-06-S-10.00-T-G-ST2-RWSLIM BODY SINGLE-ROW IDC SOCKET |
1,829 |
|
Datasheet |
IDSS | Bulk | Active | Socket to Cable | 6 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
TCSD-06-S-02.00-01-F-N-RWIDC SOCKET CABLE ASSEMBLIES, 2.0 |
1,847 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
H3BKH-1006GIDC CBL - HHSR10H/AE10G/HHPK10H |
2,749 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DKH-1006GIDC CBL - HHKR10H/AE10G/HHPK10H |
3,205 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-02-S-04.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,779 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 4 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
L1CXH-1036NIDC CBL -LKC10H/CN217GR/X |
3,278 |
|
- |
- | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
MMSS-05-24C-L-72.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
3,056 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Individual Wire Leads | 5 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|

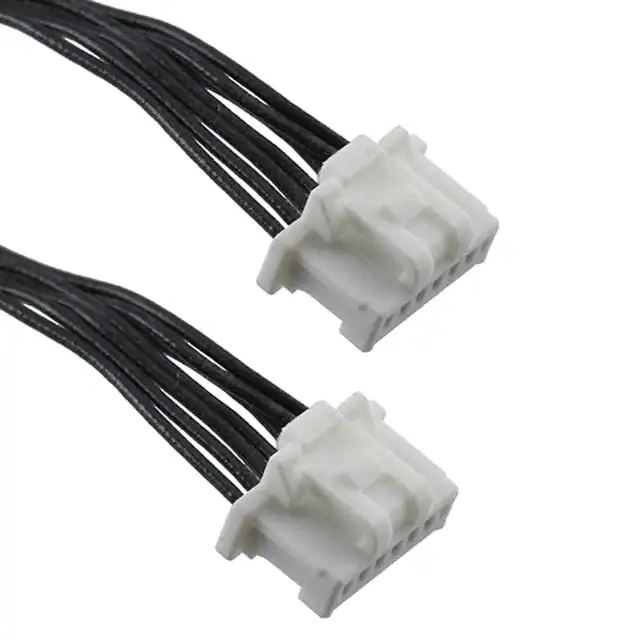

0151330700PICO-CLASP 7 CIRCUIT 50MM |
4,445 |
|
Datasheet |
Pico-Clasp 15133 | Bag | Active | Socket to Socket | 7 | 1 | - | 0.039" (1.00mm) | 0.164' (50.00mm, 1.97") | - | Black, Individual | - | - | Crimp | Tin | 39.4µin (1.00µm) |
