Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2264291082MICRO-FIT3.0 R-S 8CKT 150MM DISC |
1,543 |
|
- |
Micro-Fit 3.0 226429 | Bulk | Active | Socket to Individual Wire Leads | 8 | 1 | 0.118" (3.00mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
|
092315264726CC PICOFLEX 470MM LONG |
4,198 |
|
Datasheet |
Picoflex 92315 | Bag | Obsolete | Socket to Socket | 26 | 1 | 0.050" (1.27mm) | 0.050" (1.27mm) | 1.54' (470.00mm) | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 80.0µin (2.03µm) |
|
H3CCH-2436GIDC CBL - HHKC24H/AE24G/HHKC24H |
3,362 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
C3PPS-1036GIDC CABLE - CPC10S/AE10G/CPC10S |
3,215 |
|
Datasheet |
- | Bulk | Active | PCB to PCB | 10 | 4 | 0.050" (1.27mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
|
TCSD-02-S-06.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,991 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 4 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
L3DDH-1006NIDC CBL - LKR10H/CN217GR/LKR10H |
2,309 |
|
- |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
T1SS-02-28-GF-04.0-D11.00 MM MICRO MATE SINGLE ROW DI |
3,574 |
|
Datasheet |
Micro Mate™ T1SS | Bulk | Active | Socket to Plug | 2 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
PMSST-02-24-K-20.00-S.165" POWER MATE SINGLE ROW DISC |
1,945 |
|
Datasheet |
Power Mate® PMSST | Bulk | Active | Socket to Individual Wire Leads | 2 | 1 | 0.165" (4.19mm) | - | - | Polarizing Key | Blue, Individual | Unshielded | - | Crimp | Tin | - |
|
|
10121131-P0010YYLFCONN HEADER STRT |
2,001 |
|
Datasheet |
Minitek® | Tray | Active | Socket to Socket | 40 | 2 | - | - | 0.328' (100.00mm, 3.94") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
353-28-26-GR-00012CABLE ASSY PLUG IDC 26POS 12" |
3,172 |
|
Datasheet |
- | Bulk | Obsolete | Plug to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.00' (304.80mm) | - | - | - | - | IDC | Tin | - |
|

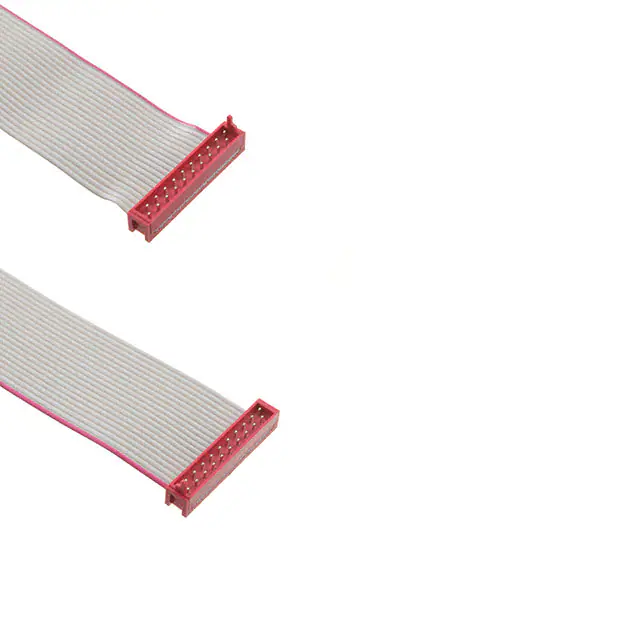

353-28-20-GR-00018CABLE ASSY PLUG IDC 20POS 18" |
4,857 |
|
Datasheet |
- | Bulk | Obsolete | Plug to Plug | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | - | - | - | IDC | Tin | - |
|
H3AAS-2636GIDC CBL - HHSC26S/AE26G/HHSC26S |
2,387 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
2196781054MICRO LATCH 2.0 R-R 5CKT 600MM D |
3,256 |
|
Datasheet |
219678 | Bulk | Active | Socket to Socket | 5 | 1 | - | 0.079" (2.00mm) | 1.97' (600.00mm) | - | Black | Unshielded | - | Crimp | Tin | - |
|
H2PXH-2018MDIP CABLE - HDP20H/AE20M/X |
1,769 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | DIP to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
|
T1SS-02-28-GF-10.0-T31.00 MM MICRO MATE SINGLE ROW DI |
1,275 |
|
Datasheet |
Micro Mate™ T1SS | Bulk | Active | Socket to Plug | 2 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSS-08-20-F-16.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
4,068 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Individual Wire Leads | 8 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
T1SD-02-28-GF-03.01.00 MM MICRO MATE DOUBLE ROW DI |
3,517 |
|
Datasheet |
Micro Mate™ T1SD | Bulk | Active | Socket to Plug | 4 | 2 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TFSS-06-28-F-03.00-S.050" TIGER EYE SINGLE ROW DISCR |
4,381 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 6 | 1 | 0.050" (1.27mm) | - | 0.250' (76.20mm, 3.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
0369231003IGRID 10 CIRCUIT 300MM |
2,353 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2196591083CGRID III R-S 8CKT 300MM DISC SN |
1,625 |
|
Datasheet |
C-Grid III 219659 | Bulk | Active | Socket to Cable | 8 | 2 | 0.100" (2.54mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | - |
