Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2153251061MINIFIT JR DR R-R 6 CIRCUIT 150M |
4,159 |
|
Datasheet |
Mini-Fit Jr 215325 | Bag | Active | Socket to Socket | 6 | 2 | 0.165" (4.19mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Tin | 35.0µin (0.89µm) |
|

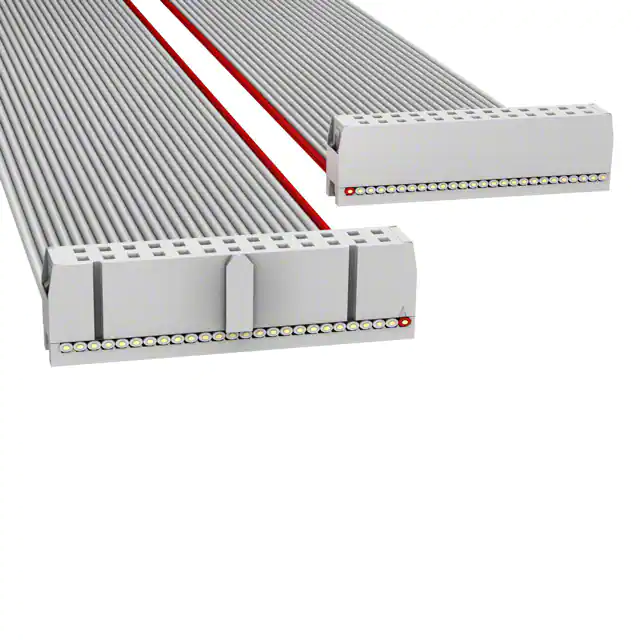

H3CCH-2636GIDC CBL - HHKC26H/AE26G/HHKC26H |
3,705 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
A1BXG-1436GIDC CABLE-ASR14G/ AE14G / X |
3,808 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
C3AAS-1018MIDC CABLE - CSC10S/AE10M/CSC10S |
1,562 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
0151360600MICROCLASP 6 CIRCUIT 50MM |
3,385 |
|
Datasheet |
MicroClasp 15136 | Bag | Active | Socket to Socket | 6 | 1 | 0.079" (2.00mm) | - | 0.164' (50.00mm, 1.97") | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin | 35.4µin (0.90µm) |
|
|
0151360601MICROCLASP 6 CIRCUIT 100MM |
3,242 |
|
Datasheet |
MicroClasp 15136 | Bag | Active | Socket to Socket | 6 | 1 | 0.079" (2.00mm) | - | 0.328' (100.00mm, 3.94") | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin | 35.4µin (0.90µm) |
|
|
0151360602MICROCLASP 6 CIRCUIT 150MM |
1,054 |
|
Datasheet |
MicroClasp 15136 | Bag | Active | Socket to Socket | 6 | 1 | 0.079" (2.00mm) | - | 0.492' (150.00mm, 5.91") | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin | 35.4µin (0.90µm) |
|
353-28-18-GR-00018CABLE ASSY PLUG IDC 18POS 18" |
2,543 |
|
Datasheet |
- | Bulk | Obsolete | Plug to Plug | 18 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | - | - | - | IDC | Tin | - |
|
2153202051MINIFIT JR SR R-R 5 CIRCUIT 150M |
4,557 |
|
Datasheet |
Mini-Fit Jr 215320 | Bag | Active | Socket to Socket | 5 | 1 | 0.165" (4.19mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
H3CCS-2636GIDC CBL - HHKC26S/AE26G/HHKC26S |
2,155 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
IDMS-04-T-02.00-T-GSLIM BODY SINGLE-ROW IDC MALE AS |
4,106 |
|
Datasheet |
IDMS | Bulk | Active | Socket to Plug | 4 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
SFSD-03-28-G-07.87-SDOUBLE ROW DISCRETE WIRE ASSEMBL |
1,066 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 6 | 2 | 0.050" (1.27mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
0369231201IGRID 12 CIRCUIT 100MM |
4,011 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TCSD-02-S-02.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,859 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 4 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
IDSS-02-D-04.00-T-RINSULATION DISPLACEMENT SOCKET C |
2,262 |
|
- |
IDSS | Bulk | Active | Socket to Socket, Reversed | 2 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
S1SST-05-28-GF-07.00-LMICRO MATE SINGLE ROW DISCRETE T |
2,732 |
|
Datasheet |
Micro Mate™ S1SST | Bulk | Active | Socket to Individual Wire Leads | 5 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
2153261081MINIFIT JR DR R-S 8 CIRCUIT 150M |
1,876 |
|
Datasheet |
Mini-Fit Jr 215327 | Bag | Active | Socket to Cable | 8 | 2 | 0.165" (4.19mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Tin | 35.0µin (0.89µm) |
|
|
353-28-24-GR-00012CABLE ASSY PLUG IDC 24POS 12" |
4,182 |
|
Datasheet |
- | Bulk | Obsolete | Plug to Plug | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.00' (304.80mm) | - | - | - | - | IDC | Tin | - |
|
|
355-28-22-GR-00012CABLE ASSY DIP IDC 22POS 12" |
2,285 |
|
Datasheet |
- | Bulk | Obsolete | Ribbon Cable, DIP Header | 22 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.00' (304.80mm) | - | - | - | - | IDC | Tin | - |
|
|
S1SS-04-28-GF-15.00-LMICRO MATE SINGLE ROW DISCRETE W |
1,878 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 4 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
