Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H0PPS-1018GDIP CABLE - HDP10S/AE10G/HDP10S |
2,097 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | - |
|
T1SS-02-28C-GF-03.01.00 MM MICRO MATE SINGLE ROW DI |
3,477 |
|
Datasheet |
Micro Mate™ T1SS | Bulk | Active | Socket to Plug | 2 | 1 | 0.039" (1.00mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
2262071044MINI-SPOX R-R 4CKT 600MM DISC SN |
2,094 |
|
- |
Mini-Spox 226207 | Bulk | Active | Socket to Socket | 4 | 1 | 0.098" (2.50mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 35.0µin (0.89µm) |
|
|
A20XAF20XAF22K152AJUMPER 20XAF-2S - 20XAF-2S 6" |
3,037 |
|
Datasheet |
XAF | Bulk | Active | Socket to Socket, Reversed | 20 | 1 | 0.098" (2.50mm) | - | 0.500' (152.40mm, 6.00") | - | Black, Individual | - | - | IDC | Tin | - |
|
|
2262061023MICRO-FIT3.0 R-R 2CKT 300MM DISC |
3,907 |
|
- |
Micro-Fit 3.0 226206 | Bulk | Active | Socket to Socket | 2 | 1 | 0.118" (3.00mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
H2MXH-1636GDIP CABLE - HDM16H/AE16G/X |
1,423 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | - |
|
|
MMSD-02-22-L-09.90-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
2,393 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 4 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
H6MMH-2018GDIP CABLE - HDM20H/AE20G/HDM20H |
2,698 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H8MMH-2018GDIP CABLE - HDM20H/AE20G/HDM20H |
1,312 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H3AAH-4006MIDC CBL - HHSC40H/AE40M/HHSC40H |
1,464 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
MMSST-02-20-L-04.00-D-K-LUSMINI-MATE CABLE ASSEMBLY, FEP |
2,386 |
|
Datasheet |
Mini Mate® MMSST | Bulk | Active | Socket to Socket | 2 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
2153252023MINIFIT JR DR R-R 2 CIRCUIT 600M |
2,539 |
|
Datasheet |
Mini-Fit Jr 215327 | Bag | Active | Socket to Socket | 2 | 2 | 0.165" (4.19mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|

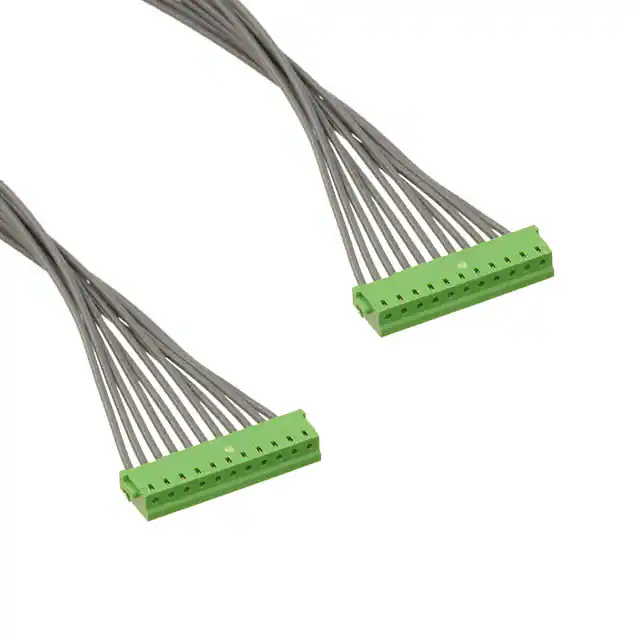

A11ZR11ZR28H152BJUMPER 11ZR-8M-P - 11ZR-8M-P 6" |
2,376 |
|
Datasheet |
ZR | Bulk | Active | Socket to Socket | 11 | 1 | 0.059" (1.50mm) | - | 0.500' (152.40mm, 6.00") | - | Gray, Individual | - | - | IDC | Tin | - |
|
H6MMS-4006GDIP CBL - HHDM40S/AE40G/HHDM40S |
4,536 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H8MMS-4006GDIP CBL - HHDM40S/AE40G/HHDM40S |
2,064 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H2PXH-1618GDIP CABLE - HDP16H/AE16G/X |
3,714 |
|
Datasheet |
- | Bulk | Obsolete | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
|
H4PXH-1618GDIP CABLE - HDP16H/AE16G/X |
3,376 |
|
Datasheet |
- | Bulk | Obsolete | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
|
MMSST-02-20-L-05.00-D-K-LDSMINI-MATE CABLE ASSEMBLY, FEP |
4,740 |
|
Datasheet |
Mini Mate® MMSST | Bulk | Active | Socket to Socket | 2 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSS-02-26-L-22.00-D-K-LDSMINI-MATE CABLE ASSEMBLY, 0.100" |
4,573 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Socket | 2 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
0151360400MICROCLASP 4 CIRCUIT 50MM |
3,645 |
|
Datasheet |
MicroClasp 15136 | Bag | Active | Socket to Socket | 4 | 1 | 0.079" (2.00mm) | - | 0.164' (50.00mm, 1.97") | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin | 35.4µin (0.90µm) |
