Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H1CXS-1036MIDC CBL - HHKC10S/AE10M/X |
2,022 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
H2MXS-1636GDIP CBL - HHDM16S/AE16G/X |
3,918 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
T1PST-03-28-GF-01.80-A1.00 MM MICRO MATE SINGLE ROW PA |
4,524 |
|
Datasheet |
Micro Mate™ T1PST | Bulk | Active | Socket to Plug | 3 | 1 | 0.039" (1.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
H2MXS-2618GDIP CABLE - HDM26S/AE26G/X |
1,868 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | DIP to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
|
MMSS-04-28C-F-13.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
2,766 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Individual Wire Leads | 4 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
S1SS-02-28-GF-02.50-LMICRO MATE SINGLE ROW DISCRETE W |
3,227 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 2 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
0451340201ULTRAFIT 2 CIRCUIT WHITE 150MM |
2,838 |
|
Datasheet |
Ultra-Fit 45134 | Bag | Obsolete | Socket to Socket | 2 | 1 | 0.138" (3.50mm) | - | 0.492' (150.00mm, 5.91") | Latch Lock | Black, Red, Individual | Unshielded | - | Crimp | Tin | 60.0µin (1.52µm) |
|
|
092316261826CCT PICOFLEX HARNESS 180MM |
3,508 |
|
Datasheet |
Picoflex 92316 | Bag | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.590' (180.00mm, 7.08") | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 80.0µin (2.03µm) |
|
092316101510CKT PICOFLEX 150MM LONG |
4,028 |
|
Datasheet |
Picoflex 92316 | Bag | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.492' (150.00mm, 5.91") | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 80.0µin (2.03µm) |
|
H3AAH-3006MIDC CBL - HHSC30H/AE30M/HHSC30H |
4,617 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
A22SUR22SUR32W203AJUMPER 22SUR-32S - 22SUR-32S 8" |
2,000 |
|
Datasheet |
SUR | Bulk | Active | Socket to Socket, Reversed | 22 | 1 | 0.031" (0.80mm) | - | 0.667' (203.20mm, 8.00") | - | White, Individual | - | - | IDC | Tin | - |
|
|
A22SUR22SUR32W203BJUMPER 22SUR-32S - 22SUR-32S 8" |
3,152 |
|
Datasheet |
SUR | Bulk | Active | Socket to Socket | 22 | 1 | 0.031" (0.80mm) | - | 0.667' (203.20mm, 8.00") | - | White, Individual | - | - | IDC | Tin | - |
|
|
092317124512CKT PICOFLEX 450MM LONG |
4,760 |
|
Datasheet |
Picoflex 92317 | Bulk | Active | Socket to Socket, Reversed | 12 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.48' (450.00mm) | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 80.0µin (2.03µm) |
|
2196521043MICRO-ONE ISL R-R 4CKT 300MM DIS |
1,344 |
|
Datasheet |
Micro-One 2.0 219652 | Bulk | Active | Socket to Socket | 4 | 1 | 0.079" (2.00mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
H2MXS-2406MDIP CABLE - HDM24S/AE24M/X |
3,441 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
353-28-08-GR-00012CABLE ASSY PLUG IDC 8POS 12" |
4,173 |
|
Datasheet |
- | Bulk | Obsolete | Plug to Plug | 8 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.00' (304.80mm) | - | - | - | - | IDC | Tin | - |
|
353-28-06-GR-00018CABLE ASSY PLUG IDC 6POS 18" |
1,542 |
|
Datasheet |
- | Bulk | Obsolete | Plug to Plug | 6 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | - | - | - | IDC | Tin | - |
|
|
355-28-06-GR-00012CABLE ASSY DIP IDC 6POS 12" |
2,191 |
|
Datasheet |
- | Bulk | Obsolete | Ribbon Cable, DIP Header | 6 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.00' (304.80mm) | - | - | - | - | IDC | Tin | - |
|

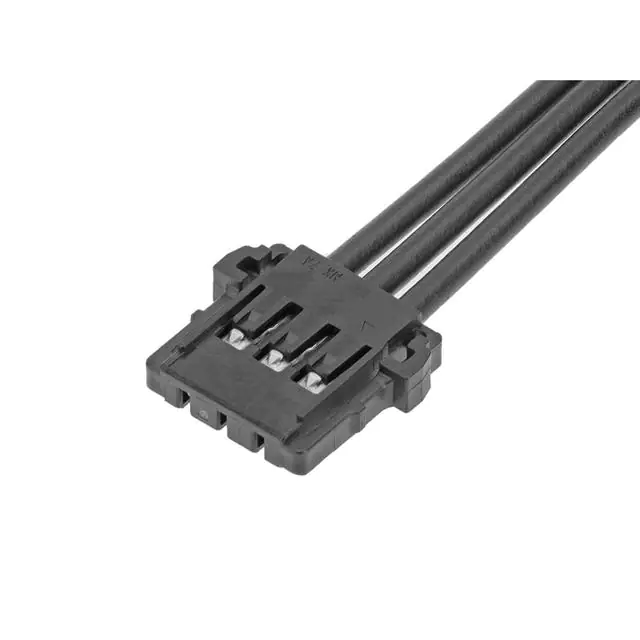

2196562033PICO-LOCK 2.0 R-R 3CKT 300MM DIS |
1,328 |
|
Datasheet |
Pico-Lock 219656 | Bulk | Active | Socket to Socket | 3 | 1 | 0.079" (2.00mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Gold | - |
|
|
A20SUR20SUR32W254AJUMPER 20SUR-32S - 20SUR-32S 10" |
3,069 |
|
Datasheet |
SUR | Bulk | Active | Socket to Socket, Reversed | 20 | 1 | 0.031" (0.80mm) | - | 0.833' (254.00mm, 10.00") | - | White, Individual | - | - | IDC | Tin | - |
