Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HLCD-20-24.00-TR-TR-1CBL ASS HDR SELF-MATE 40POS 24" |
1,359 |
|
Datasheet |
Razor Beam™ HLCD | Bulk | Active | Self Mating, Non-Gendered, Hermaphroditic to Self Mating, Non-Gendered, Hermaphroditic | 40 | 2 | 0.020" (0.50mm) | 0.010" (0.25mm) | 2.00' (609.60mm) | - | Blue, Ribbon | Shielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
HLCD-30-12.00-TR-TR-2CBL ASSM SELF-MATE 60POS 12" HDR |
3,970 |
|
Datasheet |
Razor Beam™ HLCD | Bulk | Active | Self Mating, Non-Gendered, Hermaphroditic to Self Mating, Non-Gendered, Hermaphroditic | 60 | 2 | 0.020" (0.50mm) | 0.010" (0.25mm) | 1.00' (304.80mm) | - | Blue, Ribbon | Shielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
HLCD-50-02.00-TD-TH-1CBL ASSM HDR SELF-MATE 100POS 2" |
2,775 |
|
Datasheet |
Razor Beam™ HLCD | Bulk | Active | Self Mating, Non-Gendered, Hermaphroditic to Self Mating, Non-Gendered, Hermaphroditic, Reversed | 100 | 2 | 0.020" (0.50mm) | 0.010" (0.25mm) | 0.167' (50.80mm, 2.00") | - | Blue, Ribbon | Shielded | - | IDC | Gold | 10.0µin (0.25µm) |
|

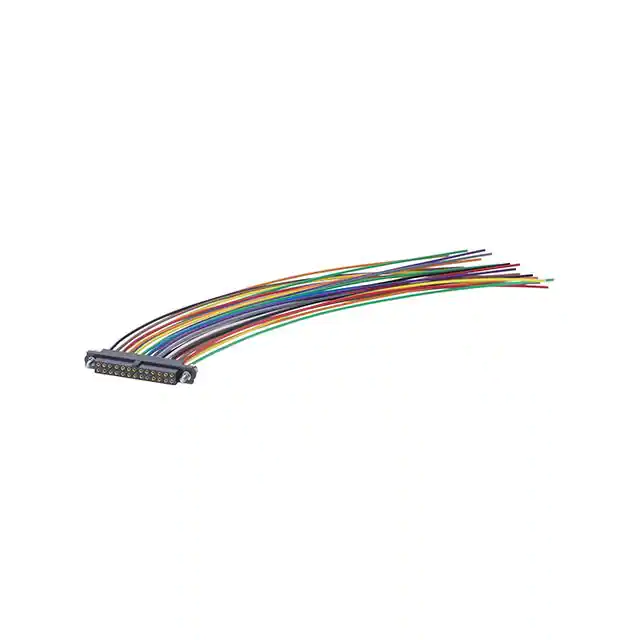

M80-FC22668F2-0150LCBL J-TEK FMALE 20POS 150MM |
1,652 |
|
Datasheet |
Datamate Coax | Bulk | Active | Socket to Individual Wire Leads | 26 | 2 | 0.079" (2.00mm) | - | 0.492' (150.00mm, 5.91") | - | Multiple, Individual | Unshielded | - | Crimp | Gold | - |
|
|
HQCD-060-02.00-TEU-SEU-1CBL ASSM HDR M-F 120POS 2" |
4,966 |
|
Datasheet |
Q Strip® HQCD | Bulk | Active | Card Edge to Card Edge | 120 | 2 | 0.020" (0.50mm) | 0.010" (0.25mm) | 0.167' (50.80mm, 2.00") | - | Blue, Ribbon | Shielded | - | IDC | Gold | - |
|
|
HLCD-30-18.00-TD-TH-1CBL ASS HDR SELF-MATE 60POS 18" |
3,504 |
|
Datasheet |
Razor Beam™ HLCD | Bulk | Active | Self Mating, Non-Gendered, Hermaphroditic to Self Mating, Non-Gendered, Hermaphroditic, Reversed | 60 | 2 | 0.020" (0.50mm) | 0.010" (0.25mm) | 1.50' (457.20mm) | - | Blue, Ribbon | Shielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
ERCD-060-06.00-TEU-TED-1-DCBL ASSEM M-M 120POS 6" HDR |
4,271 |
|
Datasheet |
Edge Rate® ERCD | Bulk | Active | Card Edge to Card Edge | 120 | 2 | 0.031" (0.80mm) | 0.016" (0.40mm) | 0.500' (152.40mm, 6.00") | - | Blue, Ribbon | Unshielded | - | IDC | Gold | 50.0µin (1.27µm) |
|

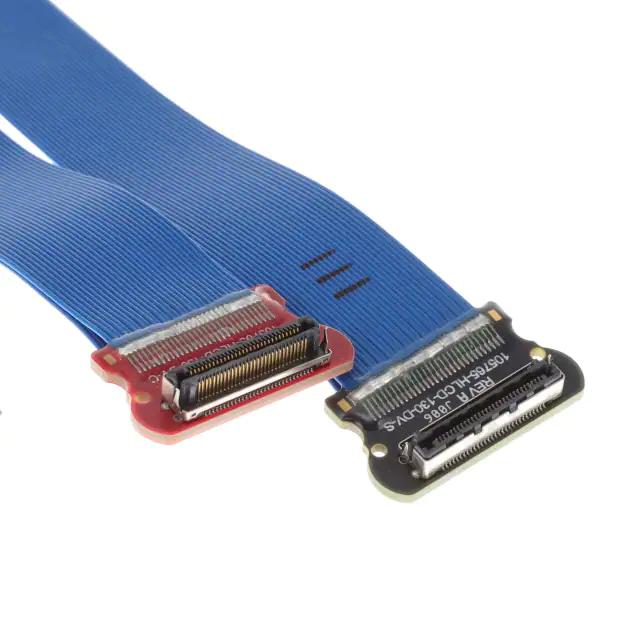

HLCD-30-18.00-TR-TR-1CBL ASS HDR SELF-MATE 60POS 18" |
3,398 |
|
Datasheet |
Razor Beam™ HLCD | Bulk | Active | Self Mating, Non-Gendered, Hermaphroditic to Self Mating, Non-Gendered, Hermaphroditic | 60 | 2 | 0.020" (0.50mm) | 0.010" (0.25mm) | 1.50' (457.20mm) | - | Blue, Ribbon | Shielded | - | IDC | Gold | 10.0µin (0.25µm) |
|

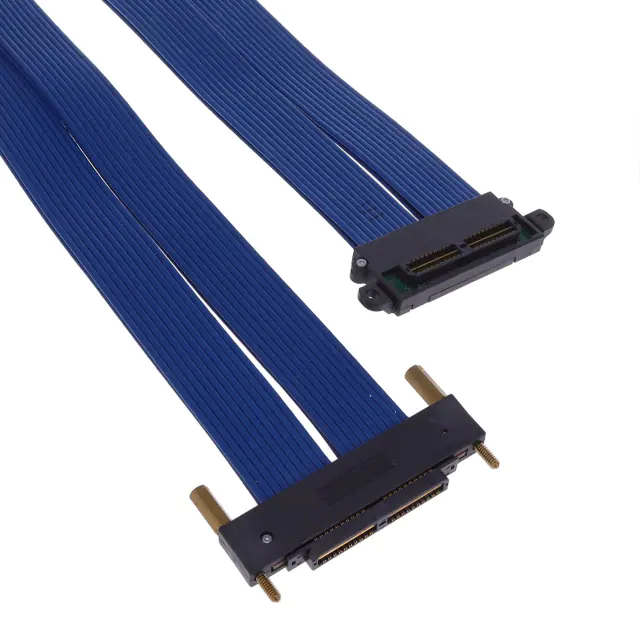

HQDP-040-12.00-TTL-TEU-5-BCBL ASSM M-M 40PAIR 12" HDR |
1,624 |
|
Datasheet |
Q PAIRS® HQDP | Bulk | Active | Plug to Card Edge | 80 | 2 | 0.020" (0.50mm) | 0.010" (0.25mm) | 1.00' (304.80mm) | - | Blue, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
ERCD-020-40.00-TEU-TED-1-DCBL ASSEM M-M 40POS 40" HDR |
3,179 |
|
Datasheet |
Edge Rate® ERCD | Bulk | Active | Card Edge to Card Edge | 40 | 2 | 0.031" (0.80mm) | 0.016" (0.40mm) | 3.33' (1.02m) | - | Blue, Ribbon | Unshielded | - | IDC | Gold | 50.0µin (1.27µm) |
|
|
HQCD-030-24.00-TEU-SEU-1CBL ASSM HDR M-F 60POS 24" |
4,609 |
|
Datasheet |
Q Strip® HQCD | Bulk | Active | Card Edge to Card Edge | 60 | 2 | 0.020" (0.50mm) | 0.010" (0.25mm) | 2.00' (609.60mm) | - | Blue, Ribbon | Shielded | - | IDC | Gold | - |
|
|
HLCD-30-24.00-TR-TR-1CBL ASS HDR SELF-MATE 60POS 24" |
1,174 |
|
Datasheet |
Razor Beam™ HLCD | Bulk | Active | Self Mating, Non-Gendered, Hermaphroditic to Self Mating, Non-Gendered, Hermaphroditic | 60 | 2 | 0.020" (0.50mm) | 0.010" (0.25mm) | 2.00' (609.60mm) | - | Blue, Ribbon | Shielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
BF4MC-6GTXRX-B1-5MHGH SPD OPTCL TRANS CBL 5M |
3,043 |
|
Datasheet |
BF4M | Bulk | Active | Plug to Plug | 14 | 2 | 0.020" (0.50mm) | - | 16.4' (5.00m) | - | Red, Individual (Round) | Unshielded | - | Solder | Gold | - |
|

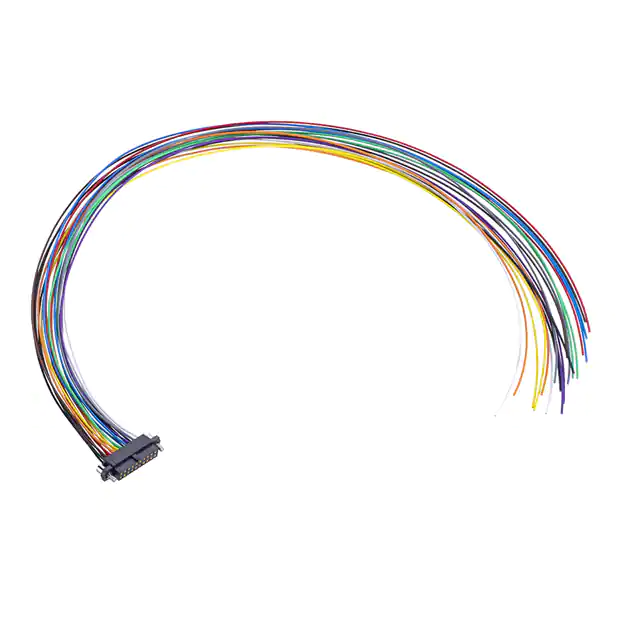

M80-FF22068F2-0450LCBL ASSY 2MM 20POS FMALE TO WIRE |
2,692 |
|
Datasheet |
- | Bag | Active | Socket to Individual Wire Leads | 20 | 2 | 0.079" (2.00mm) | - | 1.48' (450.00mm) | Screw Lock | Multiple, Individual | Unshielded | - | Crimp | Gold | - |
|

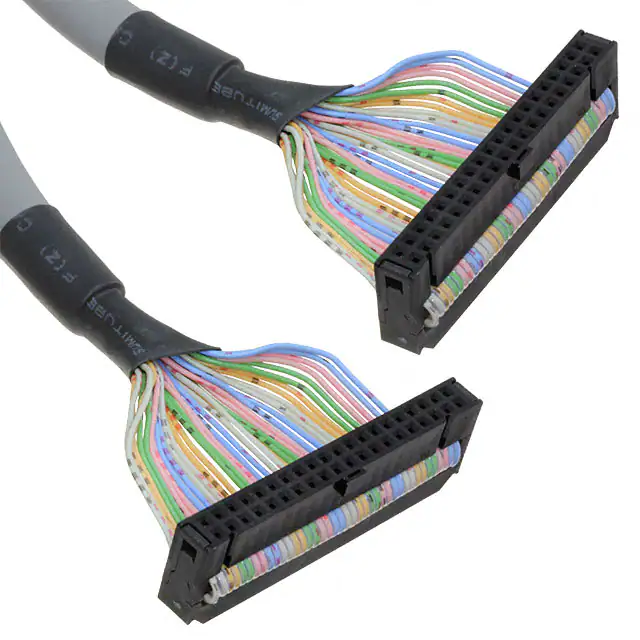

XW2Z-C50KXW2 I/O UNIT CABLE 0.5M |
3,332 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 40 | 2 | - | - | 1.64' (500.00mm) | - | - | - | - | Crimp | Gold | 6.00µin (0.152µm) |
|
|
ERCD-040-12.00-TEU-TED-1-BCBL ASSEM M-M 80POS 12" HDR |
3,586 |
|
Datasheet |
Edge Rate® ERCD | Bulk | Active | Card Edge to Card Edge | 80 | 2 | 0.031" (0.80mm) | 0.016" (0.40mm) | 1.00' (304.80mm) | - | Blue, Ribbon | Unshielded | - | IDC | Gold | 50.0µin (1.27µm) |
|
HQCD-090-12.00-TEU-SEU-1CBL ASSM M-F 180POS 12" HDR |
2,934 |
|
Datasheet |
Q Strip® HQCD | Bulk | Active | Card Edge to Card Edge | 180 | 2 | 0.020" (0.50mm) | 0.010" (0.25mm) | 1.00' (304.80mm) | - | Blue, Ribbon | Shielded | - | IDC | Gold | - |
|

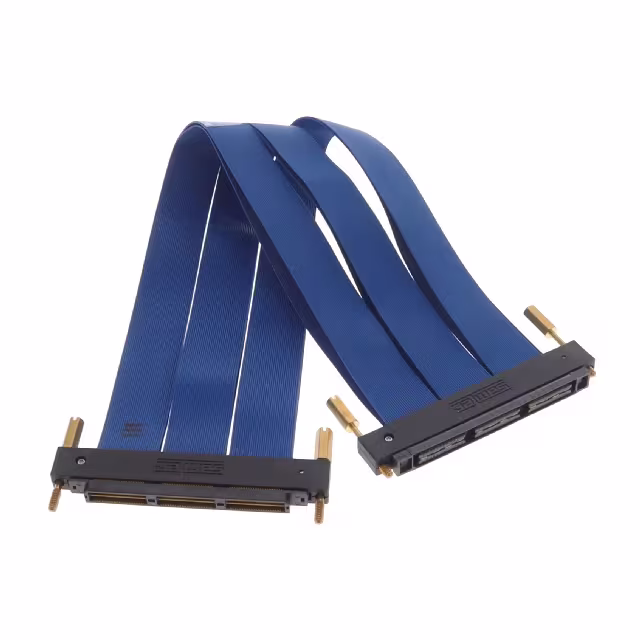

HQCD-090-12.00-TEU-SEU-1-BCBL ASSM M-F 180POS 12" HDR |
4,701 |
|
Datasheet |
Q Strip® HQCD | Bulk | Active | Card Edge to Card Edge | 180 | 2 | 0.020" (0.50mm) | 0.010" (0.25mm) | 1.00' (304.80mm) | - | Blue, Ribbon | Shielded | - | IDC | Gold | - |
|
SEAC-020-06-12.0-TU-TUCBL ASSM M-M 120POS 12" HDR |
2,912 |
|
Datasheet |
SEARAY™ SEAC | Bulk | Active | Plug to Plug | 120 | 6 | 0.050" (1.27mm) | 0.025" (0.64mm) | 1.00' (304.80mm) | - | Blue, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
ERCD-060-06.00-TEU-TED-1-BCBL ASSEM M-M 120POS 6" HDR |
4,968 |
|
Datasheet |
Edge Rate® ERCD | Bulk | Active | Card Edge to Card Edge | 120 | 2 | 0.031" (0.80mm) | 0.016" (0.40mm) | 0.500' (152.40mm, 6.00") | - | Blue, Ribbon | Unshielded | - | IDC | Gold | 50.0µin (1.27µm) |
