Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-10-D-06.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,584 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-06-D-12.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,633 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
TCMD-05-T-12.00-01-NCABLE ASSEM 2MM 10POS M-F 12" |
2,260 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|

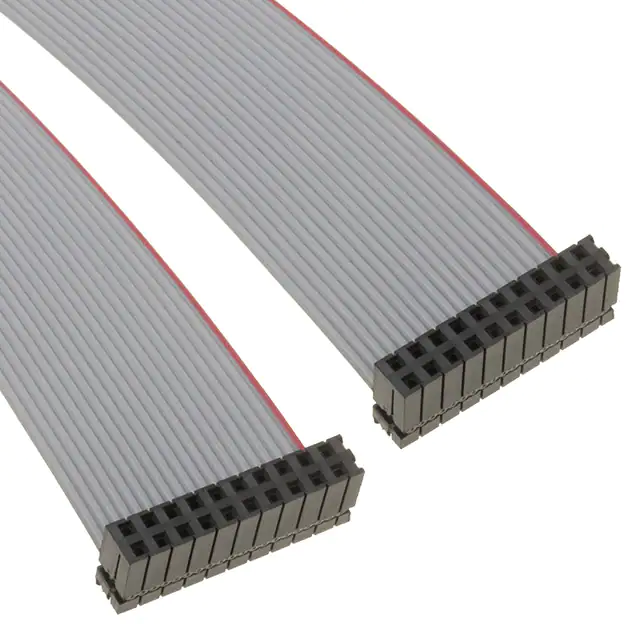

IDSD-10-D-08.50-GINSULATION DISPLACEMENT TERMINAL |
4,278 |
|
Datasheet |
IDSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.708' (215.90mm, 8.50") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
UMPC-03-L-18-P-12.0CBL ASSEM MPOWER 3POS 18AWG 12" |
2,688 |
|
Datasheet |
mPOWER® UMPC | Bag | Active | Socket to Cable | 3 | 1 | - | - | 1.00' (304.80mm) | - | Black, Individual | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
TCSD-05-D-02.00-01-NCABLE ASSEM 2MM 10POS F-F 2" |
4,211 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
2147552083MICRO-FIT3.0 R-R 8 CIRCUIT 600MM |
2,225 |
|
Datasheet |
Micro-Fit 3.0 214755 | Bag | Active | Socket to Socket | 8 | 2 | 0.118" (3.00mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
21477003303CKT OVERMOLDED MICROFIT 3M |
4,948 |
|
Datasheet |
Micro-Fit 3.0 214770 | Bag | Active | Socket to Socket | 3 | 1 | 0.118" (3.00mm) | - | 9.83' (3.00m) | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
T1PDT-10-28-GF-02.0-A-T3CBL 1MM 20POS PNL MNT M TO F |
1,913 |
|
Datasheet |
Micro Mate™ T1PDT | Bulk | Active | Socket to Plug, Reversed | 20 | 2 | 0.039" (1.00mm) | - | 0.167' (50.80mm, 2.00") | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TCMD-10-T-08.00-01-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,429 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCSD-10-D-10.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,286 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
ASR00009-1WIRELING 5-PIN CABLE VARIETY (12 |
2,967 |
|
Datasheet |
- | Bulk | Active | Plug to Individual Wire Leads | 5 | 1 | - | - | Various | 12 pcs Pack | - | - | Platform Cable Kit | - | - | - |
|
TCSD-05-D-04.00-01-N2MM DOUBLE ROW FEMALE IDC ASSY |
3,854 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

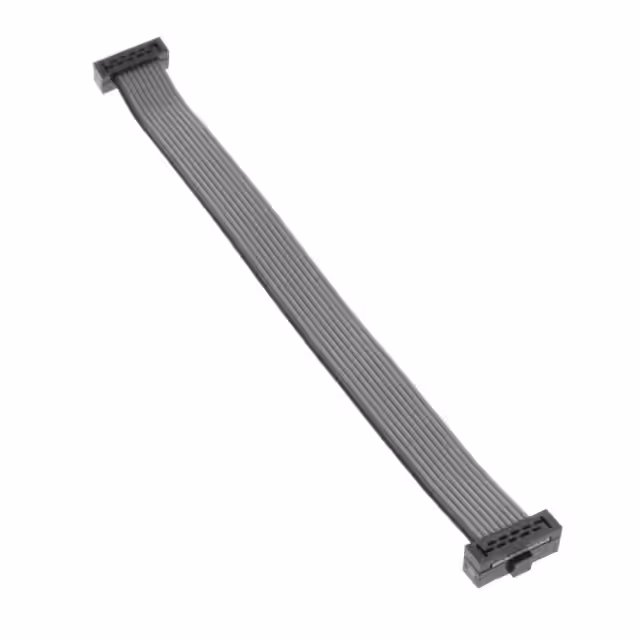

TCSD-05-D-05.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,594 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
TCSD-04-D-10.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
1,003 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

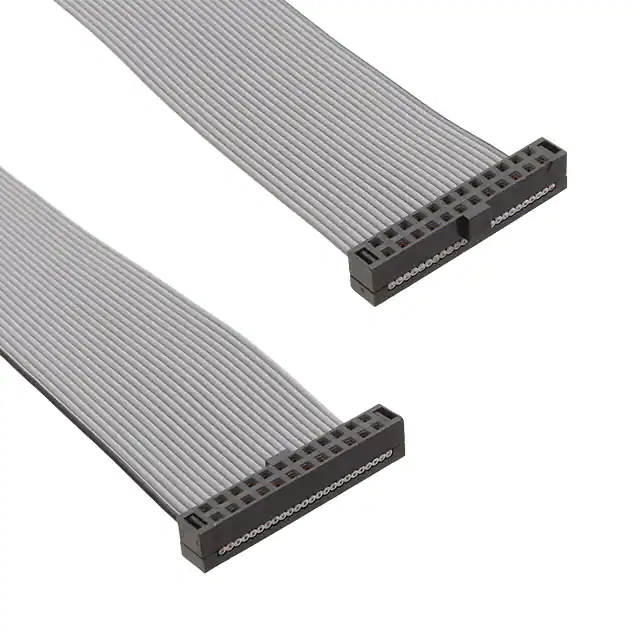

TCSD-12-D-07.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,407 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.583' (177.80mm, 7.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|

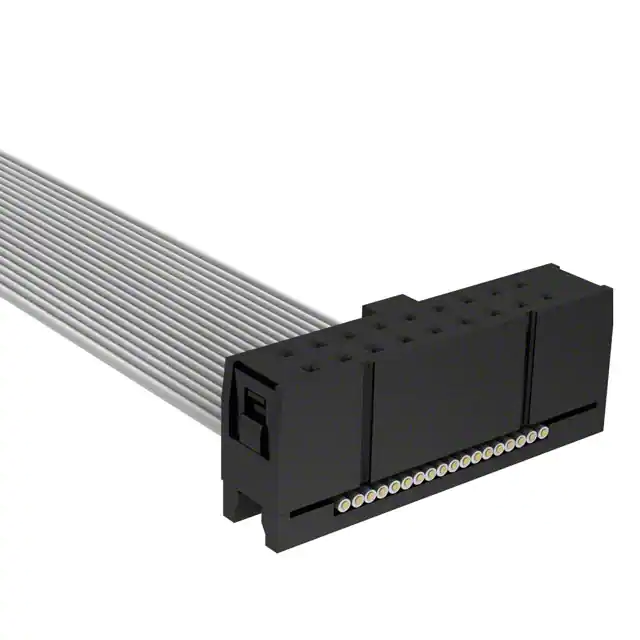

TCSD-08-D-02.00-01-N-RCABLE ASSEM 2MM 16POS DBL END 2" |
3,798 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

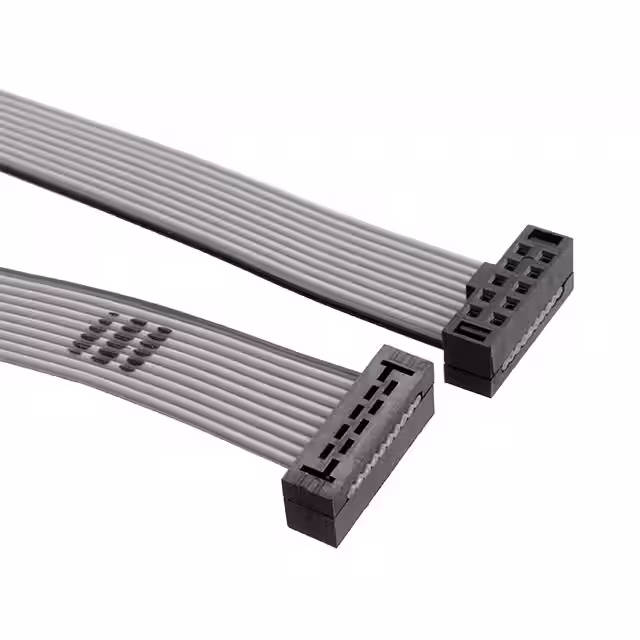

TCSD-05-D-10.50-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,941 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.875' (266.70mm, 10.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

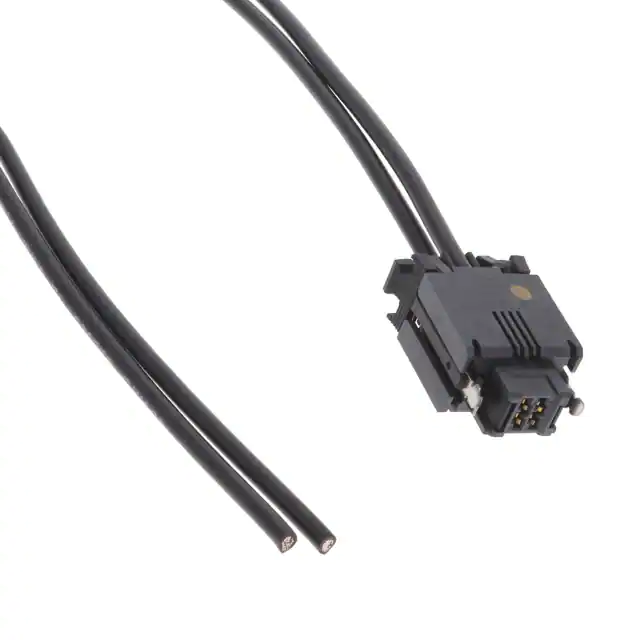

UMPC-02-L-16-M-12.0CBL ASSEM MPOWER 2POS 16AWG 12" |
3,115 |
|
Datasheet |
mPOWER® UMPC | Bag | Active | Socket to Cable | 2 | 1 | - | - | 1.00' (304.80mm) | - | Black, Individual | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|

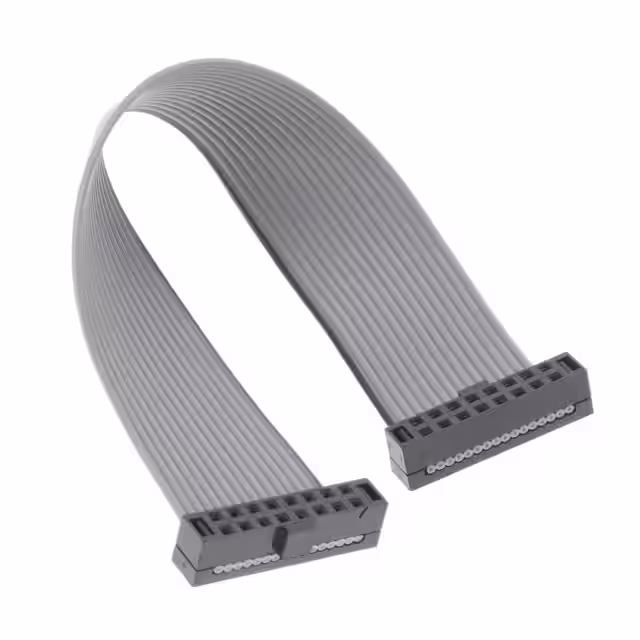

TCSD-08-D-05.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,255 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
