Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AV1911P112R04SWITCH PUSHBUTTON SPDT 0.4VA 20V |
4,363 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button, Flush | Power Symbol | Silver | LED, White | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1920P312R04SWITCH PUSHBUTTON DPDT 0.4VA 20V |
3,517 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button, Flush | Power Symbol | Silver | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
UB226SKG03NSWITCH PUSHBUTTON DPDT 0.4VA 28V |
3,498 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
|
AV1921P612R04SWITCH PUSHBUTTON DPDT 0.4VA 20V |
1,939 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button, Flush | Power Symbol | Silver | LED, Green | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
UB16KKW015D-ABSWITCH PUSHBUTTON SPDT 5A 125V |
2,202 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black (White Window) | LED, Amber | 2 VDC | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
UB26SKG035DSWITCH PUSHBUTTON DPDT 0.4VA 28V |
4,193 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
|
35-482SWITCH PUSH BUTTON ON OFF SPST S |
4,679 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AP4D206SZBESWITCH PUSH SPST-NO 0.125A 125V |
1,253 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Black | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|
|
EB2011-A-J23ACFLIGHT TOUCH MINIATURE PUSHBUTTON |
1,361 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | - | Black | LED, Green/Red | 2.0, 2.25 VDC | Solder Lug | - | - | Rectangular - 18.40mm x 15.00mm | -10°C ~ 70°C |
|
|
HB16SKW01-5D-ABSWITCH PUSH SPDT 0.1A 30V |
1,224 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Black | LED, Amber | 2.05 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
|
HB15SKW01-5D-ABSWITCH PUSH SPDT 0.1A 30V |
1,037 |
|
Datasheet |
HB | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Black | LED, Amber | 2.05 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
|
HB16SKW01-5F-ABSWITCH PUSH SPDT 0.1A 30V |
4,515 |
|
Datasheet |
HB | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Black | LED, Green | 2.1 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|

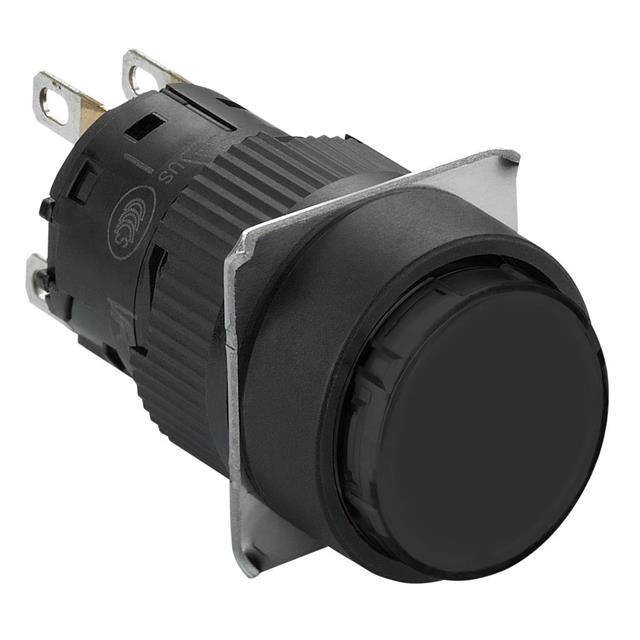

XB6EAA21PMONOLITHIC PUSH BUTTON, HARMONY |
3,831 |
|
Datasheet |
Harmony XB6E | Box | Active | Panel Mount, Front | Standard | SPDT | On-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Black | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
LB15RGW01-JBSWITCH PUSHBUTTON SPDT 3A 125V |
2,463 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|
|
UB25KKG015FSWITCH PUSHBUTTON DPDT 0.4VA 28V |
1,772 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | Sealed - Fully, Stackable | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
MB2011SS2G30-BCSWITCH PUSH SPDT 0.4VA 28V |
4,470 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
MB2011SS2G30-BASWITCH PUSHBUTTON SPDT 0.4VA 28V |
4,037 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
UB25KKG015DSWITCH PUSHBUTTON DPDT 0.4VA 28V |
1,773 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | Solder Lug | - | Sealed - Fully, Stackable | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
MB2061LD3W01-BABUSHING MOUNT MINIATURE PUSHBUTT |
2,823 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | - | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
UB25NKW015FSWITCH PUSHBUTTON DPDT 5A 125V |
3,753 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | Spot LED | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
