Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

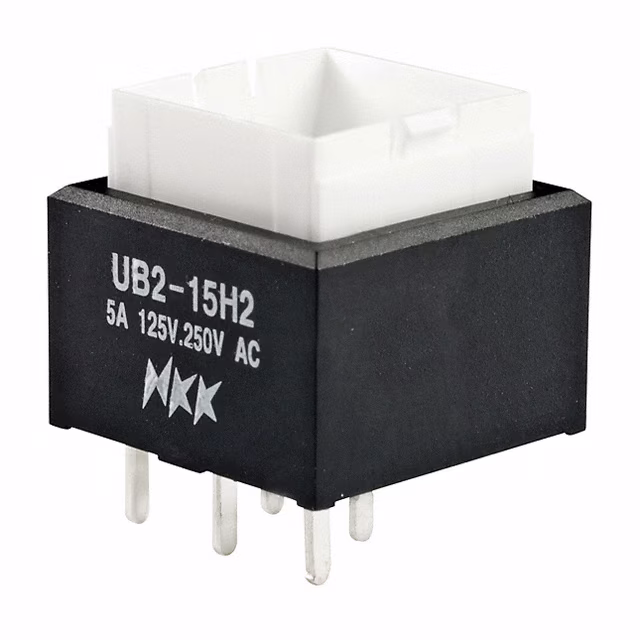

UB215SKW036FSWITCH PUSHBUTTON SPDT 5A 125V |
4,882 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|

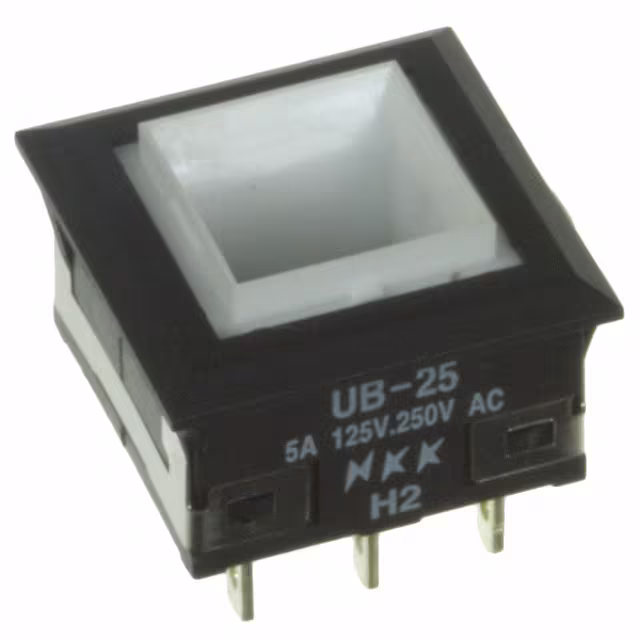

UB25KKW016FSWITCH PUSHBUTTON DPDT 5A 125V |
3,958 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 3.2 VDC | Solder Lug | - | Spot LED | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
82-5151.2113.B002SWITCH PB SPDT 5A 120V |
4,196 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Silver | LED, Red | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
82-5151.2124.B002SWITCH PB SPDT 3A 240V |
1,694 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
|
YB16SKG01-6F-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
2,570 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
UB25SKG036BSWITCH PUSH DPDT 0.4VA 28V |
3,695 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, White | 2.9 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|
|
DH301LBSRG24SWITCH PB DPST-NO/NC 2A 125V |
4,550 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
DH301LBSRG12SWITCH PB DPST-NO/NC 2A 125V |
2,972 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Green/Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 30.00mm Dia | -25°C ~ 70°C |
|

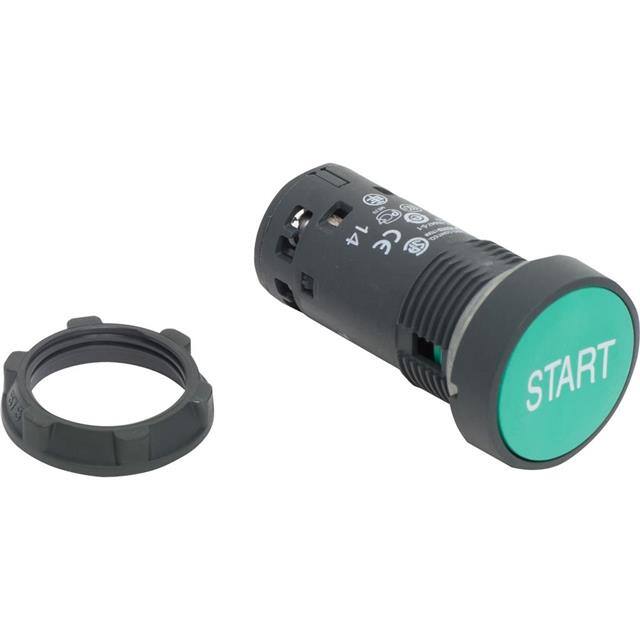

XB7NA3133HARMONY XB7, MONOLITHIC PUSH BUT |
1,324 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
XB7NA4234HARMONY XB7, MONOLITHIC PUSH BUT |
1,567 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard | SPST-NC | Off-On | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
UB216KKW016CF-4JCF11SWITCH PUSHBUTTON SPDT 5A 125V |
1,827 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | ON/OFF | Clear | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
3-145-657SWITCH PUSHBUTTON SPDT 5A 125V |
4,440 |
|
Datasheet |
MSM II | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 30.10mm Dia | -30°C ~ 85°C |
|
|
YB16MKG01-6G-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
1,190 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

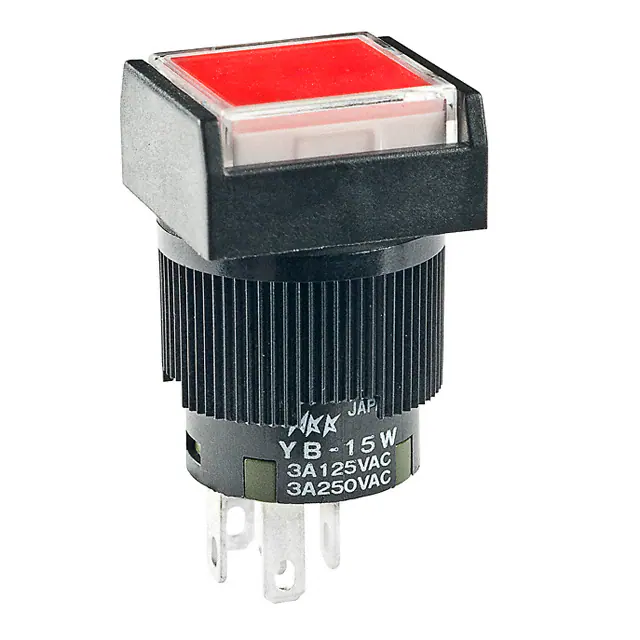

YB15WSKW01-5C12-JCSWITCH PUSHBUTTON SPDT 3A 125V |
1,836 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
MP0045/1E0NN000SSWITCH PB DPST ON-OFF |
3,901 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
|
51-431.036SWITCH PB DPST-NO 0.1A 42V |
1,242 |
|
Datasheet |
51 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 42 V | Round, Button (Not Included) | No Marking | - | - | - | PC Pin, Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
51-452.036SWITCH PB DPST-NC 0.1A 42V |
1,638 |
|
Datasheet |
51 | Bulk | Active | Panel Mount, Front | Standard | DPST-NC | On-Mom | 100mA (AC/DC) | 42 V | 42 V | Square, Button (Not Included) | No Marking | - | - | - | PC Pin, Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
YB16WCKW01-5C12-JCSWITCH PUSHBUTTON SPDT 3A 125V |
4,704 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

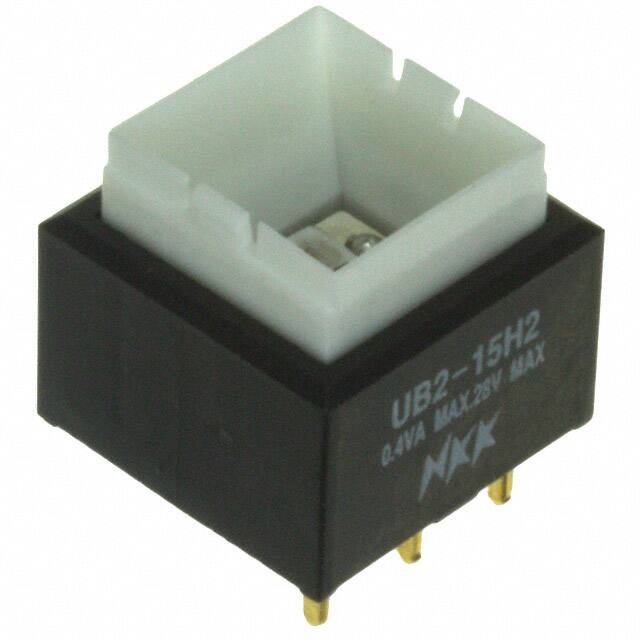

UB215SKG036FSWITCH PUSH SPDT 0.4VA 28V |
2,116 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 3.5 VDC | PC Pin | - | Sealed - Flux Protection | - | -25°C ~ 50°C |
|
UB215SKG036BSWITCH PUSH SPDT 0.4VA 28V |
4,756 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, White | 3.3 VDC | PC Pin | - | Sealed | - | -25°C ~ 50°C |
