Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

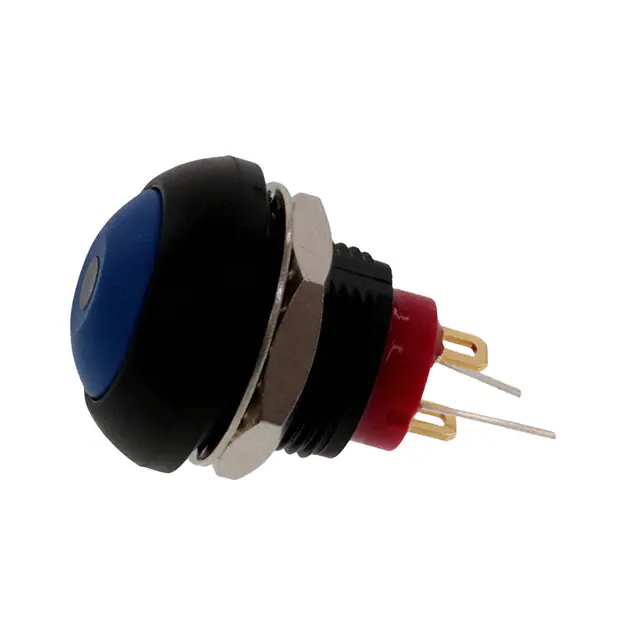

MMP0120/ABLSSWITCH PUSHBUTTON SPST-NO 2A 36V |
4,117 |
|
Datasheet |
MMP0120 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
MMP0120/AGNPSWITCH PUSHBUTTON SPST-NO 2A 36V |
2,011 |
|
Datasheet |
MMP0120 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Green | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
8121MD9AGESWITCH PUSHBUTTON SPDT 1A 120V |
1,111 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
UB15RKG035CSWITCH PUSH SPDT 0.4VA 28V |
3,119 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
PV3H2B0SSSWITCH PUSHBUTTON SPDT 2A 48V |
2,163 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
AHU1NBSG12SWITCH PB SPDT 3A 125V |
2,585 |
|
Datasheet |
AHU | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -20°C ~ 65°C |
|
8121MD9AV2GESWITCH PUSHBUTTON SPDT 1A 120V |
2,536 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
|
ULV7FWG11341SWITCH PB DPDT 3A 250V |
4,198 |
|
Datasheet |
ULV7 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Black | LED, Blue | 3 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
PV3F2H0SS-311SWITCH PUSHBUTTON DPDT 2A 48V |
2,044 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.8 VDC | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PV0H24011-341-CRSSWITCH PB SPST-NO 2A 36V |
1,607 |
|
Datasheet |
PV0, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | - | Black | LED, Blue | 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 55°C |
|
UB25NKG01NSWITCH PUSH DPDT 0.4VA 28V |
2,739 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Spot LED | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|
UB25KKG01NSWITCH PUSH DPDT 0.4VA 28V |
2,565 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Sealed - Fully, Stackable | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
DHU251NAUXZBSWITCH PB SPDT 16A 125V |
3,962 |
|
Datasheet |
DHU | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Blue | - | - | Quick Connect - 0.110"/0.250" | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -40°C ~ 85°C |
|
PV3H2H0NN-331SWITCH PUSHBUTTON DPDT 2A 48V |
3,993 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | LED, Green | 2.8 VDC | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
LASOAU11SWITCH PB SPDT 8A 125V |
100 |
|
Datasheet |
LA | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button (Not Included) | - | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
U811SYZGESWITCH PUSHBUTTON SPDT 1A 120V |
4,511 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
UB15RKW035D-JBSWITCH PUSHBUTTON SPDT 5A 125V |
3,432 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
30-203SWITCH PUSH SPST-NO 0.15A 24V |
1,638 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 24 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | - | Aluminum Housing | Circular - 13.46mm Dia | -40°C ~ 80°C |
|
DH22U1NBSR12SWITCH PB SPDT 3A 125V |
1,043 |
|
Datasheet |
DH22U | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
CH1NBUB12SSWITCH PB SPDT 1A 125V |
4,895 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Blue | LED, Blue | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
