Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP1S-16S-509-ZSWITCH PUSHBUTTON SPDT 3A 125V |
3,418 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear | LED, Green | 2.1 VDC | PC Pin | - | - | - | -15°C ~ 60°C |
|
LP1S-16S-559-ZSWITCH PUSHBUTTON SPDT 3A 125V |
3,886 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | - | - | -15°C ~ 60°C |
|
LP1S-16S-889-ZSWITCH PUSHBUTTON SPDT 3A 125V |
4,176 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Yellow | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -15°C ~ 60°C |
|

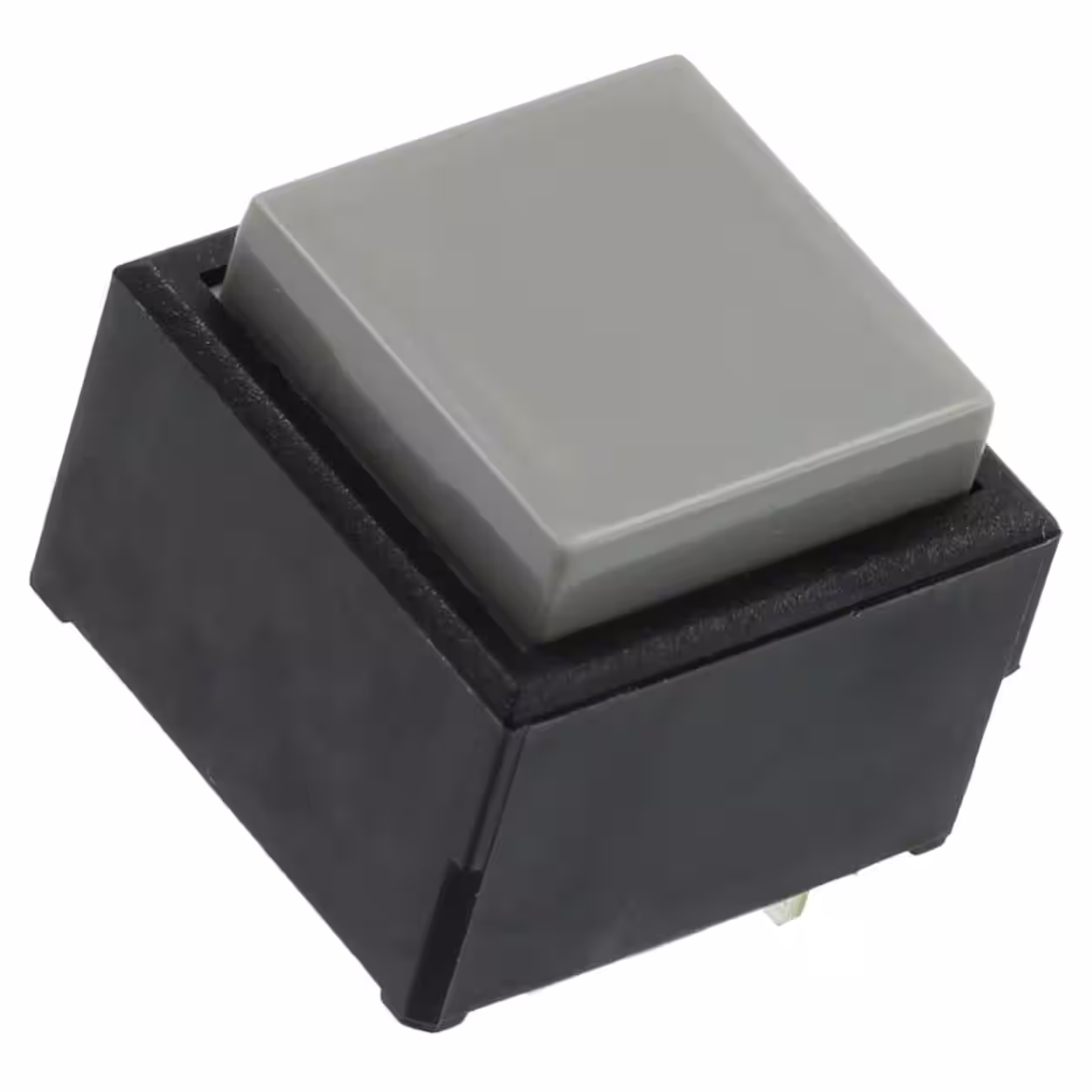

LP1S-16S-G-ZSWITCH PUSHBUTTON SPDT 3A 125V |
4,224 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Gray | - | - | PC Pin | - | - | - | -15°C ~ 60°C |
|
LP1S-16S-K-ZSWITCH PUSHBUTTON SPDT 3A 125V |
3,593 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -15°C ~ 60°C |
|
LP1S-16S-R-ZSWITCH PUSHBUTTON SPDT 3A 125V |
4,291 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | - | - | PC Pin | - | - | - | -15°C ~ 60°C |
|

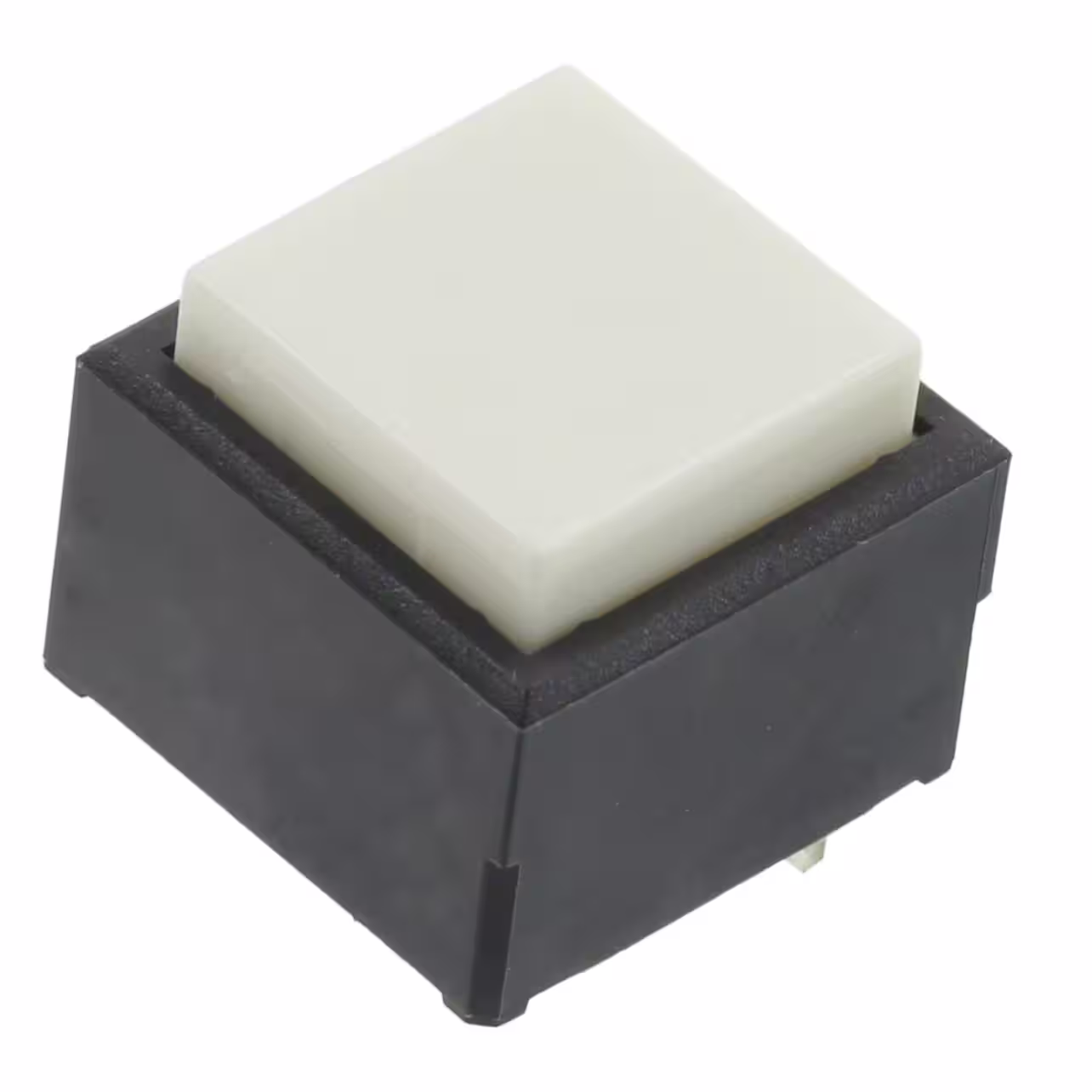

LP1S-16S-W-ZSWITCH PUSHBUTTON SPDT 3A 125V |
1,679 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | PC Pin | - | - | - | -15°C ~ 60°C |
|

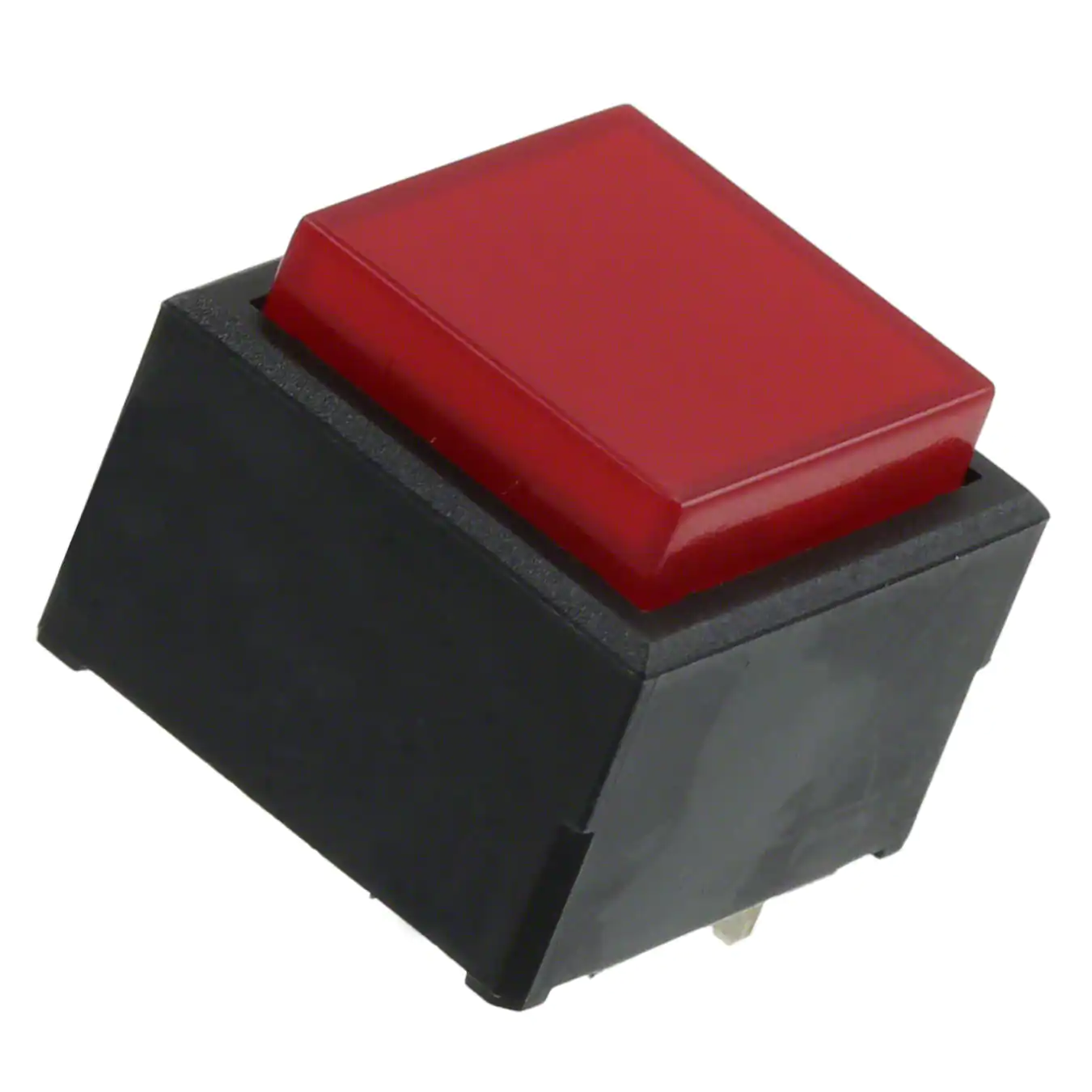

LP1S-17S-229-ZSWITCH PUSHBUTTON SPDT 3A 125V |
2,522 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 2 VDC | PC Pin | - | - | - | -15°C ~ 60°C |
|
|
LP1S-17S-559-ZSWITCH PUSHBUTTON SPDT 3A 125V |
2,575 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | - | - | -15°C ~ 60°C |
|
|
LP1S-17S-889-ZSWITCH PUSHBUTTON SPDT 3A 125V |
4,307 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Yellow | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -15°C ~ 60°C |
|
|
LP1S-17S-K-ZSWITCH PUSHBUTTON SPDT 3A 125V |
4,812 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -15°C ~ 60°C |
|
|
LP1S-17S-W-ZSWITCH PUSHBUTTON SPDT 3A 125V |
2,139 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | PC Pin | - | - | - | -15°C ~ 60°C |
|
|
LP1S-26S-229-ZSWITCH PUSHBUTTON DPDT 3A 125V |
3,257 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 2 VDC | PC Pin | - | - | - | -15°C ~ 60°C |
|
|
LP1S-26S-509-ZSWITCH PUSHBUTTON DPDT 3A 125V |
4,872 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear | LED, Green | 2.1 VDC | PC Pin | - | - | - | -15°C ~ 60°C |
|
|
LP1S-26S-559-ZSWITCH PUSHBUTTON DPDT 3A 125V |
1,590 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | - | - | -15°C ~ 60°C |
|
|
LP1S-26S-889-ZSWITCH PUSHBUTTON DPDT 3A 125V |
4,333 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Yellow | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -15°C ~ 60°C |
|
|
LP1S-26S-K-ZSWITCH PUSHBUTTON DPDT 3A 125V |
3,895 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -15°C ~ 60°C |
|
|
LP1S-26S-R-ZSWITCH PUSHBUTTON DPDT 3A 125V |
1,479 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | - | - | PC Pin | - | - | - | -15°C ~ 60°C |
|
|
LP1S-26S-W-ZSWITCH PUSHBUTTON DPDT 3A 125V |
2,708 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | PC Pin | - | - | - | -15°C ~ 60°C |
|
|
LP1S-27S-229-ZSWITCH PUSHBUTTON DPDT 3A 125V |
4,103 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 2 VDC | PC Pin | - | - | - | -15°C ~ 60°C |
