Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

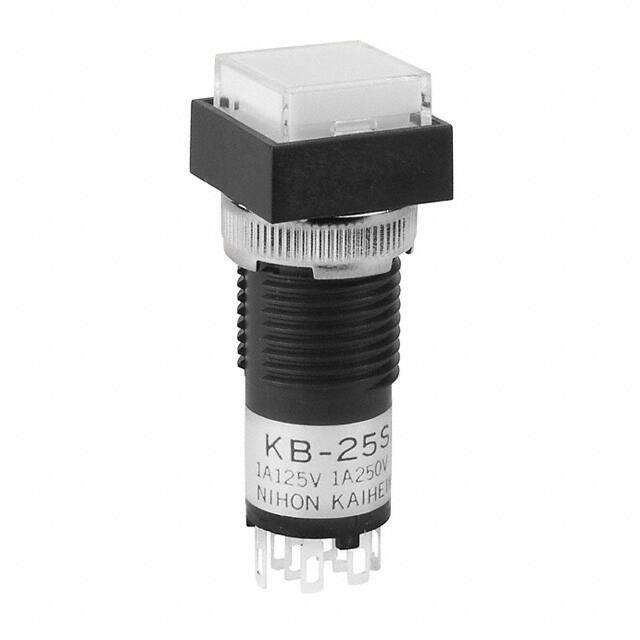

KB25SKW01-6B-JBSWITCH PUSHBUTTON DPDT 1A 125V |
4,050 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
KB25SKW01B-ASWITCH PUSHBUTTON DPDT 1A 125V |
3,202 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | With Barrier | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
KB25SKW01-BBSWITCH PUSHBUTTON DPDT 1A 125V |
2,861 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
KB25SKW01-JFSWITCH PUSHBUTTON DPDT 1A 125V |
3,701 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB26CKG01-6B-JBSWITCH PUSH DPDT 0.4VA 28V |
4,921 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB26CKG01-6F-JBSWITCH PUSH DPDT 0.4VA 28V |
4,503 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB26CKG01-6G-JBSWITCH PUSH DPDT 0.4VA 28V |
2,752 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
KB26CKW01/USWITCH PUSHBUTTON DPDT 1A 125V |
3,250 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB26CKW01-12-BBSWITCH PUSHBUTTON DPDT 1A 125V |
2,996 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | Incandescent, White | 12 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB26CKW01-12-EBSWITCH PUSHBUTTON DPDT 1A 125V |
4,232 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Yellow (White Filter/Diffuser) | Incandescent, Yellow | 12 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB26CKW01-12-FBSWITCH PUSHBUTTON DPDT 1A 125V |
3,170 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green (White Filter/Diffuser) | Incandescent, Green | 12 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB26CKW01-5F12-JBSWITCH PUSHBUTTON DPDT 1A 125V |
2,154 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 12 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB26CKW01-6B-JBSWITCH PUSHBUTTON DPDT 1A 125V |
4,262 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB26CKW01-6G-JBSWITCH PUSHBUTTON DPDT 1A 125V |
1,847 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB26CKW01-ASWITCH PUSHBUTTON DPDT 1A 125V |
3,451 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB26CKW01-BBSWITCH PUSHBUTTON DPDT 1A 125V |
2,716 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|

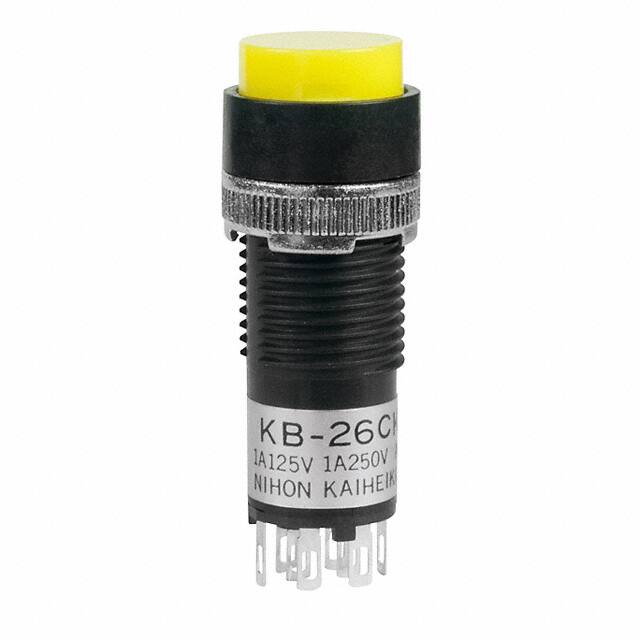

KB26CKW01-EBSWITCH PUSHBUTTON DPDT 1A 125V |
2,226 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Yellow (White Filter/Diffuser) | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|

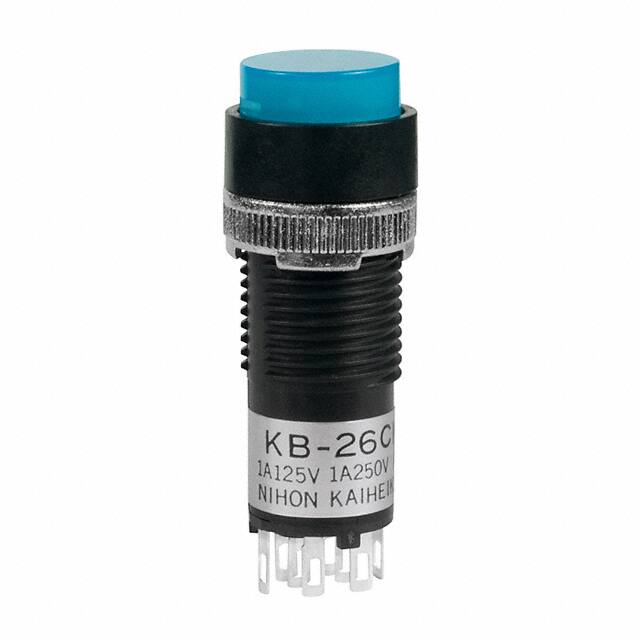

KB26CKW01-GGSWITCH PUSHBUTTON DPDT 1A 125V |
1,983 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Blue | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
KB26KKG01-5C05-JCSWITCH PUSH DPDT 0.4VA 28V |
2,239 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 5 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB26KKW01-5F12-JFSWITCH PUSHBUTTON DPDT 1A 125V |
4,245 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 12 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
