Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXR021SWITCH PUSH SPST-NO 0.25A 115V |
1,980 |
|
Datasheet |
BXR | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 250mA (AC) | 115 V | - | Square, Button | No Marking | Black | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Square - 15.75mm x 15.75mm | - |
|
|
BXR026SWITCH PUSH DPDT 0.25A 115V |
4,398 |
|
Datasheet |
BXR | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 250mA (AC) | 115 V | - | Square, Button | No Marking | Black | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Square - 15.75mm x 15.75mm | - |
|
|
65021K206XSWITCH PUSHBUTTON DPDT 3A 125V |
3,051 |
|
Datasheet |
65000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | - | 3A (AC) | 125 V | - | Rectangular, Button | No Marking | Black | - | - | Solder Lug | - | - | - | - |
|
65041K206XSWITCH PUSHBUTTON DPDT 3A 125V |
1,061 |
|
Datasheet |
65000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | - | 3A (AC) | 125 V | - | Rectangular, Button | No Marking | Black | - | - | Solder Lug | - | - | - | - |
|
|
PL112705XSWITCH PUSHBUTTON 4PDT 2A 125V |
3,150 |
|
- |
PL | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | 4PDT | On-On | 2A (AC) | 125 V | - | Square, Button | No Marking | White | - | - | Solder Lug | - | - | Rectangular - 25.40mm x 22.23mm | - |
|
|
65121K206XSWITCH PUSHBUTTON DPDT 3A 125V |
3,571 |
|
Datasheet |
65000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | - | 3A (AC) | 125 V | - | Rectangular, Button | No Marking | Black | - | - | Solder Lug | - | - | - | - |
|
|
67121K506XSWITCH PUSHBUTTON DPDT 3A 125V |
3,404 |
|
Datasheet |
67000 | Bulk | Active | Panel Mount, Rear | Standard, Illuminated | DPDT | - | 3A (AC) | 125 V | - | Square, Button | No Marking | White | - | - | Solder Lug | - | - | Rectangular - 190.56mm x 15.88mm | - |
|
MP0025SWITCH PUSHBUTTON DPST 5A 250V |
1,309 |
|
Datasheet |
- | Tray | Obsolete | Panel Mount, Rear | Anti-Vandal | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC), 2A (DC) | 250 V | 28 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 22.60mm Dia | -20°C ~ 70°C |
|
MP0025/3SWITCH PUSHBUTTON DPST 5A 250V |
3,334 |
|
Datasheet |
- | Tray | Obsolete | Panel Mount, Rear | Anti-Vandal | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC), 2A (DC) | 250 V | 28 V | Round, Button, Domed | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 22.60mm Dia | -20°C ~ 70°C |
|

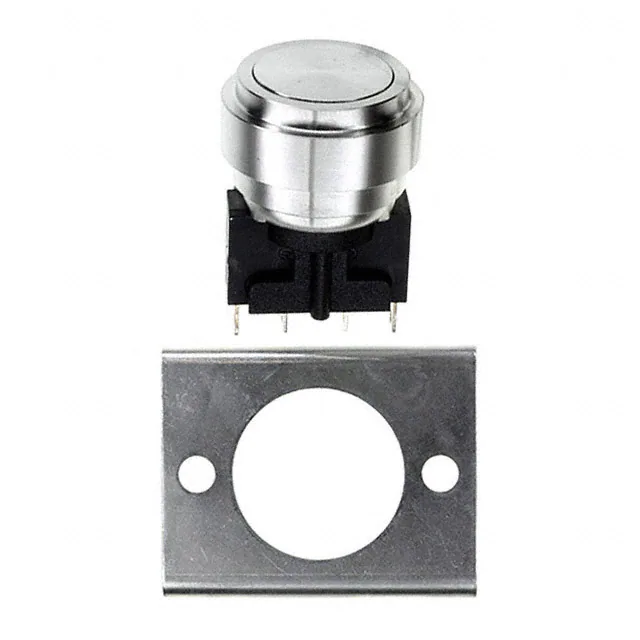

MP0034SWITCH PUSHBUTTON DPST 5A 250V |
3,741 |
|
Datasheet |
- | Tray | Obsolete | Panel Mount, Rear | Anti-Vandal | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC), 2A (DC) | 250 V | 28 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 18.90mm Dia | -20°C ~ 70°C |
|

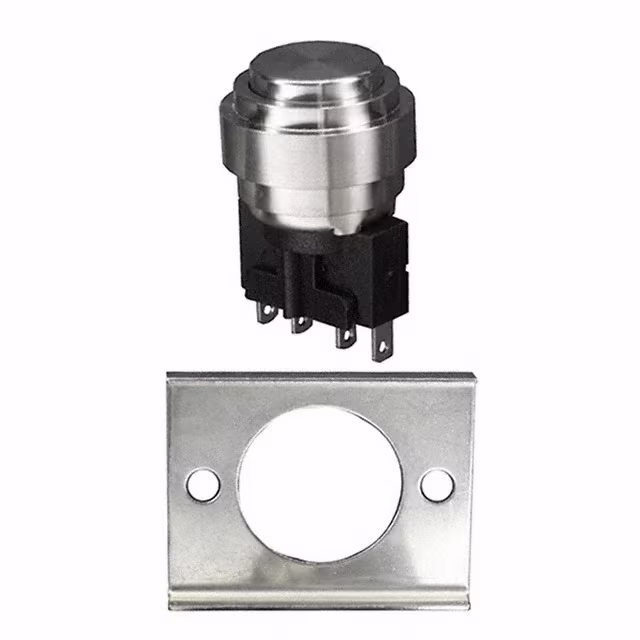

MP0034/2SWITCH PUSHBUTTON DPST 5A 250V |
3,706 |
|
Datasheet |
- | Tray | Obsolete | Panel Mount, Rear | Anti-Vandal | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC), 2A (DC) | 250 V | 28 V | Round, Button | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 18.90mm Dia | -20°C ~ 70°C |
|

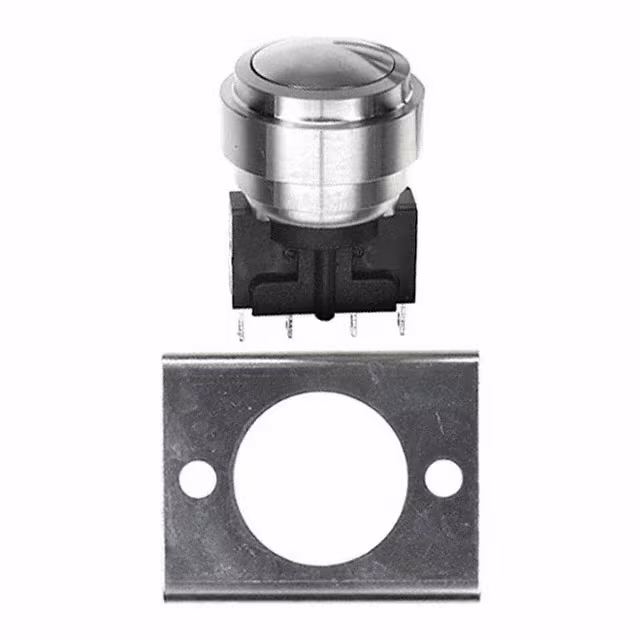

MP0034/3SWITCH PUSHBUTTON DPST 5A 250V |
2,306 |
|
Datasheet |
- | Tray | Obsolete | Panel Mount, Rear | Anti-Vandal | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC), 2A (DC) | 250 V | 28 V | Round, Button, Domed | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 18.90mm Dia | -20°C ~ 70°C |
|
|
P297EEPASWITCH PUSH DPST 5A 250V |
3,413 |
|
Datasheet |
P297 | Bulk | Obsolete | Panel Mount, Right Angle, Rear | Standard | DPST | Off-On | 5A (AC) | 250 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
|
ULP12OAP1RSSCL1BLUREDSWITCH PUSHBUTTON SPDT 0.4VA 28V |
1,147 |
|
Datasheet |
ULP | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Red | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 70°C |
|
|
0041.2301SWITCH PUSH SPST-NO 5A 250V |
2,495 |
|
Datasheet |
EMF | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 5A (AC), 200mA (DC) | 250 V | 250 V | Rectangular, Button | No Marking | - | - | - | Solder Lug | - | - | Circular - 16.20mm Dia | -40°C ~ 55°C |
|
|
0041.2302SWITCH PUSH DPST-NO 5A 250V |
4,034 |
|
Datasheet |
EMF | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-Mom | 5A (AC), 200mA (DC) | 250 V | 250 V | Rectangular, Button | No Marking | - | - | - | Solder Lug | - | - | Circular - 16.20mm Dia | -40°C ~ 55°C |
|
|
0041.2311SWITCH PUSH SPST-NO 5A 250V |
3,688 |
|
Datasheet |
EMF | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 5A (AC), 200mA (DC) | 250 V | 250 V | Square, Button | No Marking | - | - | - | Solder Lug | - | - | Circular - 16.20mm Dia | -40°C ~ 55°C |
|
|
0041.2321SWITCH PUSH SPST-NO 5A 250V |
1,338 |
|
Datasheet |
EMF | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 5A (AC), 200mA (DC) | 250 V | 250 V | Round, Button | No Marking | - | - | - | Solder Lug | - | - | Circular - 16.20mm Dia | -40°C ~ 55°C |
|
|
0041.2322SWITCH PUSH DPST-NO 5A 250V |
2,627 |
|
Datasheet |
EMF | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-Mom | 5A (AC), 200mA (DC) | 250 V | 250 V | Round, Button | No Marking | - | - | - | Solder Lug | - | - | Circular - 16.20mm Dia | -40°C ~ 55°C |
|
|
0041.2371SWITCH PUSHBUTTON SPST 5A 250V |
4,120 |
|
Datasheet |
EMF | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 5A (AC), 200mA (DC) | 250 V | 250 V | Round, Button | No Marking | - | - | - | Solder Lug | - | - | Circular - 16.20mm Dia | -40°C ~ 55°C |
