Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1571990-3SWITCH PUSH SPST-NO 0.4VA 20V |
1,826 |
|
Datasheet |
TSP | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
1-1571990-7SWITCH PUSHBUTTON SPDT 0.4VA 20V |
3,238 |
|
Datasheet |
TSP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
FP0115CAC1BFSWITCH PUSHBUTTON |
1,713 |
|
Datasheet |
FP01 | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | - | On-Off | - | - | - | Round, Button | No Marking | White | LED, Green | 2.25 VDC | Socketable | - | Photo Interrupter | Circular - 22.90mm Dia | -25°C ~ 50°C |
|
FP0115CAC1CCSWITCH PUSHBUTTON |
1,850 |
|
Datasheet |
FP01 | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | - | On-Off | - | - | - | Round, Button | No Marking | Red | LED, Red | 1.85 VDC | Socketable | - | Photo Interrupter | Circular - 22.90mm Dia | -25°C ~ 50°C |
|

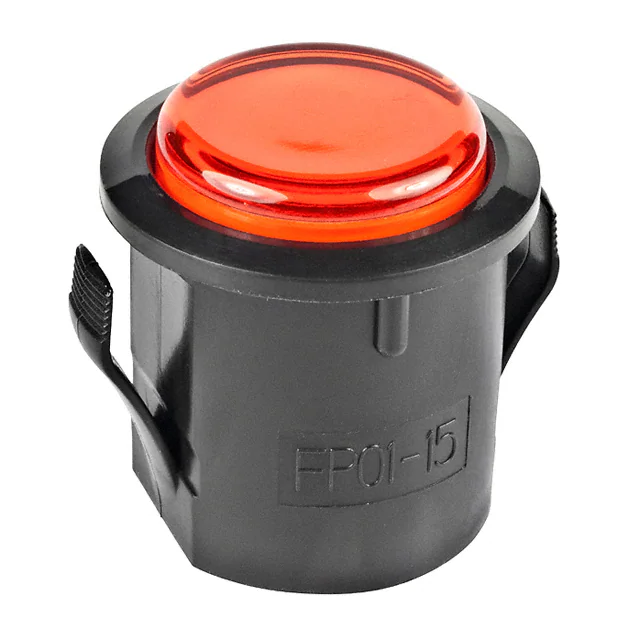

FP0115CAC1DDSWITCH PUSHBUTTON |
3,113 |
|
Datasheet |
FP01 | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | - | On-Off | - | - | - | Round, Button | No Marking | Amber | LED, Amber | 2 VDC | Socketable | - | Photo Interrupter | Circular - 22.90mm Dia | -25°C ~ 50°C |
|
|
KB16SKW01-05-FFSWITCH PUSHBUTTON SPDT 1A 125V |
1,017 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | Incandescent, Green | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
MB2011SB1W01-EFSWITCH PUSHBUTTON SPDT 6A 125V |
2,745 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MB2065SB1W01-CASWITCH PUSHBUTTON SPDT 6A 125V |
1,676 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|

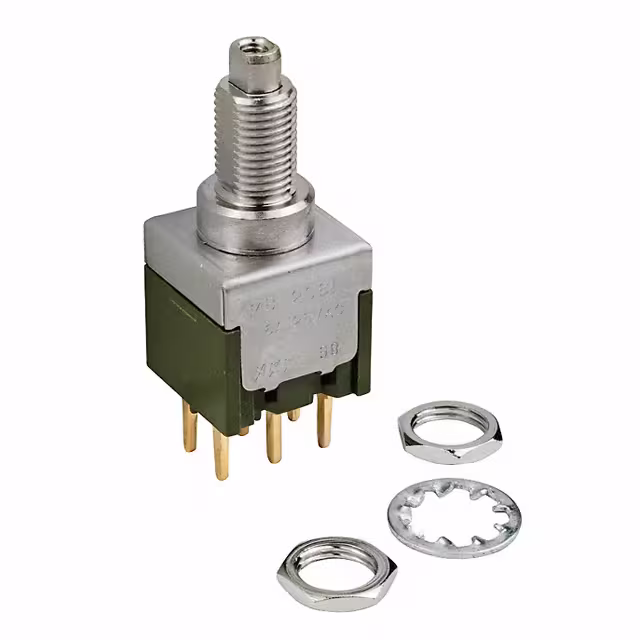

MB2061SD1A03SWITCH PUSHBUTTON DPDT 6A 125V |
3,146 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2085SS1W03-BASWITCH PUSHBUTTON DPDT 6A 125V |
1,704 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2085SS1W03-CASWITCH PUSHBUTTON DPDT 6A 125V |
2,079 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2011SB1W01-DFSWITCH PUSHBUTTON SPDT 6A 125V |
4,284 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
MB2461E1W03-HASWITCH PUSHBUTTON DPDT 3A 125V |
2,185 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2011SB1W01-CASWITCH PUSHBUTTON SPDT 6A 125V |
1,072 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
MB2061SD3W01SWITCH PUSHBUTTON DPDT 6A 125V |
1,807 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
SB25SWITCH PUSH DPDT 15A 125V |
4,819 |
|
Datasheet |
SB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 15A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
MB2085SB1W01-DASWITCH PUSHBUTTON DPDT 6A 125V |
1,674 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MB2011SB3G03-CESWITCH PUSH SPDT 0.4VA 28V |
4,915 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Yellow | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MB2085SB1W01-DCSWITCH PUSHBUTTON DPDT 6A 125V |
2,553 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MB2085SS2G30-BASWITCH PUSH DPDT 0.4VA 28V |
1,022 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
