Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19C050PA3KSENSOR 50PSIA 0.1V |
2,255 |
|
- |
19 mm | Cylinder | Bulk | Active | Board Mount | Absolute | 50PSI (344.74kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | - | No Port | Temperature Compensated | Flex Cable | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|

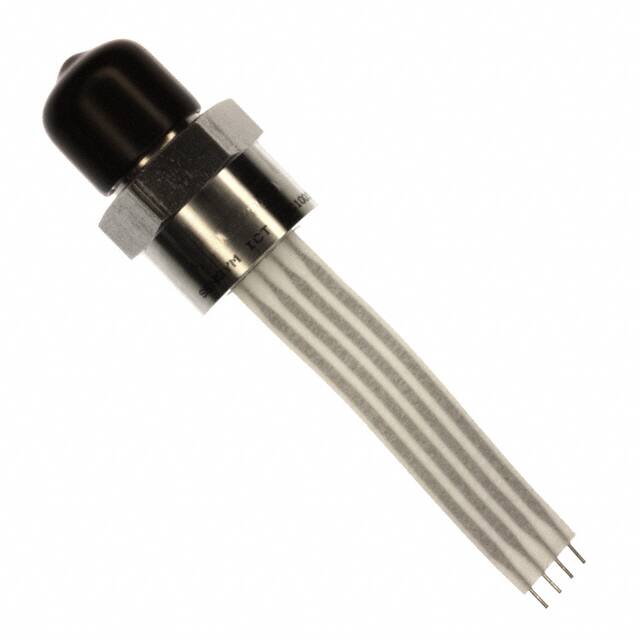

13C1000PS5KSENSOR 1000PSI 2MA |
3,075 |
|
- |
13 mm | Cylinder, Threaded | Bulk | Active | - | - | - | - | - | - | - | - | - | - | Cable with Connector | - | - | - | - | - | - |
|
|
19C030PG1KSENSOR 30PSIG 0.1V |
3,614 |
|
- |
19 mm | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C003PG4KSENSOR 3PSIG 1/8"NPT .05V |
3,846 |
|
Datasheet |
19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Vented Gauge | 3PSI (20.68kPa) | Analog Voltage | 0 mV ~ 50 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C500PG5KSENSOR 500PSIG 1/4"NPT 0.1V |
3,386 |
|
- |
19 mm | Cylinder, Threaded | Bulk | Active | - | Vented Gauge | 500PSI (3447.38kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Flex Cable | 1200PSI (8273.71kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C015PA5KSENSOR 15PSIA 1/4"NPT 0.1V |
4,394 |
|
- |
19 mm | Cylinder, Threaded | Bulk | Active | - | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Flex Cable | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
13C1000PS6KSENSOR 1000PSIS 7/16" .102V |
2,811 |
|
- |
13 mm | Cylinder, Threaded | Bulk | Active | - | Sealed Gauge | 1000PSI (6894.76kPa) | Wheatstone Bridge | 98 mV ~ 102 mV | ±0.25% | 15V | Male - 7/16" (11.11mm) UNF | Threaded | Temperature Compensated | Flex Cable | 3000PSI (20684.27kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C200PV4KSENSOR 200PSI 1/8"NPT 0.1V |
3,875 |
|
- |
19 mm | Cylinder, Threaded | Bulk | Active | - | Vacuum | -200PSI (-1378.95kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | -600PSI (-4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
13C0500PS1LSENSOR 500PSIS .102V |
1,943 |
|
- |
13 mm | Cylinder, Threaded | Bulk | Active | - | Sealed Gauge | 500PSI (3447.38kPa) | Wheatstone Bridge | 98 mV ~ 102 mV | ±0.25% | - | - | No Port | Temperature Compensated | Flex Cable | 1500PSI (10342.14kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C100PA6LSENSOR 100PSIA 7/16" 0.1V |
1,091 |
|
- |
19 mm | Cylinder, Threaded | Bulk | Active | - | Absolute | 100PSI (689.48kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | Male - 7/16" (11.11mm) UNF | Threaded | Temperature Compensated | Flex Cable | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C100PG1KSENSOR 100PSIG 0.1V |
2,624 |
|
- |
19 mm | Cylinder | Bulk | Active | - | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C005PG5LSENSOR 5PSIG 1/4"NPT 0.1V |
4,850 |
|
- |
19 mm | Cylinder, Threaded | Bulk | Active | - | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Flex Cable | 15PSI (103.42kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C050PG1KSENSOR 50PSIG 0.1V |
3,378 |
|
- |
19 mm | Cylinder | Bulk | Active | - | Vented Gauge | 50PSI (344.74kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C100PG6KSENSOR 100PSIG 7/16" 0.1V |
1,341 |
|
- |
19 mm | Cylinder, Threaded | Bulk | Active | - | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 7/16" (11.11mm) UNF | Threaded | Temperature Compensated | Flex Cable | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C003PG5LSENSOR 3PSIG 1/4"NPT 0.1V |
3,569 |
|
- |
19 mm | Cylinder, Threaded | Bulk | Active | - | Vented Gauge | 3PSI (20.68kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Flex Cable | 9PSI (62.0528kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C300PG6KSENSOR 300PSIG 7/16" 0.1V |
4,825 |
|
- |
19 mm | Cylinder, Threaded | Bulk | Active | - | Vented Gauge | 300PSI (2068.43kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 7/16" (11.11mm) UNF | Threaded | Temperature Compensated | Flex Cable | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C300PA1KSENSOR 300PSIA 0.1V |
4,416 |
|
- |
19 mm | Cylinder | Bulk | Active | - | Absolute | 300PSI (2068.43kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C500PA6LSENSOR 500PSIA 7/16" 0.1V |
2,608 |
|
- |
19 mm | Cylinder, Threaded | Bulk | Active | - | Absolute | 500PSI (3447.38kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | Male - 7/16" (11.11mm) UNF | Threaded | Temperature Compensated | Flex Cable | 1200PSI (8273.71kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C050PV4KSENSOR 50PSI 1/8"NPT 0.1V |
2,793 |
|
- |
19 mm | Cylinder, Threaded | Bulk | Active | - | Vacuum | -50PSI (-344.74kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | -150PSI (-1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C015PA1LSENSOR 15PSIA 0.1V |
1,139 |
|
- |
19 mm | Cylinder | Bulk | Active | - | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
